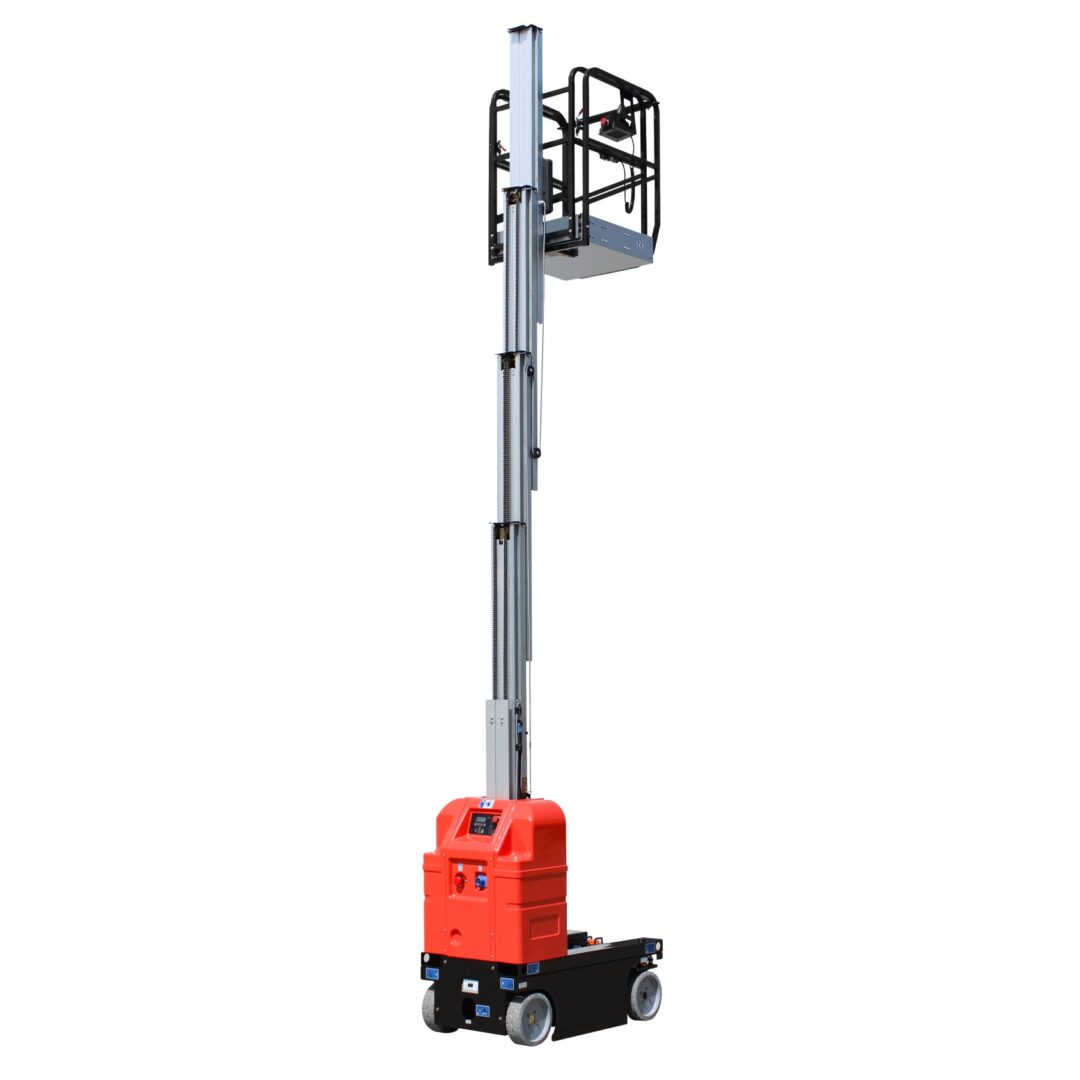

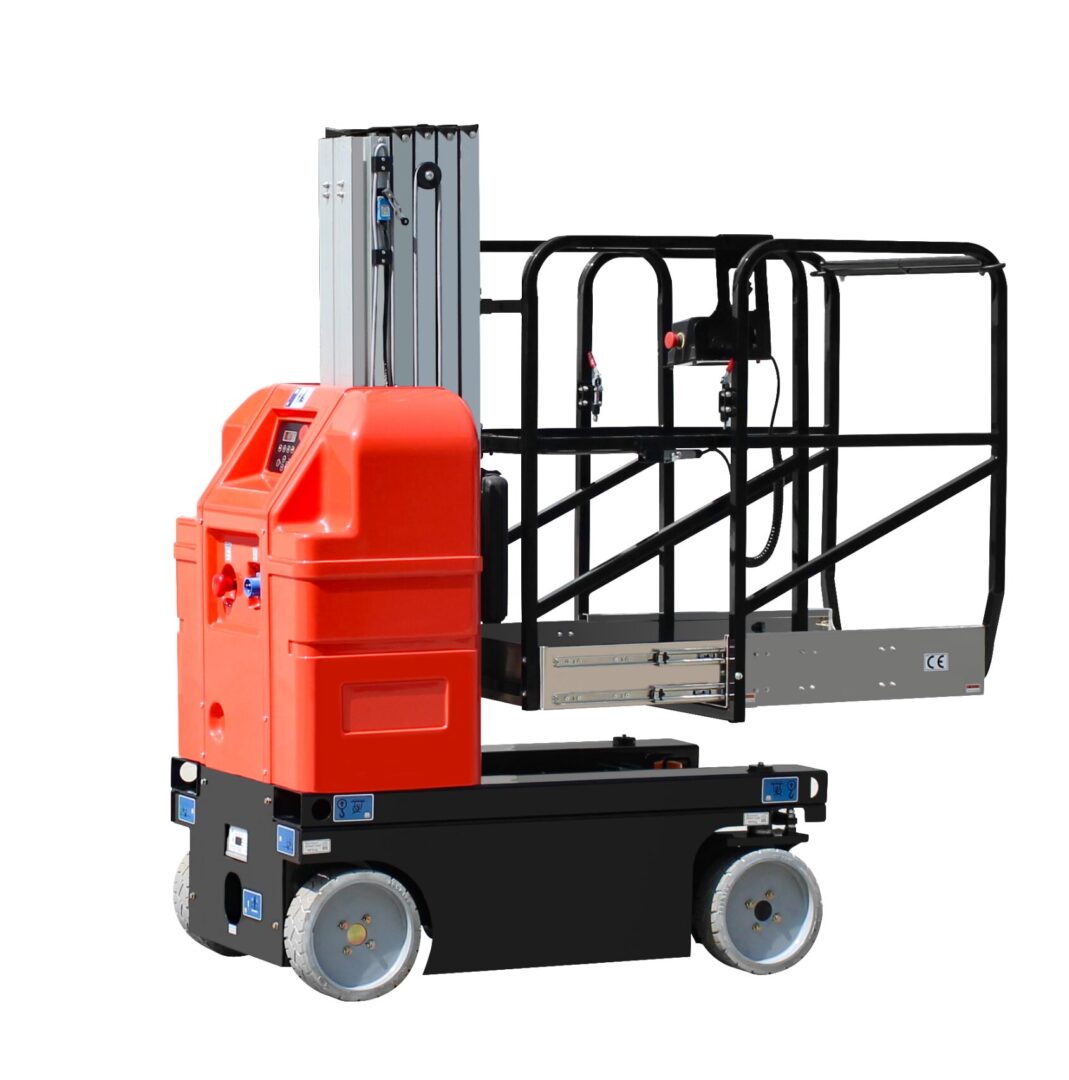

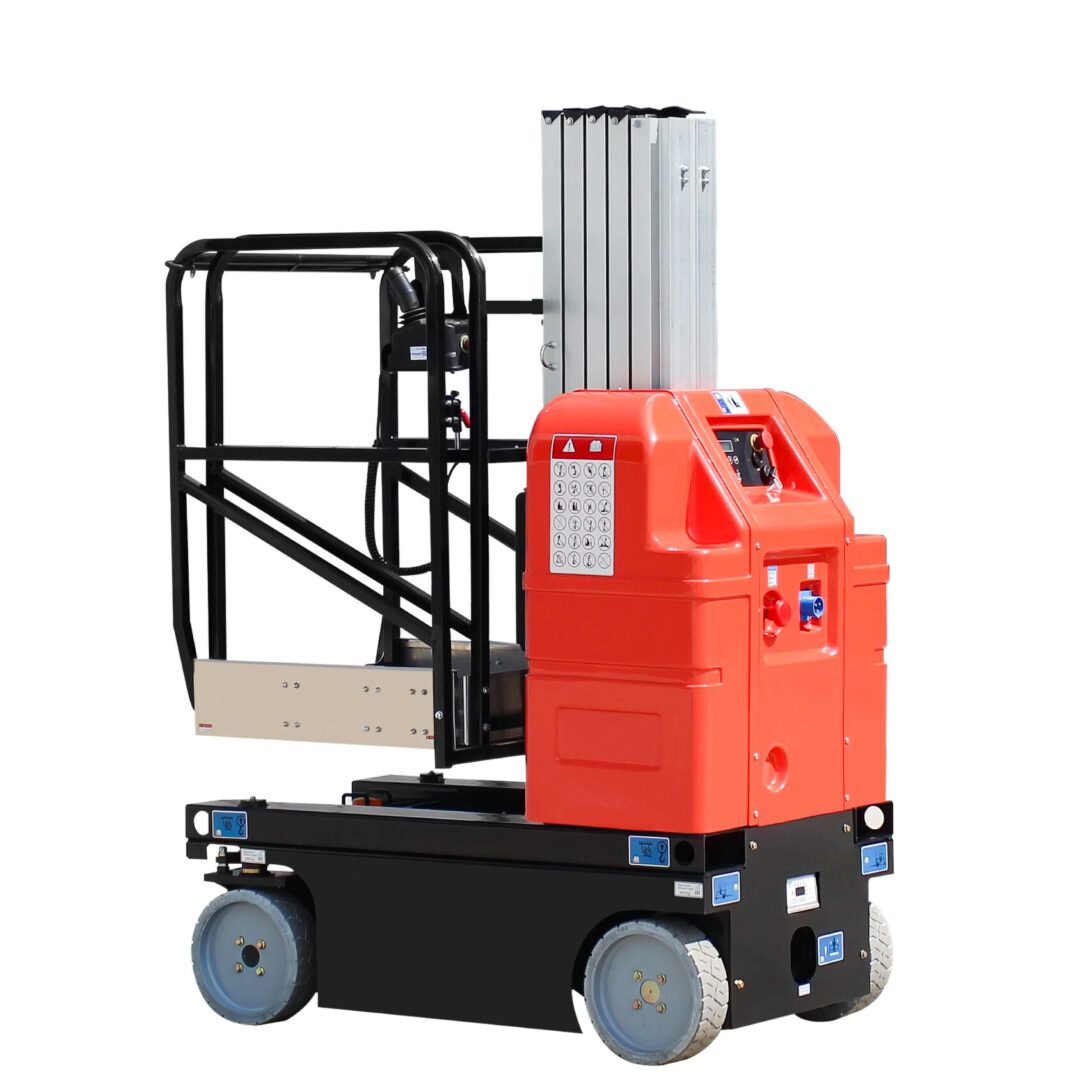

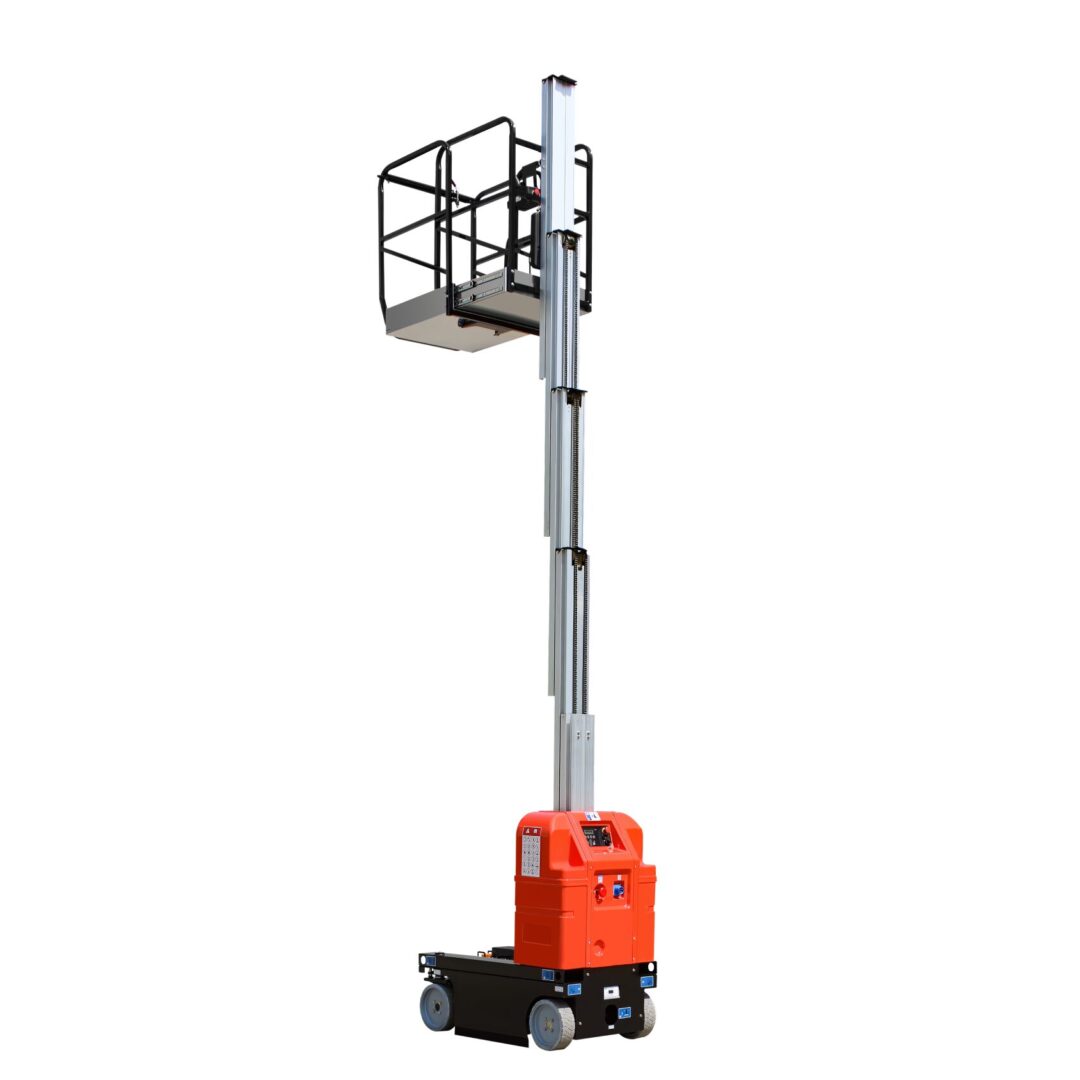

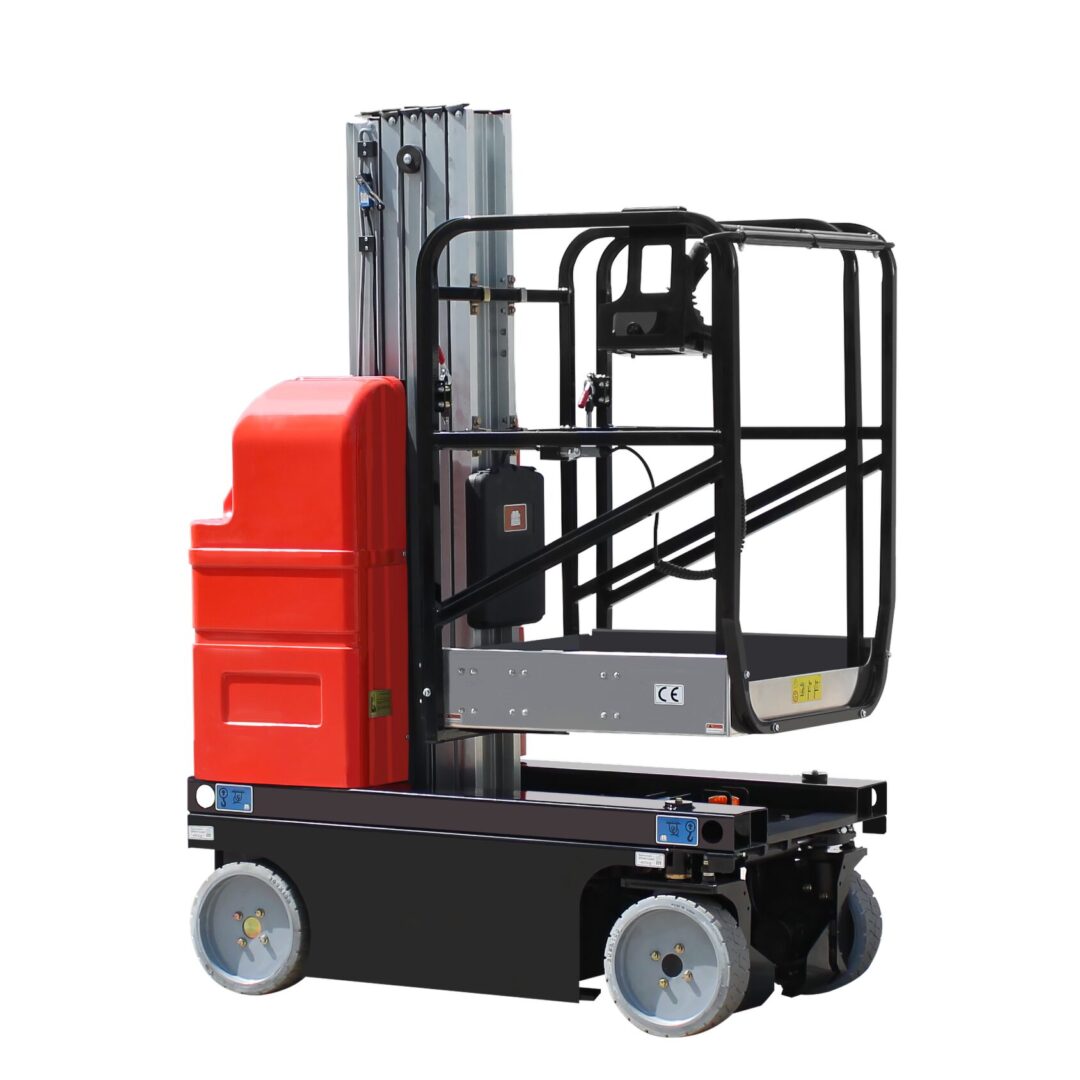

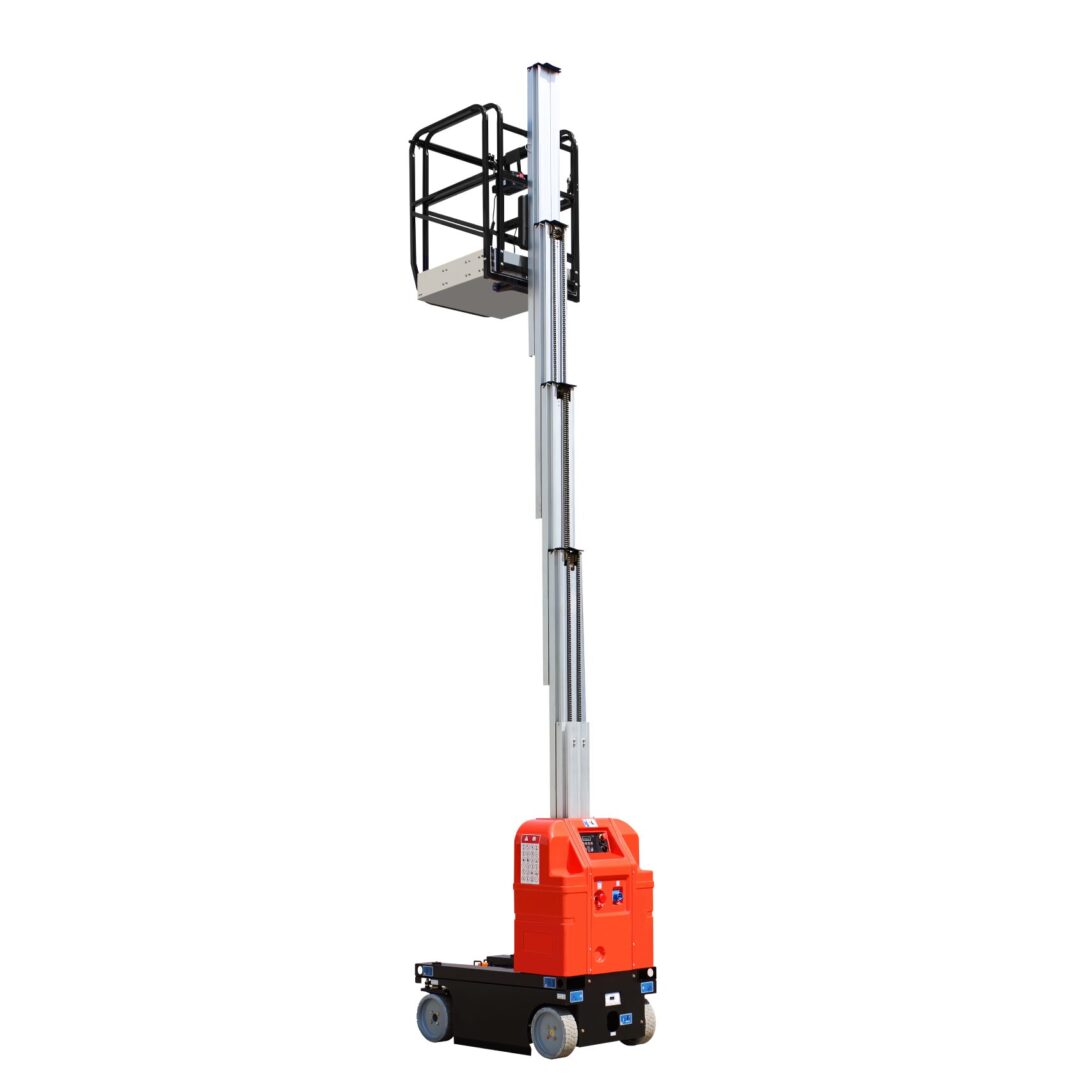

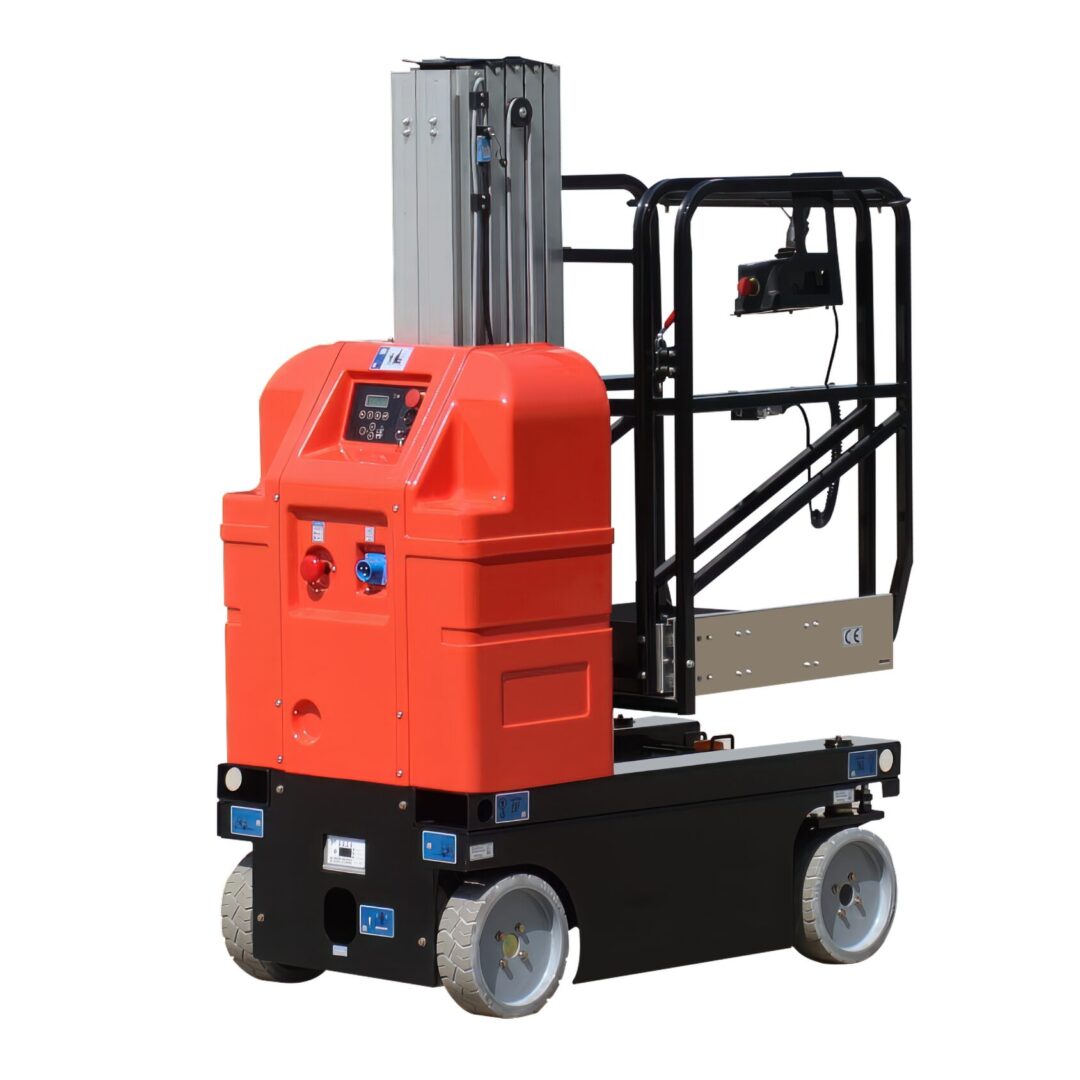

A single mast aluminum lift is the most compact type of self-propelled aerial work platform. The GTJZ-LD series combines a lightweight aluminum mast with battery-powered drive, making it ideal for indoor maintenance in tight spaces. With a working height of 8.00 m to 9.50 m and a chassis width of only 0.78 m, this single mast aluminum lift passes easily through standard doorways, elevators, and narrow aisles.
Product and technical features:
1. Self-Leveling Chain System
Self-leveling twin-chain design with anti-detachment block ensures even load distribution and safe operation.
2. Triple Safety Protection
Pothole protection, tilt sensor, and anti-collision warning light keep the platform stable and secure at height — operation stops automatically if tilt exceeds the safe angle.
3. Emergency Descent & Height Modes
Manual emergency descent allows the platform to lower slowly in case of power loss; indoor/outdoor height modes provide safer operation in different environments.
4. Heavy-Duty Hydraulic System
Fully immersed, one-piece welded cylinder eliminates leakage and internal corrosion, with an oil tray for extra protection.
5. Easy Maintenance Design
Swing-open covers on both sides and a distributed layout put batteries, counterweights, and the power unit within easy reach for quick inspection and service.
6. Built for Narrow Spaces
Compact 0.78 m chassis with bumper strips and non-marking tyres moves through tight aisles and doorways without damaging floors.
7. Transport-Friendly
Standard forklift pockets simplify loading, unloading, and shipping while reducing transport risk.
8. Smart Upper Control
Optional upper control socket powers electric tools at height; ECU panel displays overload status with self-resetting switches; fixed handle prevents sliding during operation.
| SELF-PROPELLEDVERTICAL LIFT | ||
| MODEL | GTJZ08LD | GTJZ10LD |
| Max.Working Height | 8.00m | 9.50m |
| Max.Platform Height | 6.80m | 7.50m |
| Loading Capacity | 160kg | 125kg |
| Occupants | 1 | 1 |
| OverallLength | 1.40m | 1.40m |
| Overall Width | 0.78m | 0.78m |
| Overall Height | 1.99m | 1.99m |
| Platform Dimension | 0.66m×0.67m | 0.66m×0.67m |
| Wheel Base | 1.075m | 1.075m |
| Turning Radius | 0.3m | 0.3m |
| Travel Speed(Stowed) | 3km/h | 3km/h |
| Travel Speed(Raised) | 0.8km/h | 0.8km/h |
| Up/Down Speed | 22/20sec | 28/22sec |
| Gradeability | 25% | 25% |
| Drive Tyres | Φ305×100mm | Φ305×100mm |
| Drive Motors | 2×24VDC/0.5kW | 2×24VDC/0.5kW |
| Lifting Motor | 24VDC/2kW | 24VDC/2kW |
| Battery | 24V/100Ah | 24V/100Ah |
| Charger | 24V/15A | 24V/15A |
| Weight | 1160kg | 1280kg |

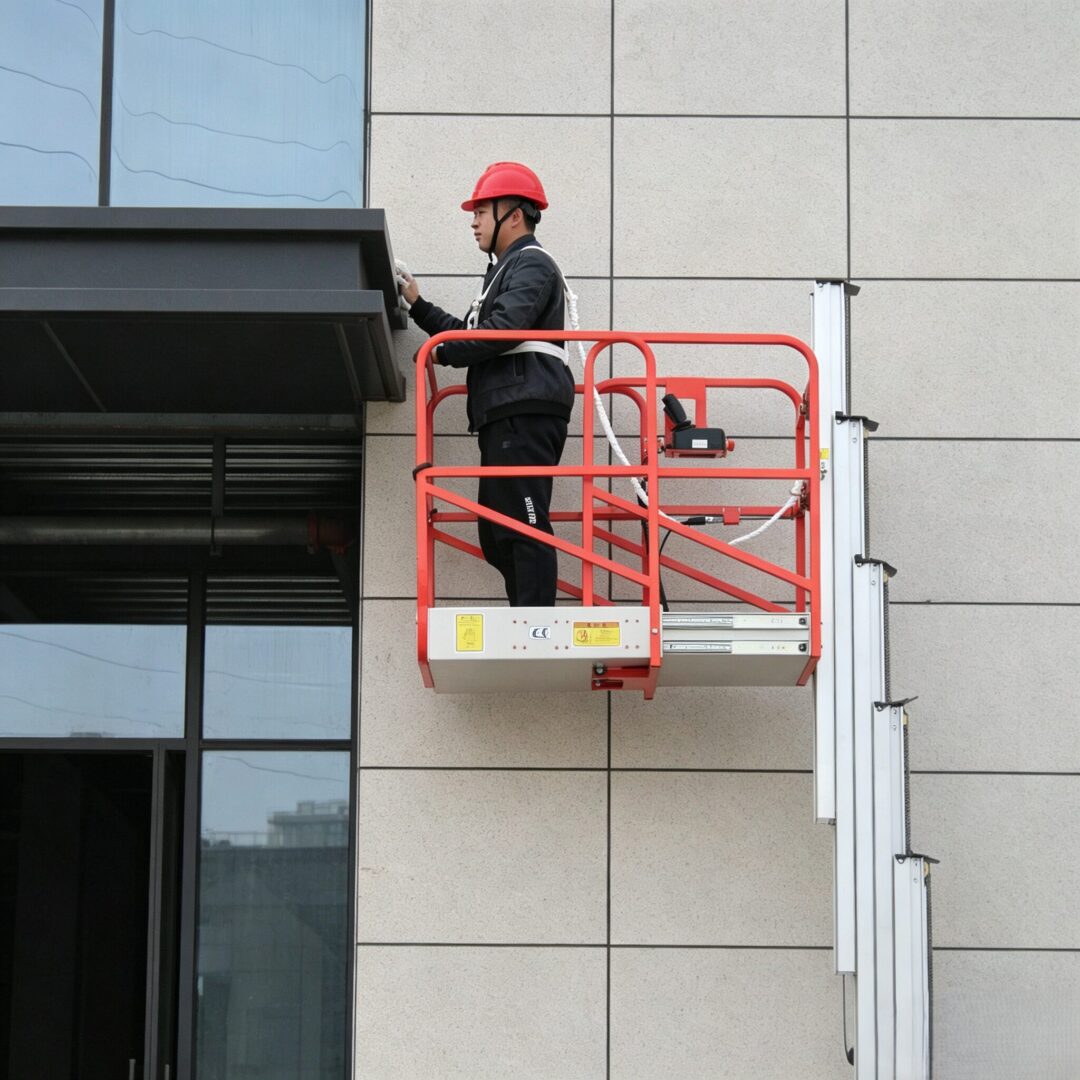

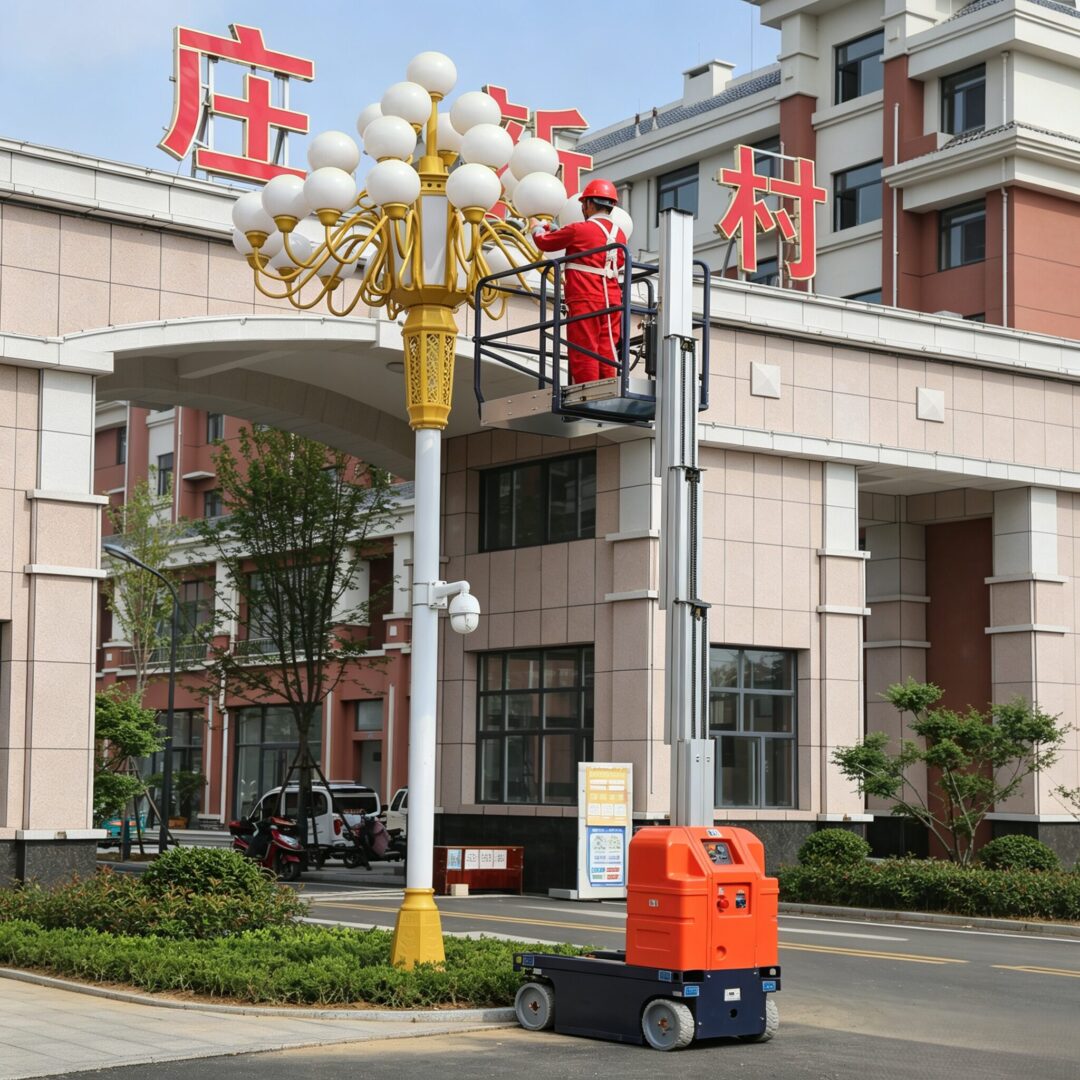

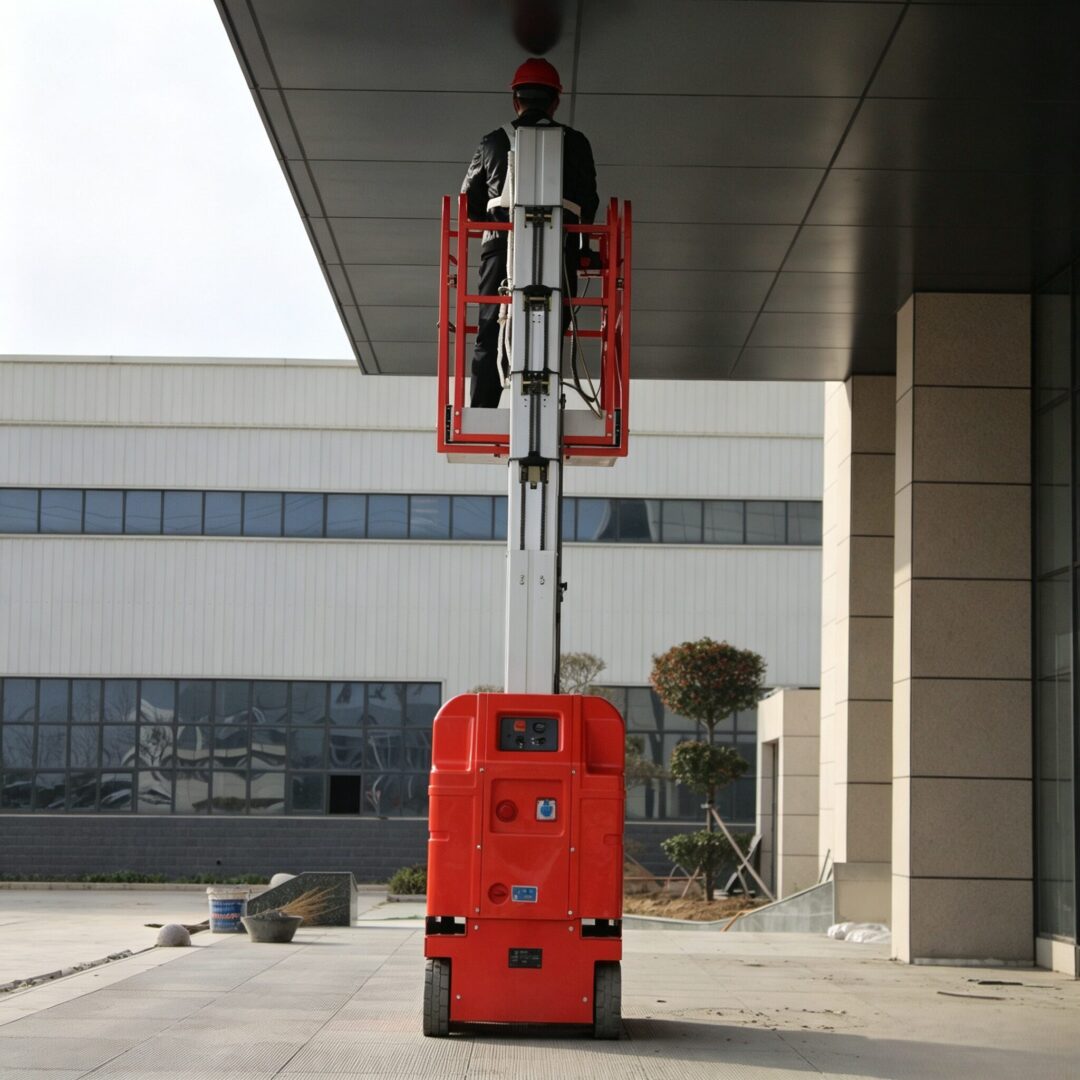

The single mast aluminum lift is designed for indoor vertical access in confined spaces. Its lightweight aluminum mast, battery-powered drive, and compact 0.78 m chassis make it ideal for working in buildings where larger equipment cannot enter.
Main Applications:
1、Office building ceiling, lighting, and HVAC maintenance — the narrow chassis moves easily through corridors, meeting rooms, and elevators
2、Shopping mall signage, decoration, and lighting installation — quiet battery drive works without disrupting shoppers during business hours

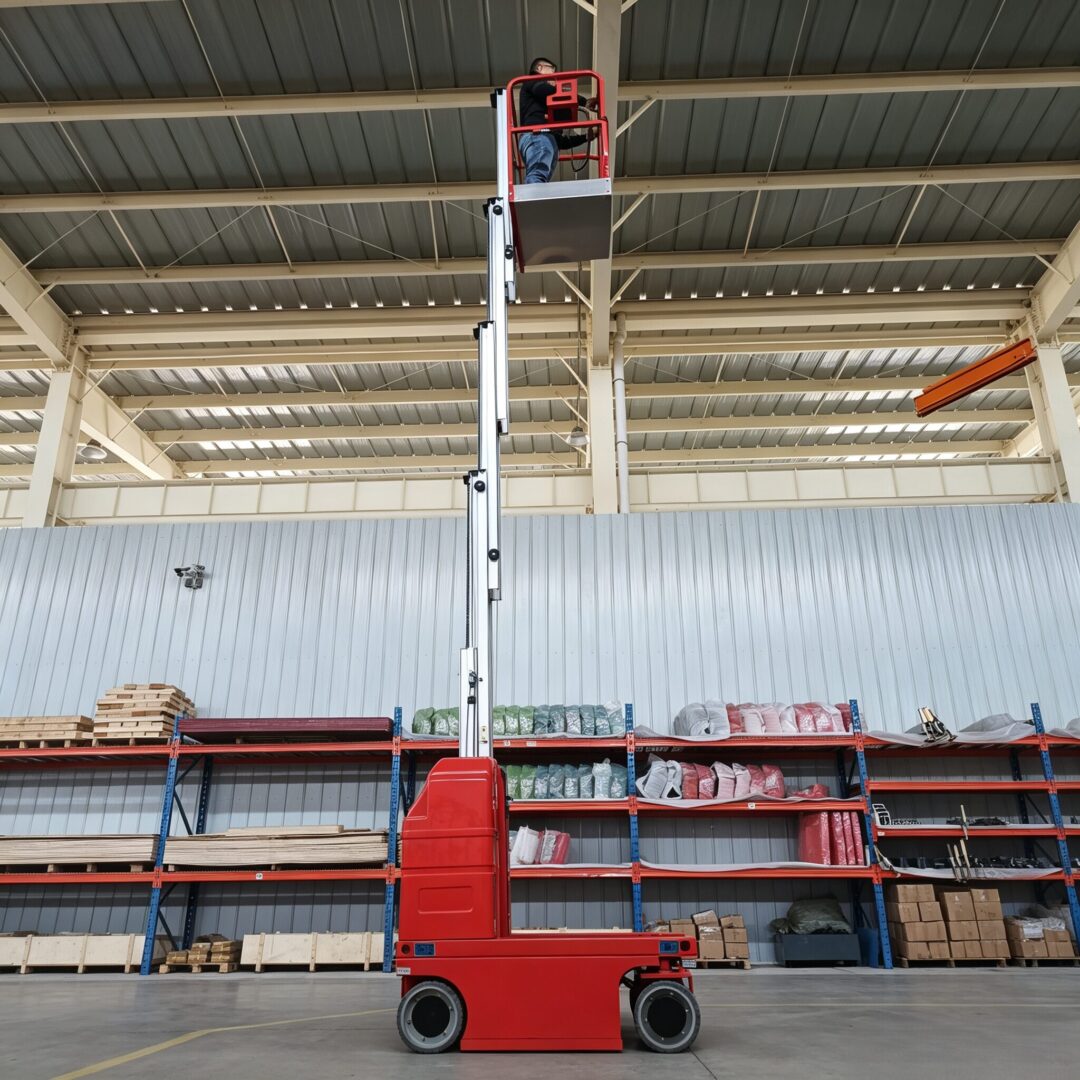

3、Warehouse rack inspection, inventory access, and conveyor maintenance — compact footprint fits narrow aisles between storage racks
4、Hospital and hotel facility repairs — zero-emission, low-noise operation is safe in occupied, sensitive environments
5、Clean room and data center access work — non-marking tyres and low floor load protect sensitive flooring
6、Retail store fixture installation and cleaning — lightweight aluminum mast is easy to maneuver in tight sales areas
7、School and university campus maintenance — safe, quiet access for auditoriums, gyms, and classrooms
8、Exhibition centers and convention halls — fast, flexible access for lighting, signage, and rigging work
