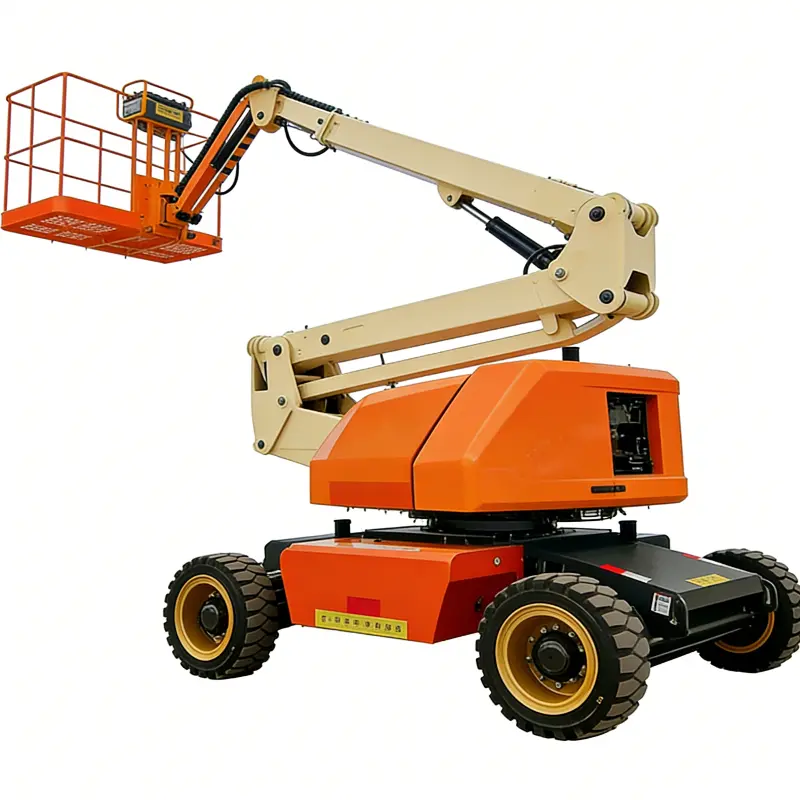

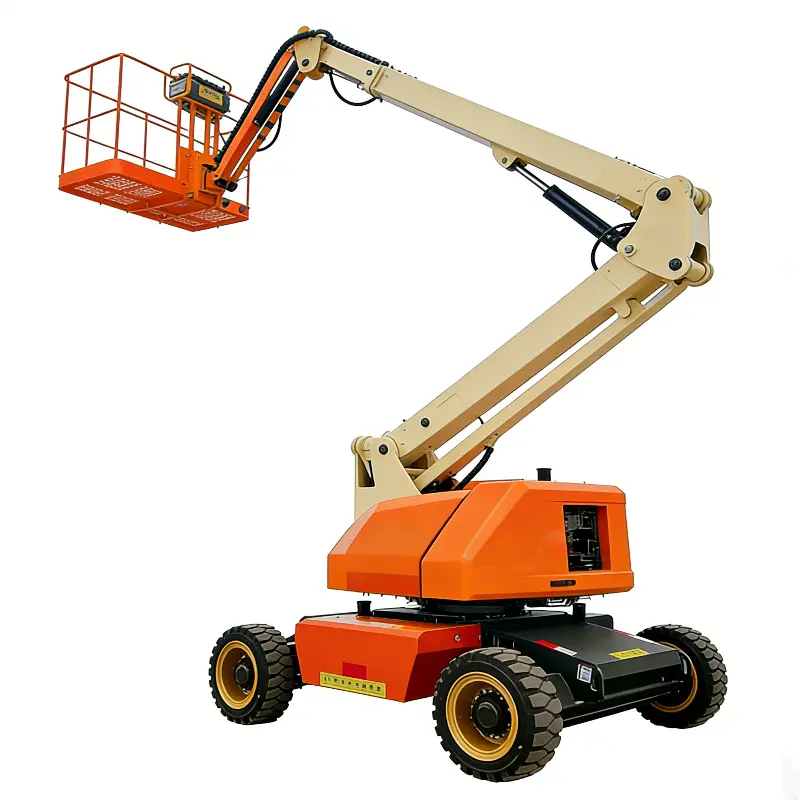

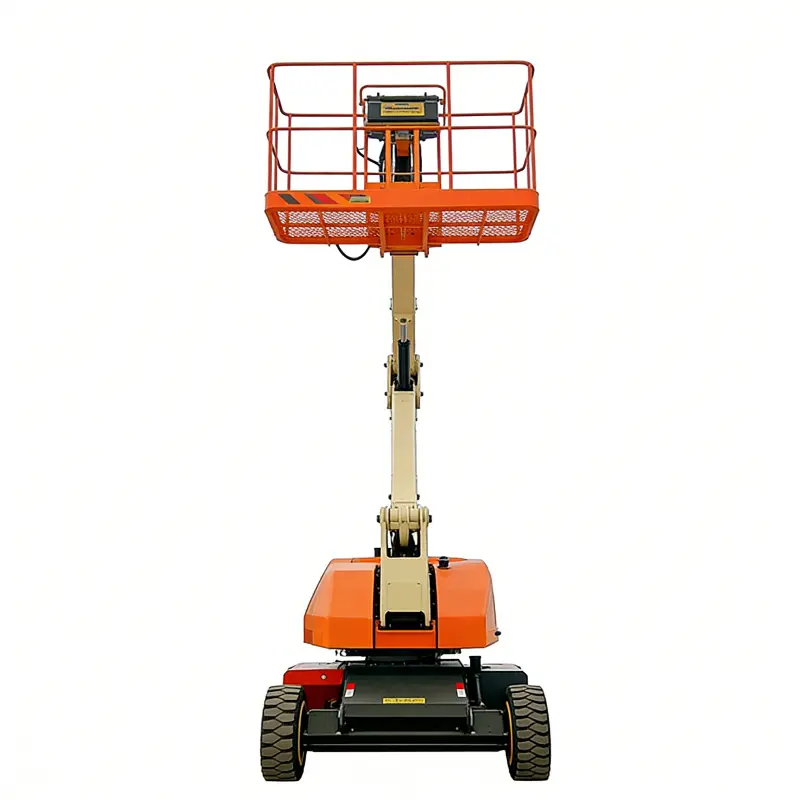

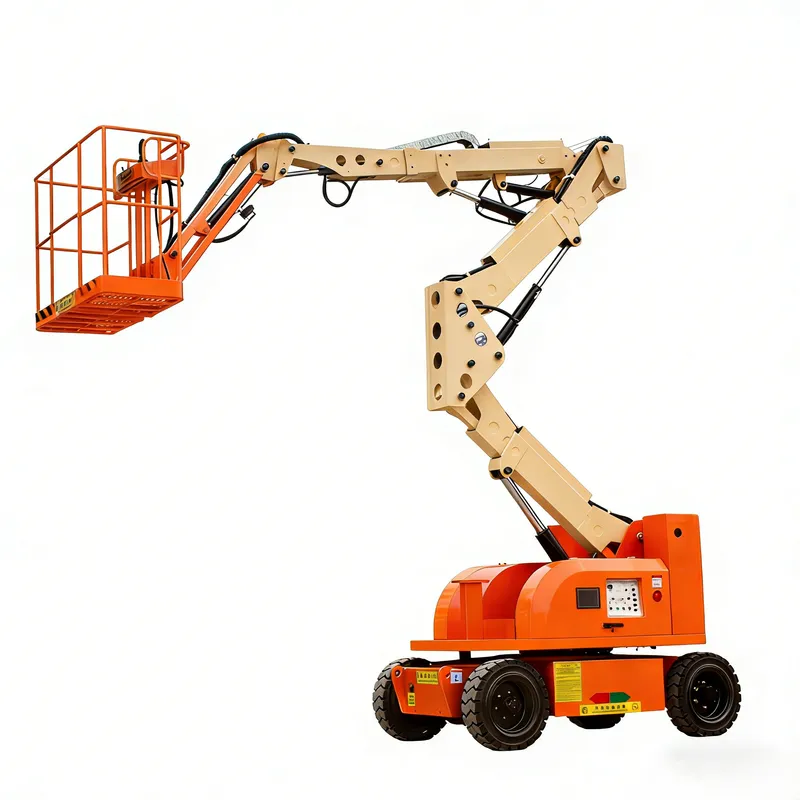

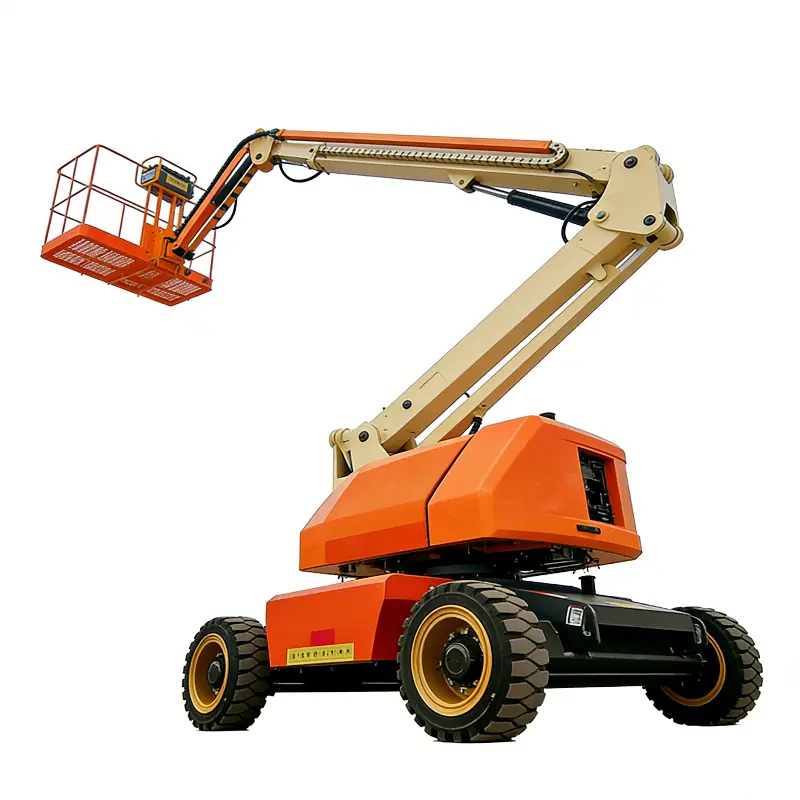

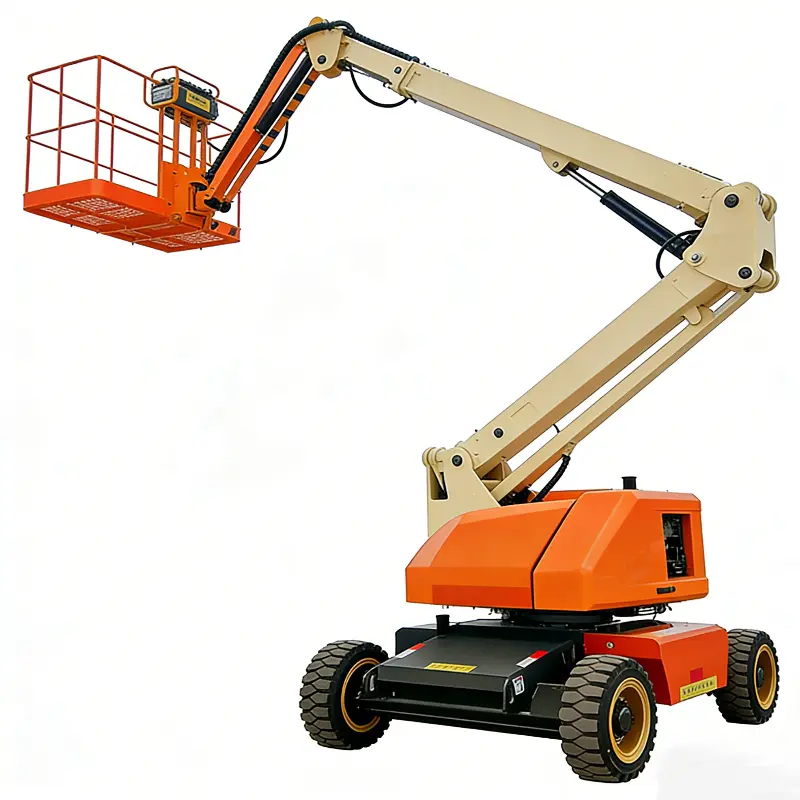

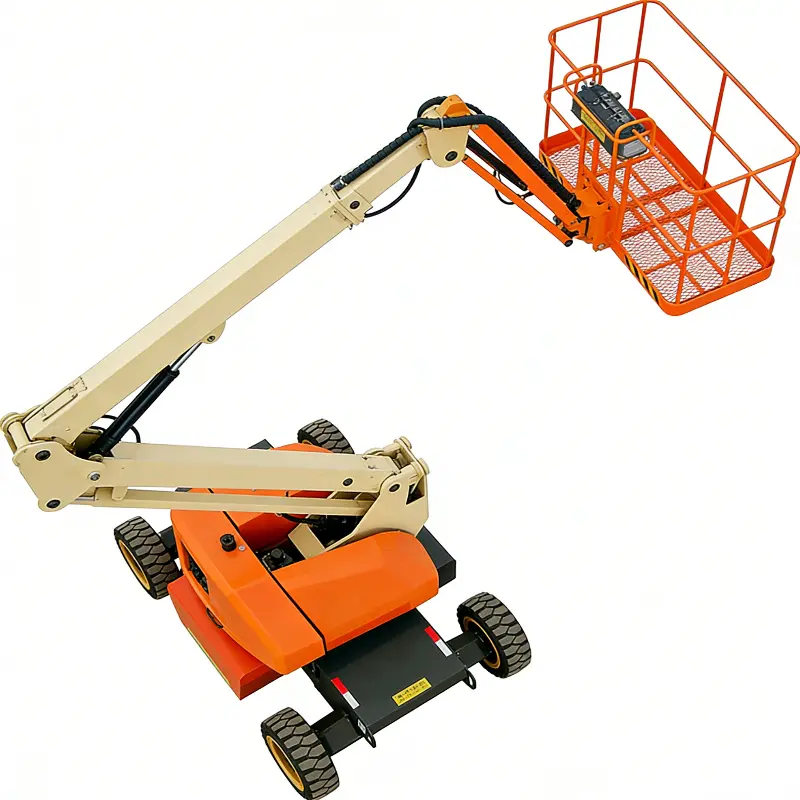

Articulating boom lifts feature multi-jointed arms, allowing operators to reach up, over, and around obstacles with precision. Ideal for complex working environments requiring flexible access.
Product and technical features:
1、Large-range Obstacle-crossing Operation
2、Continuous Rotation Operation at 360 Degrees
3、Adopts a 48V combined battery pack to provide longer endurance

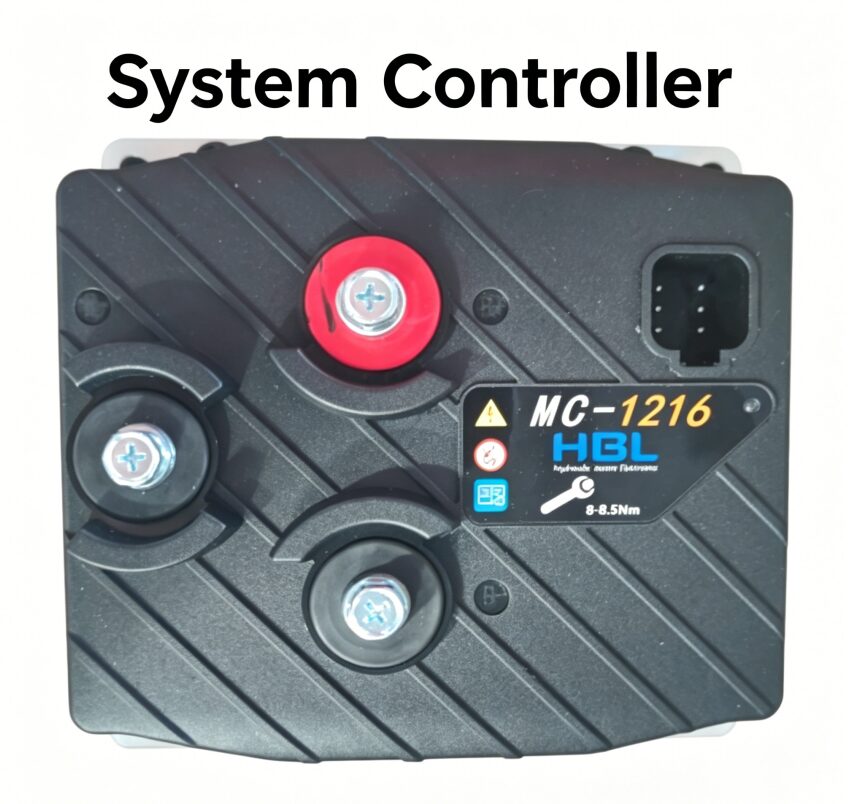

4、Full-proportion distributed control for more flexible operation and adaptation to various complex working environments
5、Dual power options of battery/diesel engine to meet different usage environments
6、Advanced turning drive technology in the industry, with a smaller turning radius, flexible and maneuverable
7、Advanced two-wheel/four-wheel drive technology, with strong power and high climbing ability
| Item | TBL-8A | TBL-10A | TBL-12A | TBL-14A | TBL-16A | TBL-18A | TBL-20A |
| Working Height 10 m | Working Height 12 m | Working Height 14 m | Working Height 16 m | Working Height 18 m | Working Height 20 m | Working Height 22 m | |
| PERFORMANCE | |||||||
| Max. Working Height | 10 m | 12 m | 14 m | 16 m | 18 m | 20 m | 22 m |
| Max. Platform Height | 8 m | 10 m | 12 m | 14 m | 16 m | 18 m | 20 m |
| Max. Working Radius | 5.3 m | 5.8 m | 6.9 m | 8 m | 8.9 m | 10.6 m | 11.7 m |
| Platform Capacity | 230 kg | 230 kg | 230 kg | 230 kg | 230 kg | 230 kg | 230 kg |
| Platform Size | 1.53×0.8 m | 1.53×0.8 m | 1.53×0.8 m | 1.53×0.8 m | 1.8×0.8 m | 1.8×0.8 m | 1.8×0.8 m |
| Max. Occupants | 2 persons | ||||||
| DIMENSIONS & WEIGHT | |||||||
| Overall Size (L×W×H, Stowed) | 5.2×1.65×2.35 m | 5.5×1.65×2.35 m | 6.3×1.78×2.35 m | 7.0×1.93×2.35 m | 7.18×2.18×2.55 m | 8.35×2.2×2.55 m | 8.86×2.25×2.55 m |
| Total Weight | 4,900 kg | 5,800 kg | 6,596 kg | 6,900 kg | 8,550 kg | 9,200 kg | 11,000 kg |
| Travel Speed (Stowed) | 4 km/h | ||||||
| Gradeability | 25% | ||||||
| Tire Specification | 28×9-15 Solid Tire | ||||||
| Drive | Electric/Diesel | ||||||

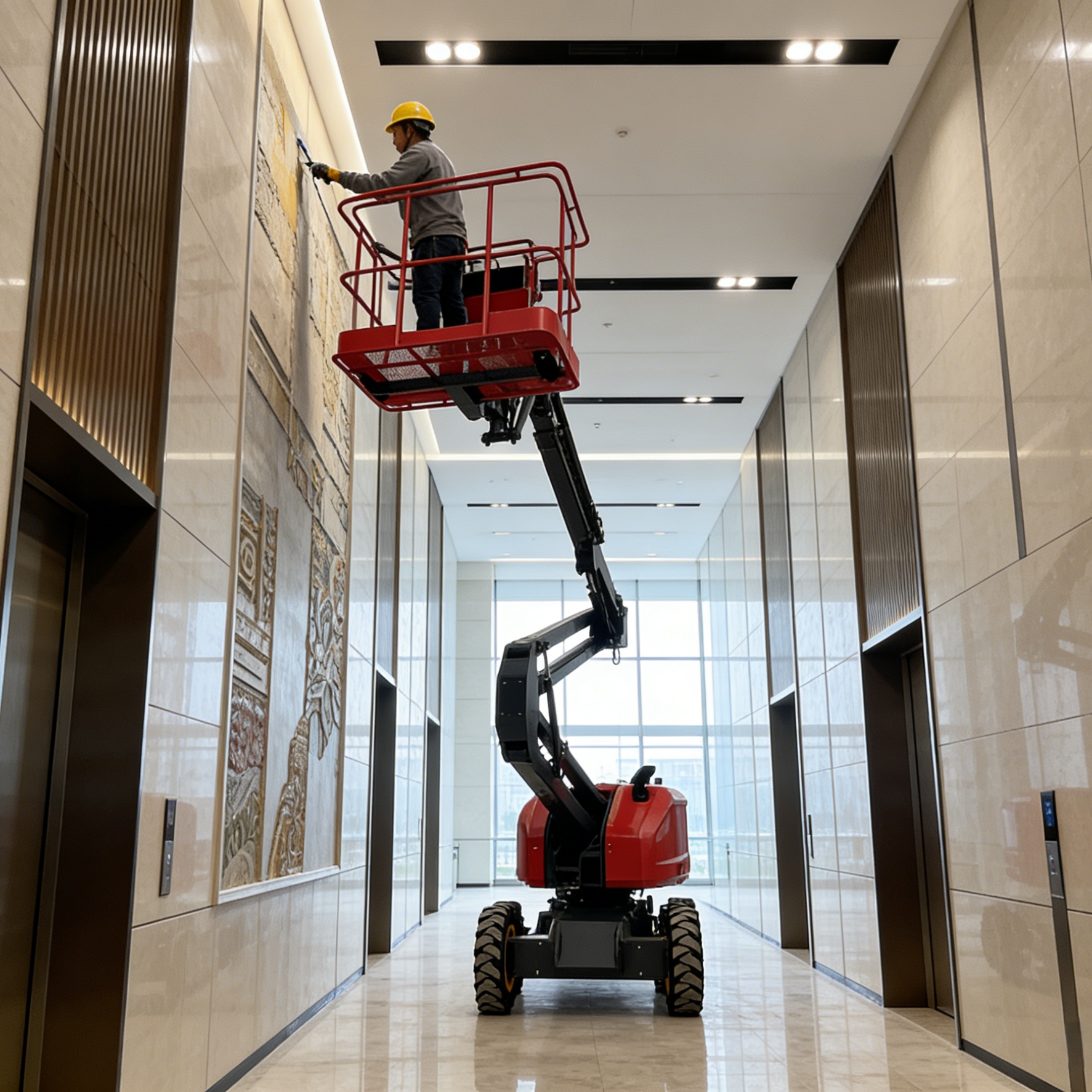

1.Construction industry（Main construction works: curtain wall installation, exterior wall painting, roof repair, and steel structure welding）

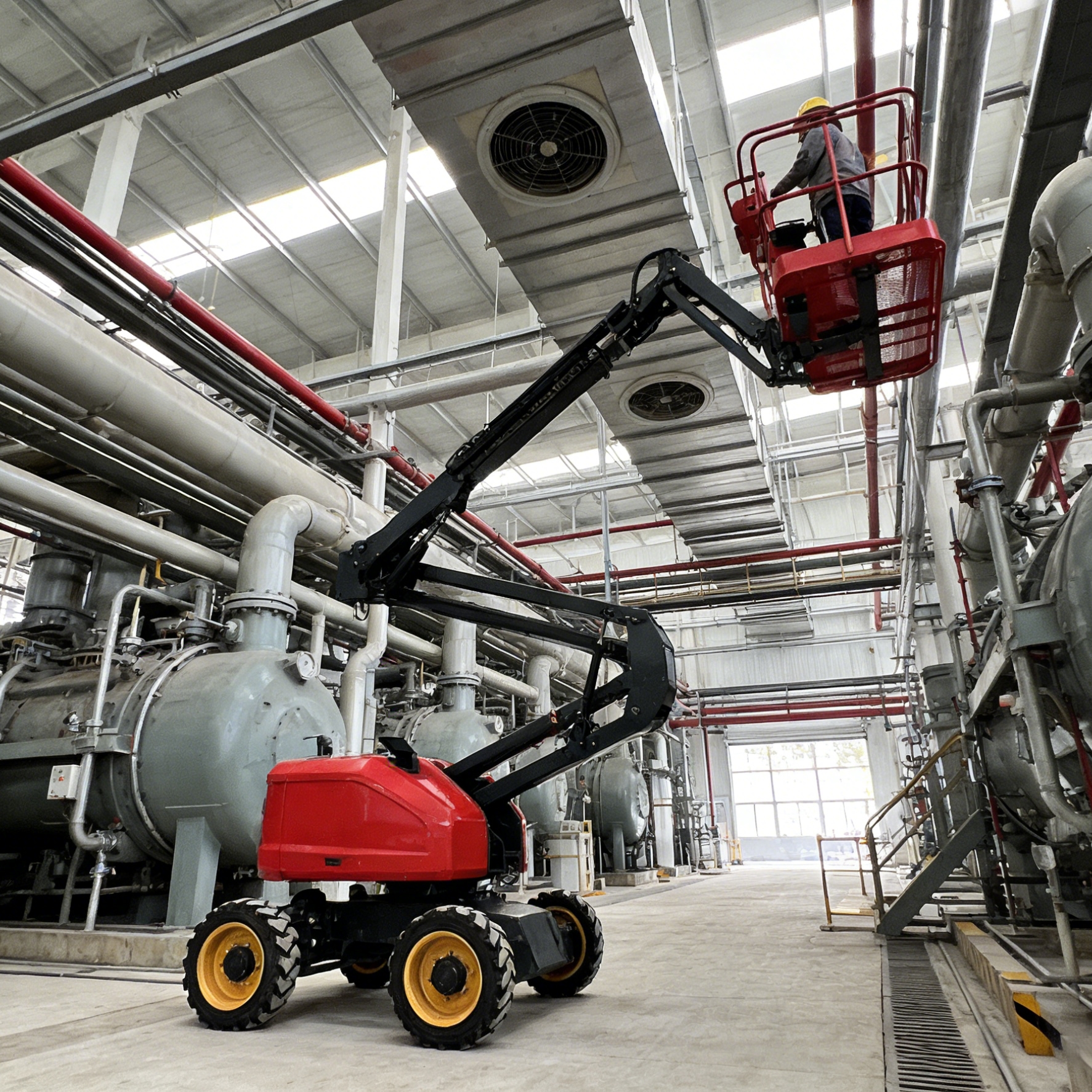

2.Industrial manufacturing and maintenance
（Factory equipment maintenance: Installation, repair, and maintenance of large machinery, pipelines, and ventilation systems in the workshop.）

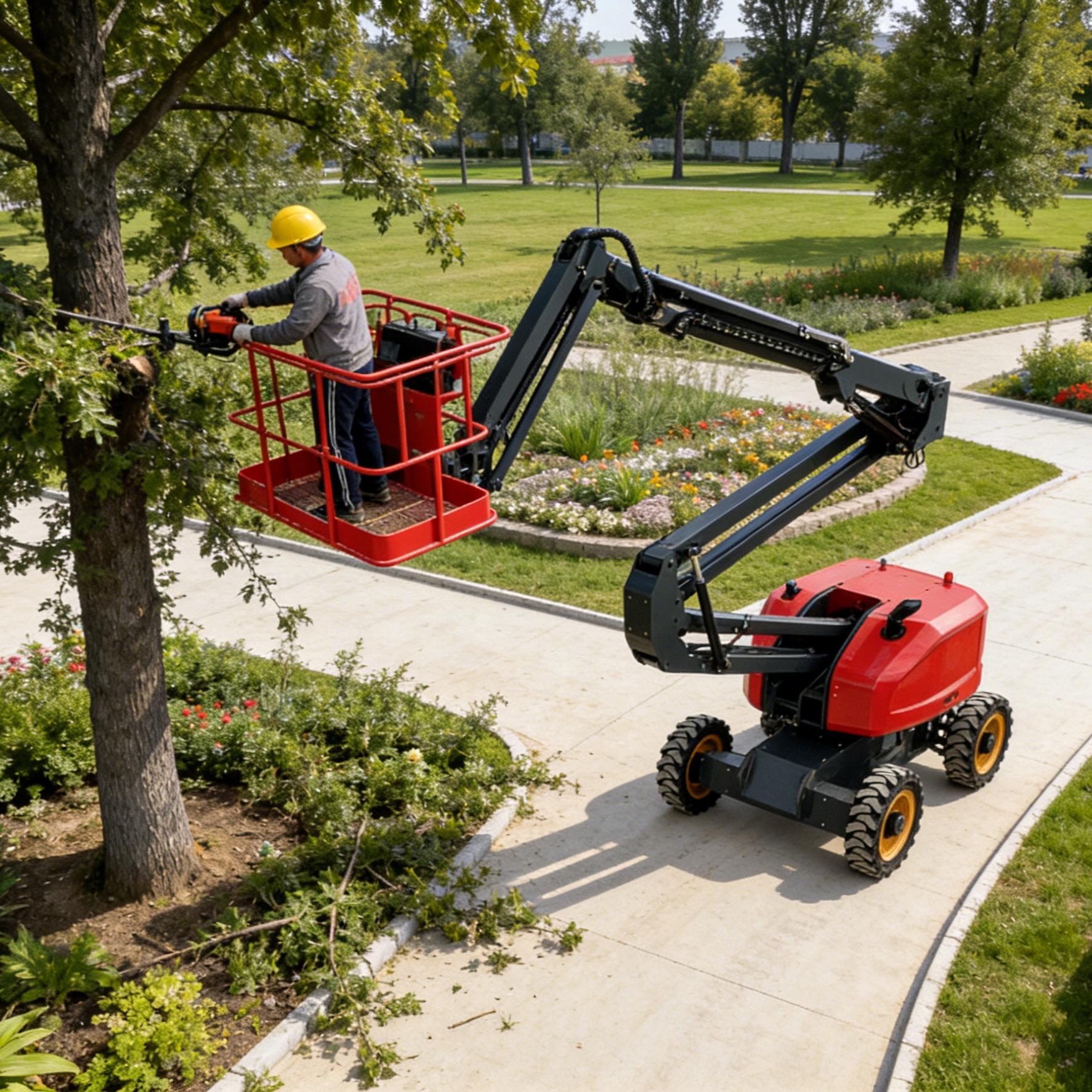

3.Municipal and public facilities sector
（Municipal maintenance: road lighting repair, traffic signal light adjustment, and installation and maintenance of municipal pipelines.）

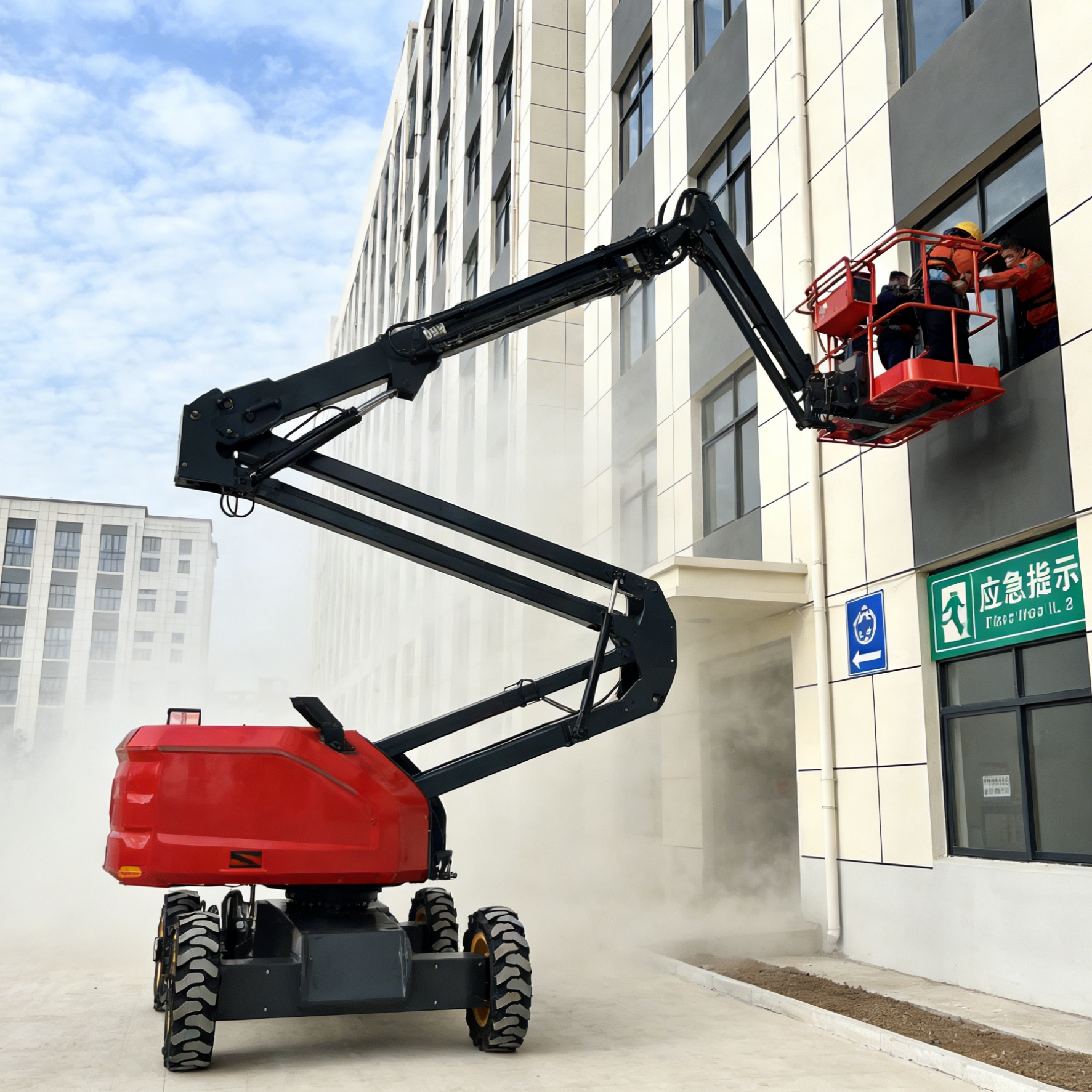

4.Other specialized fields（Emergency rescue: high-altitude rescue, auxiliary operations at fire scenes, and evacuation of people trapped in buildings. The flexible operating angles can adapt to complex rescue scenarios.）
