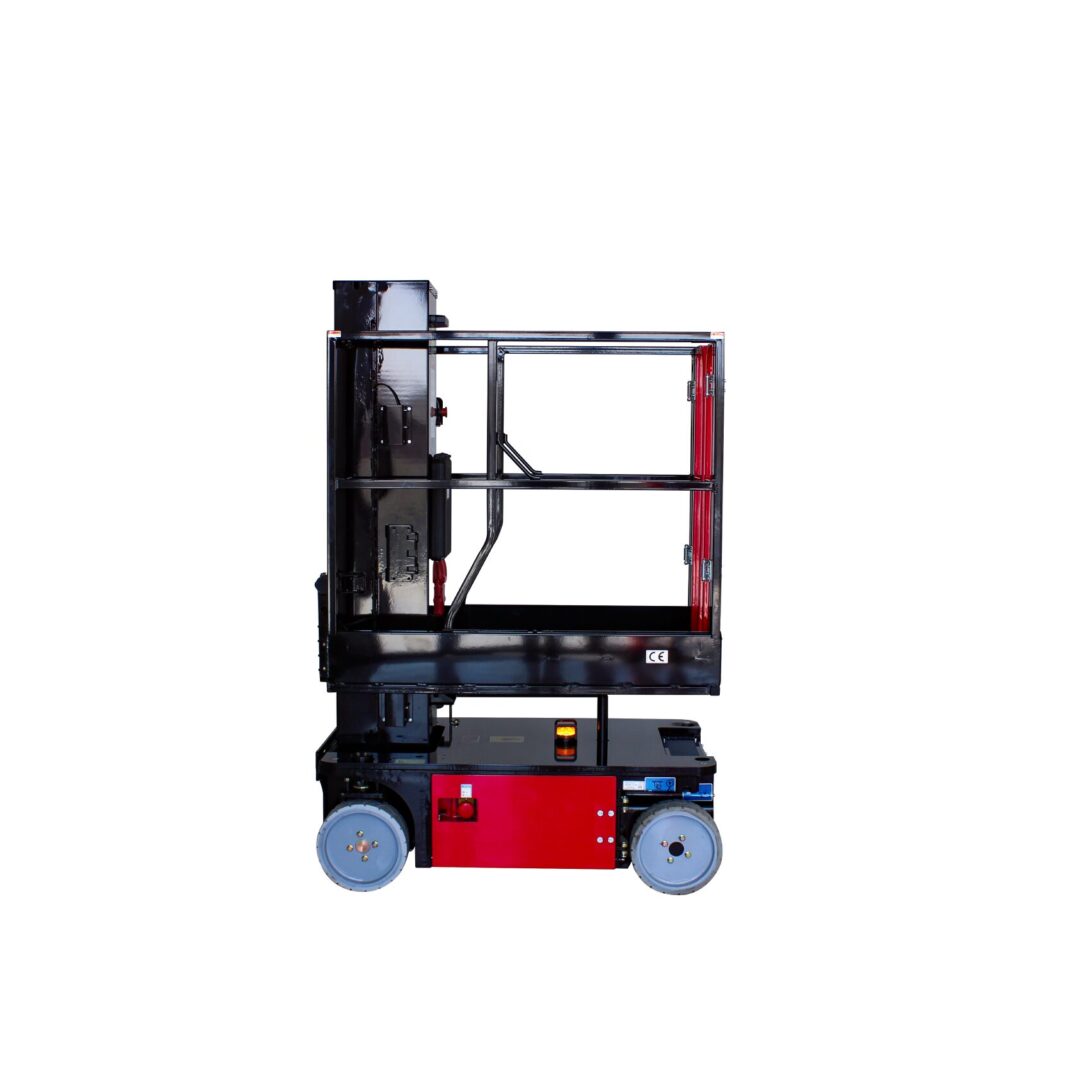

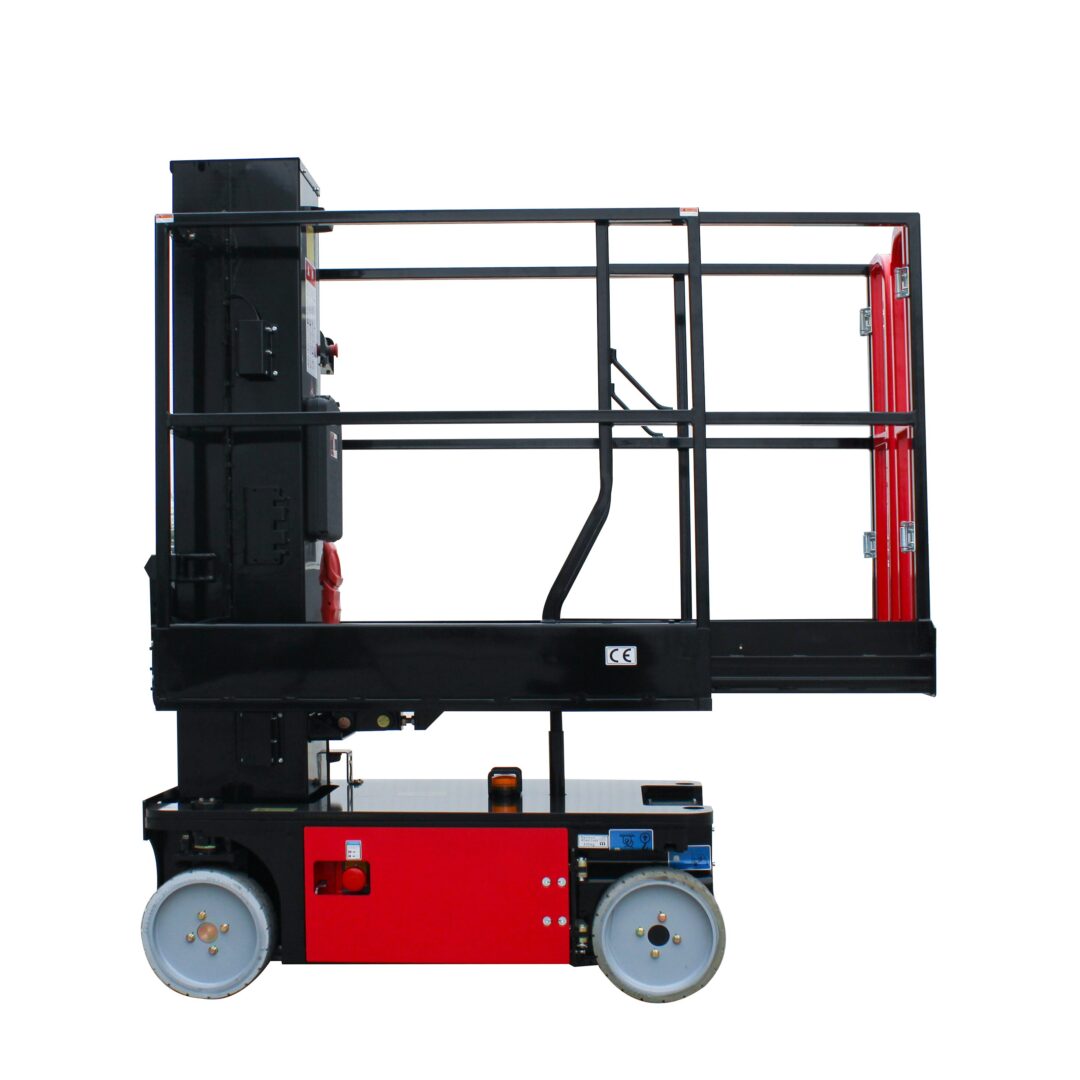

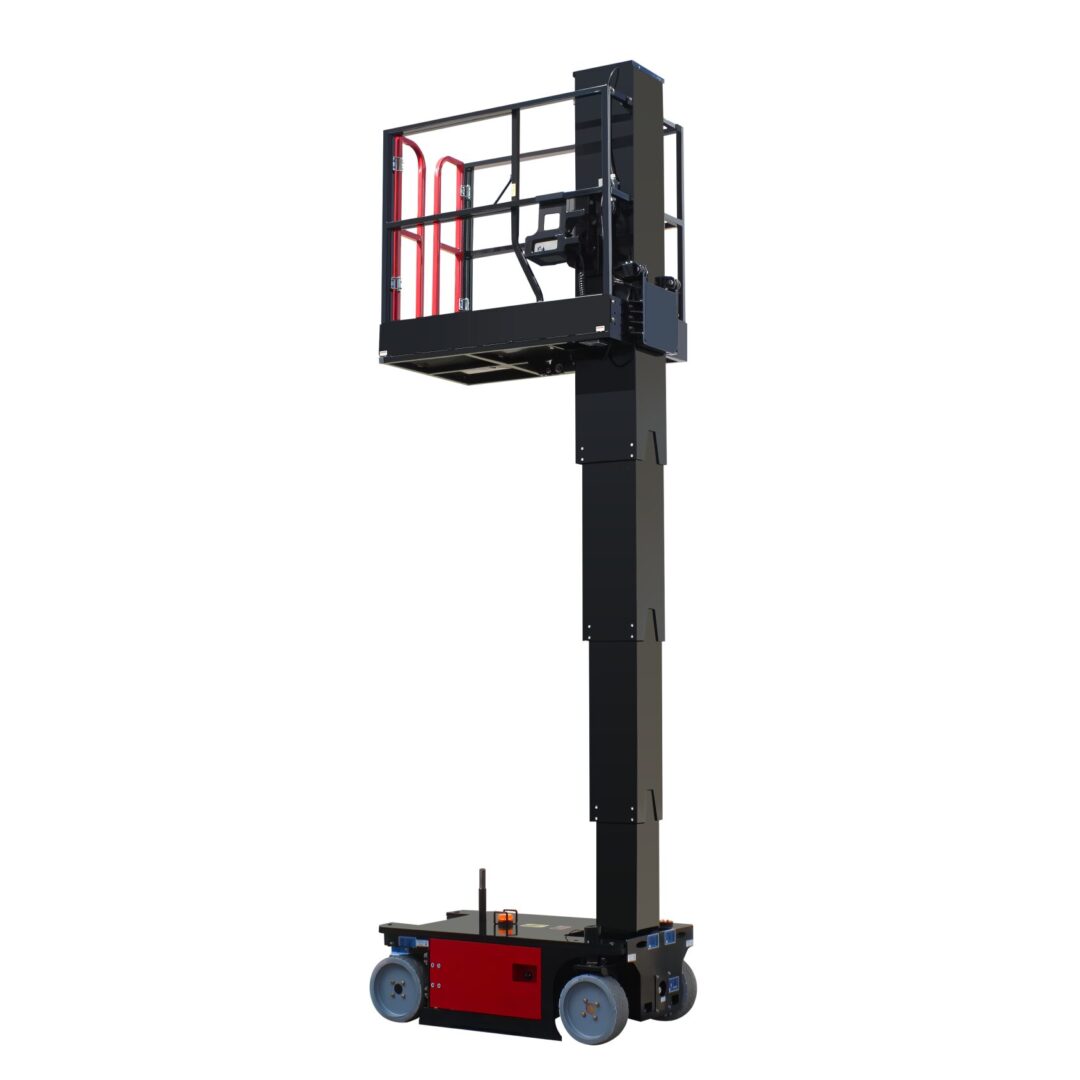

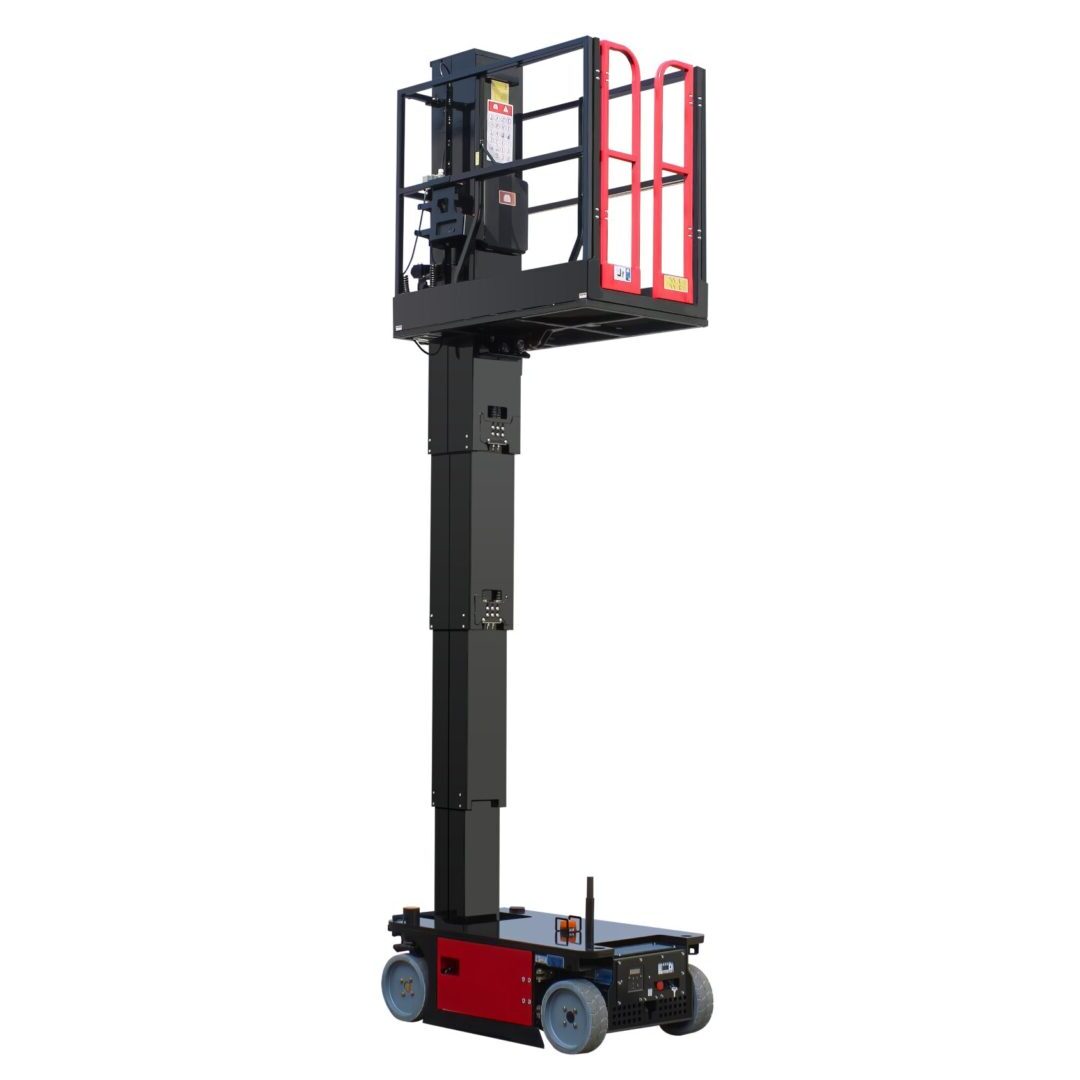

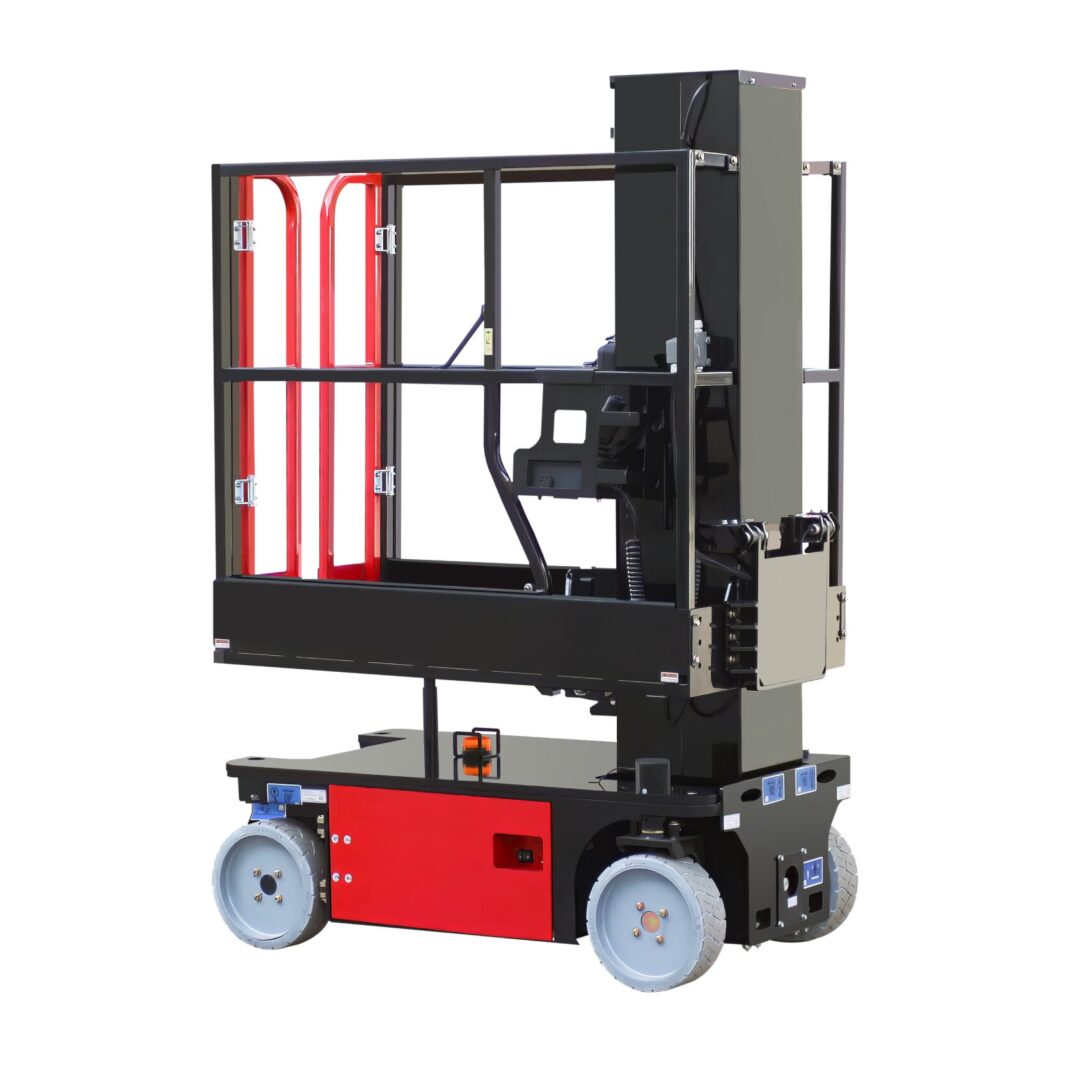

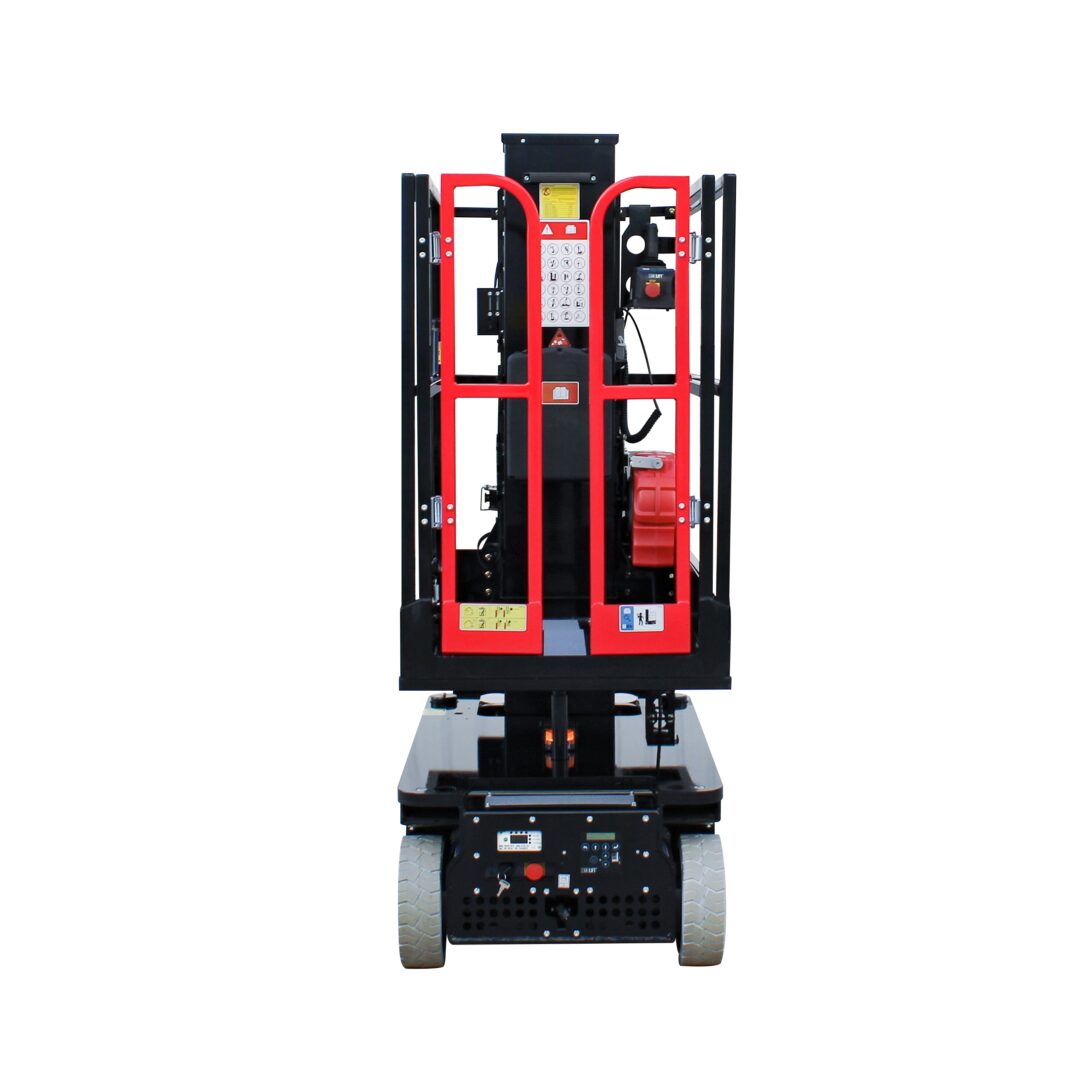

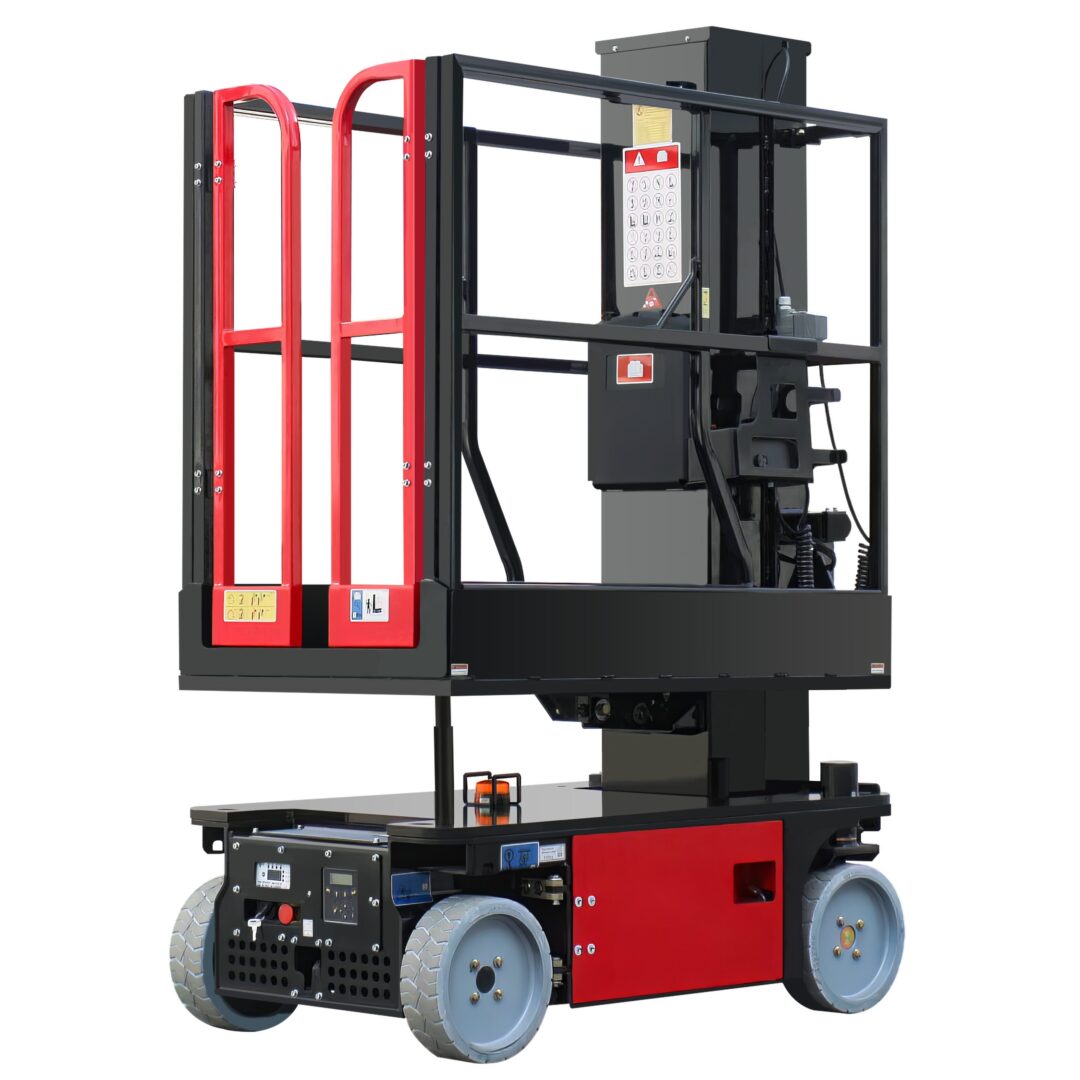

TheSDEAST- GTJZ series self-propelled vertical mast lift is a compact, battery-powered aerial work platform built for indoor and light outdoor vertical access. Its telescopic mast extends smoothly to a working height of 5.8 m to 7.8 m, while the 0.79 m chassis width and low machine weight let it pass through standard doorways and work on finished floors without damage.
Key Advantages:
| SELF-PROPELLEDVERTICAL MAST | |||
| MODEL | GTJZ06 | GTJZ08 | GTJZ08B |
| Max.Working Height | 5.8m | 6.8m | 7.8m |
| Max.Platform Height | 3.8m | 4.8m | 5.8m |
| Loading Capacity | 230kg | 200kg | 200kg |
| Ext.Platform Capacity | 114kg | 114kg | 114kg |
| Overall Length | 1.4m | 1.4m | 1.4m |
| Overall Width | 0.79m | 0.79m | 0.79m |
| 0verall Height | 1.73m | 1.98m | 1.98m |
| Platform Dimension | 1.35m×0.75m | 1.35m×0.75m | 1.35m×0.75m |
| Ext.Platform Length | 0.435m | 0.435m | 0.435m |
| wheel Base | 1.06m | 1.06m | 1.06m |
| Inner Turning Radius | 0.3m | 0.3m | 0.3m |
| Outer Turning Radius | 1.4m | 1.4m | 1.4m |
| Travel Speed(Stowed) | 4.5km/h | 4.5km/h | 4.5km/h |
| Travel Speed(Raised) | 0.8km/h | 0.8km/h | 0.8km/h |
| Up/Down Speed | 31/32sec | 31/32sec | 31/32sec |
| Gradeability | 25% | 25% | 25% |
| Drive Tyres | φ305×100mm | φ305×100mm | φ305×100mm |
| Drive Motors | 2×24VDC/0.89kW | 2×24VDC/0.89kW | 2×24VDC/0.89kW |
| Liting Motor | 24VDC/2.2kW | 24VDC/2.2kW | 24VDC/2.2kW |
| Battery | 24V/100Ah | 24V/100Ah | 24V/100Ah |
| Charger | 24V/15A | 24V/15A | 24V/15A |
| Weight | 920kg | 950kg | 1350kg |

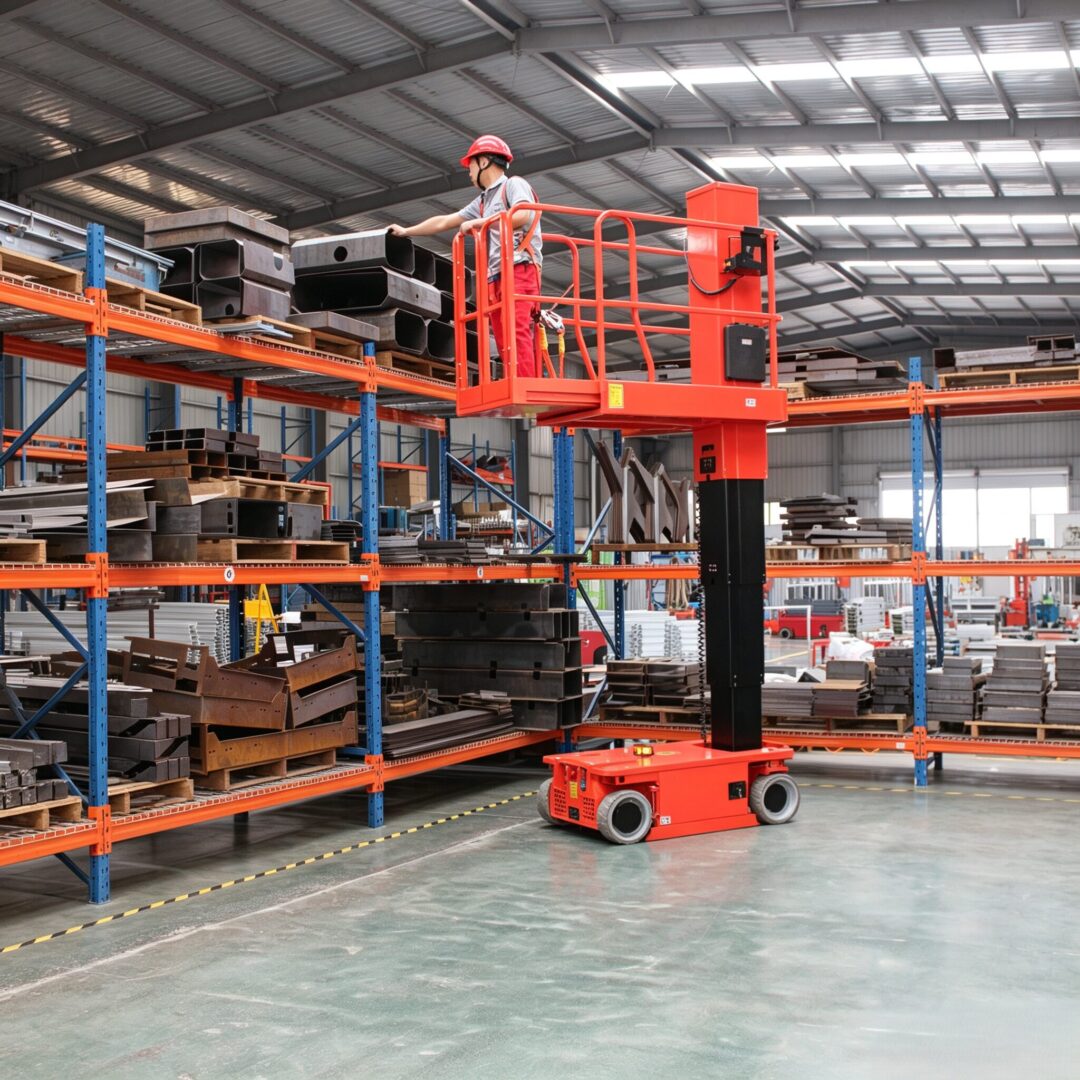

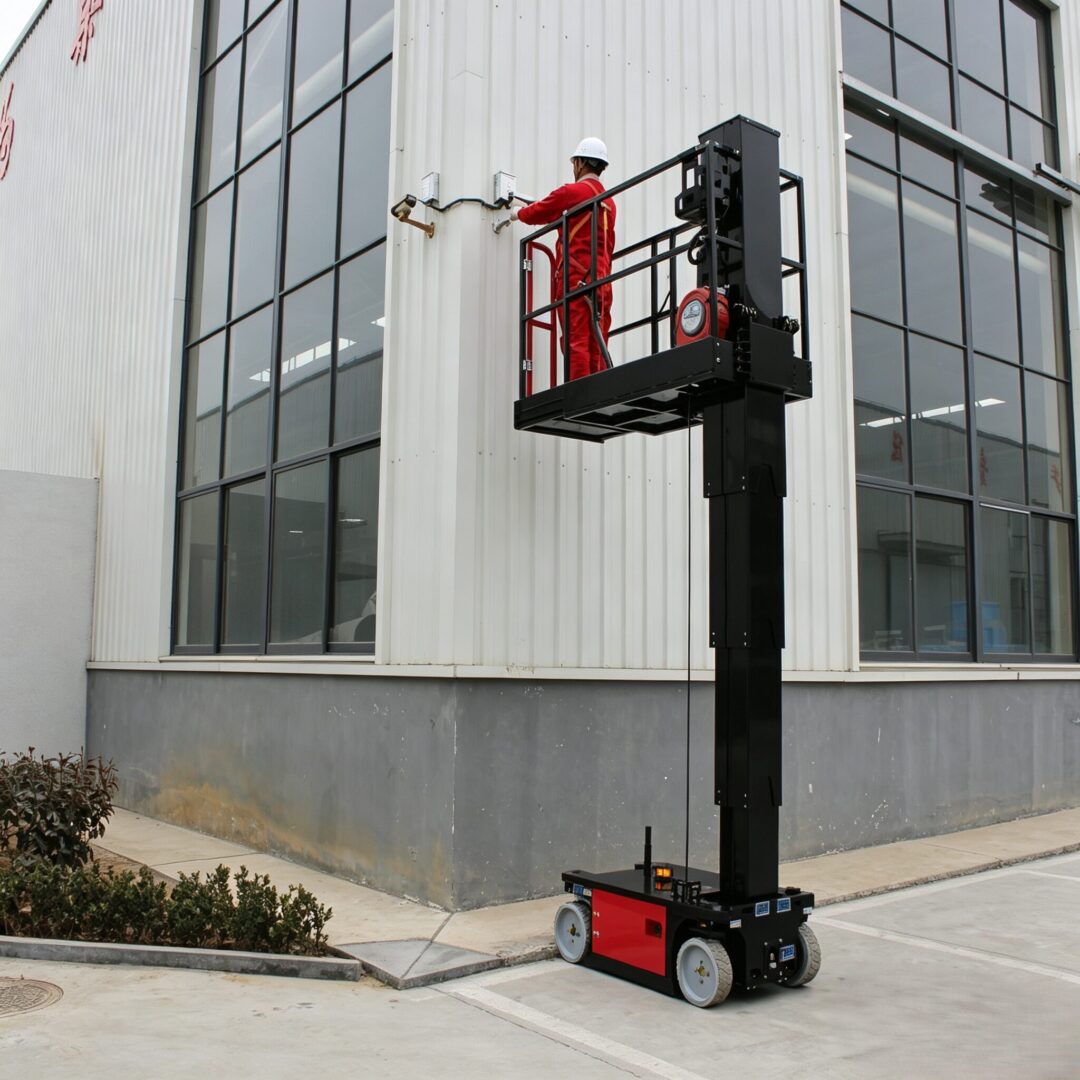

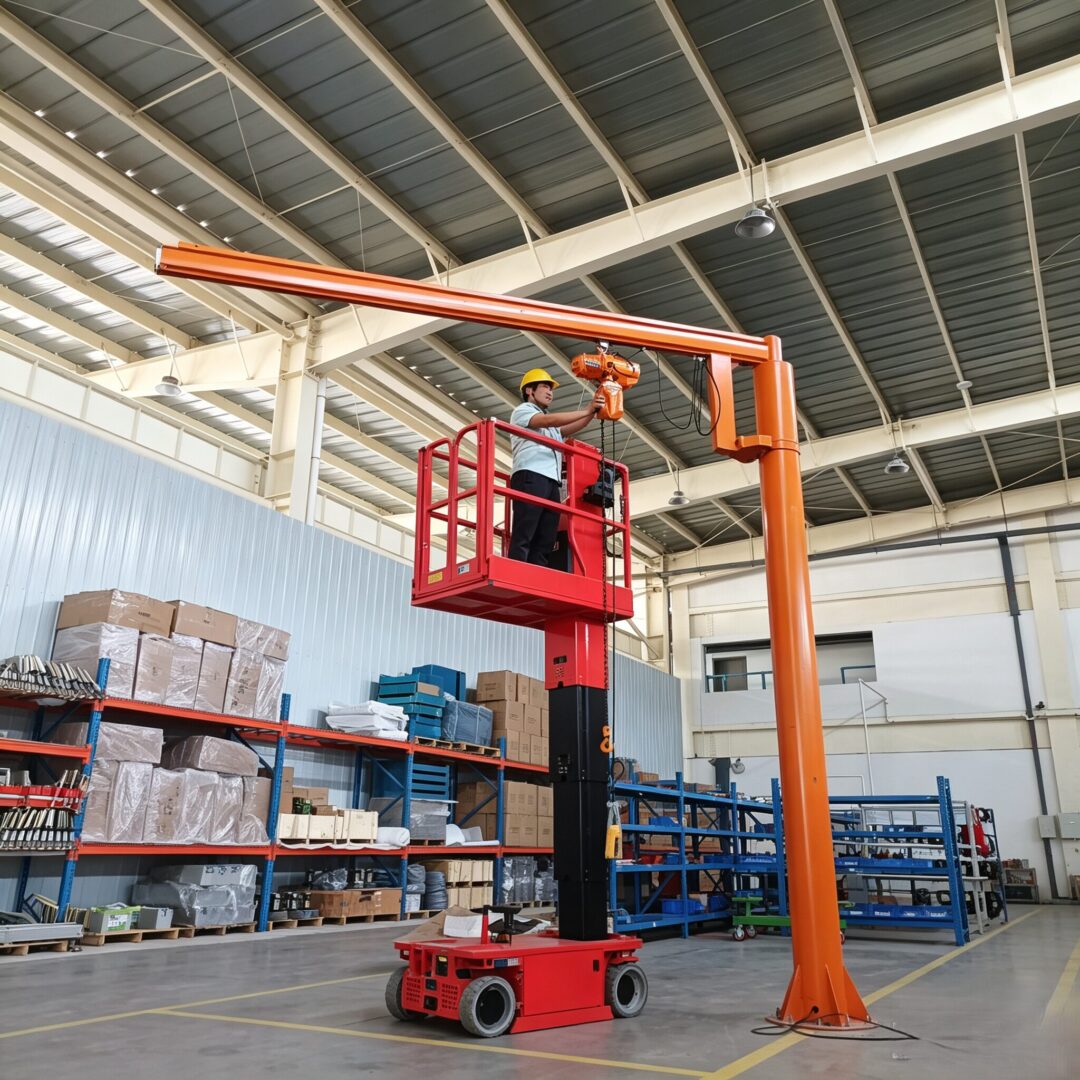

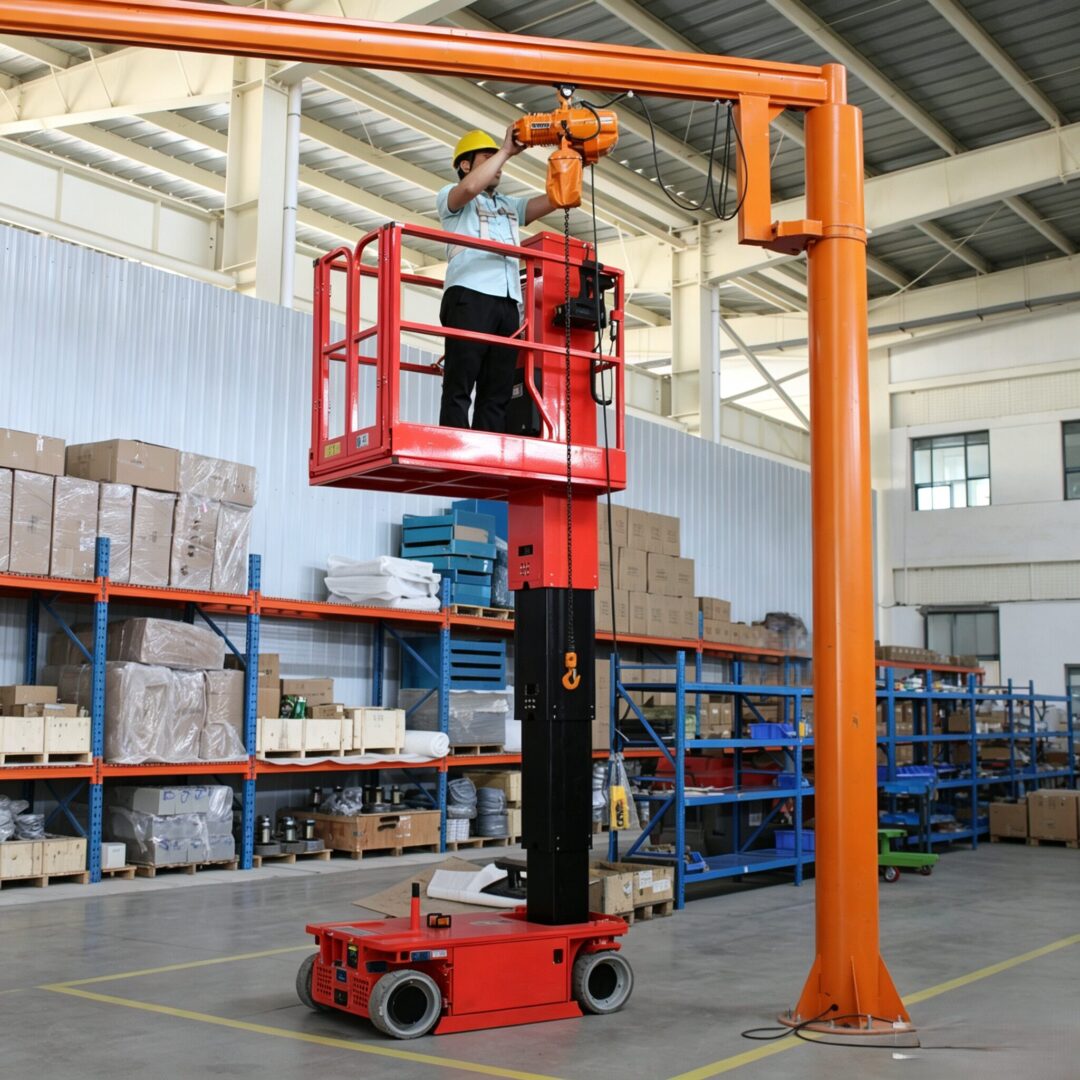

The self-propelled vertical mast lift is designed for jobs that need vertical reach in confined spaces. Its compact footprint and quiet battery drive make it suitable for indoor work during business hours.
Main Applications:
