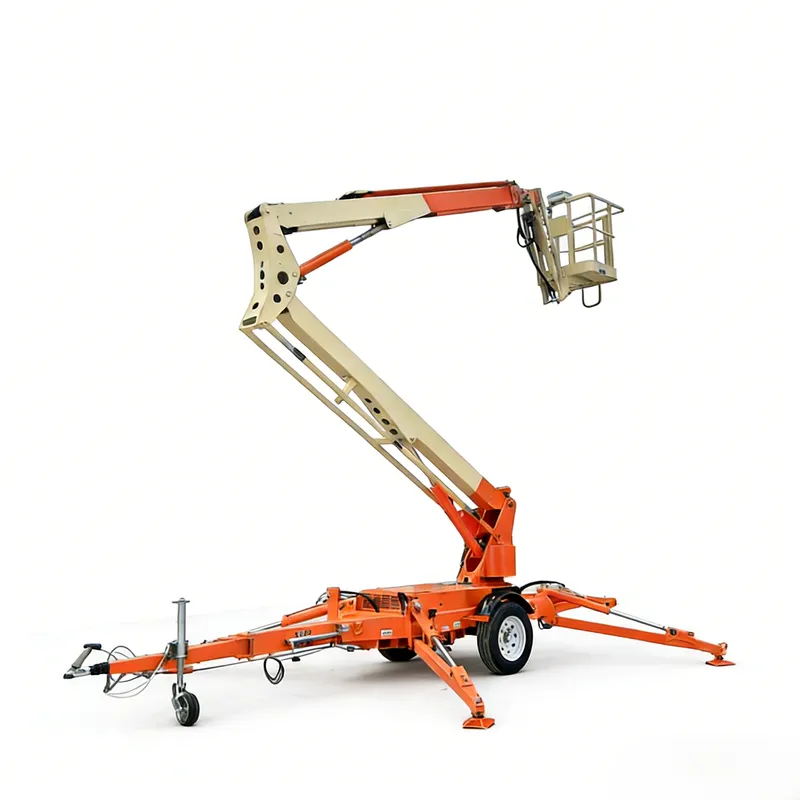

Towable boom lifts are lightweight, cost-effective, and easy to transport. They can be quickly towed by vehicles, offering flexible access for multi-site operations.
Product and technical features:
1、The machine features overload, over-limit, and tilt alarm functions
2、Fault emergency lowering system
3、Touch LCD display control system
4、Emergency stop button; an action buzzer and horn are active during operation
|
Technical Parameters
|
4m 3-Section | 4m 4-Section | 5m 5-Section | 6m 3-Section | 6m 4-Section | 6m 5-Section | 8m 4-Section | 8m 5-Section | 10m 4-Section | 10m 5-Section | 12m 4-Section | 12m 5-Section |
| Model | 4m 3-Section | 4m 4-Section | 5m 5-Section | 6m 3-Section | 6m 4-Section | 6m 5-Section | 8m 4-Section | 8m 5-Section | 10m 4-Section | 10m 5-Section | 12m 4-Section | 12m 5-Section |
| 1 ton | 1 ton | 1 ton | 1 ton | 1 ton | 1 ton | |||||||
| Maximum Platform Height | 4000mm | 4000mm | 5000mm | 6000mm | 6000mm | 6000mm | 8000mm | 8000mm | 10000mm | 10000mm | 12000mm | 12000mm |
| Minimum Platform Height | 600mm | 700mm | 700mm | 600mm | 700mm | 700mm | 700mm | 700mm | 700mm | 700mm | 700mm | 700mm |
| Mast Structure | Special C-Section Steel 12*8 for Lift | Special C-Section Steel 12*8 for Lift | Special C-Section Steel 12*8 for Lift | Special C-Section Steel 12*8 for Lift | Special C-Section Steel 12*8 for Lift | Special C-Section Steel 12*8 for Lift | Special C-Section Steel 12*8 for Lift | Special C-Section Steel 12*8 for Lift | Special C-Section Steel 12*8 for Lift | Special C-Section Steel 12*8 for Lift | Special C-Section Steel 12*8 for Lift | Special C-Section Steel 12*8 for Lift |
| Outrigger Longitudinal Span | 2000mm | 2000mm | 2000mm | 2000mm | 2000mm | 2000mm | 2000mm | 2000mm | 2000mm | 2000mm | 2000mm | 2000mm |
| Outrigger Transverse Span | 2600mm | 2600mm | 2700mm | 2600mm | 2600mm | 2700mm | 2600mm | 2700mm | 2600mm | 2700mm | 2900mm | 3000mm |
| Static Height | 2150mm | 1900mm | 1900mm | 2900mm | 2400mm | 2100mm | 2900mm | 2500mm | 3400mm | 2900mm | 3900mm | 3300mm |
| Platform Dimensions | 4000*1450mm | 4000*1450mm | 4000*1500mm | 4000*1450mm | 4000*1450mm | 4000*1500mm | 4000*1450mm | 4000*1500mm | 4000*1450mm | 4000*1500mm | 4000*1450mm | 4000*1500mm |
| Lifting Motor Voltage | 220V | 220V | 220V | 220V | 220V | 220V | 220V | 220V | 220V | 220V | 220V | 220V |
| Lifting Motor Power | 3.0kw | 3.0kw | 3.0kw | 3.0kw | 3.0kw | 3.0kw | 3.0kw | 3.0kw | 3.0kw | 3.0kw | 3.0kw | 3.0kw |
| Travel Battery | DC48V Lead-Acid Battery | DC48V Lead-Acid Battery | DC48V Lead-Acid Battery | DC48V Lead-Acid Battery | DC48V Lead-Acid Battery | DC48V Lead-Acid Battery | DC48V Lead-Acid Battery | DC48V Lead-Acid Battery | DC48V Lead-Acid Battery | DC48V Lead-Acid Battery | DC48V Lead-Acid Battery | DC48V Lead-Acid Battery |
| Travel Motor Power | 1500W | 1500W | 1500W | 1500W | 1500W | 1500W | 1500W | 1500W | 1500W | 1500W | 1500W | 1500W |
| Load Capacity | 1T | 1T | 1T | 1T | 1T | 1T | 1T | 1T | 1T | 1T | 1T | 1T |
| Overall Shipping Dimensions (L×W×H) | 2400*1200*2150mm | 2400*1200*1900mm | 2400*1200*1900mm | 2400*1200*2900mm | 2400*1200*2400mm | 2400*1200*2100mm | 2400*1200*2900mm | 2400*1200*2500mm | 2400*1200*3400mm | 2400*1200*2900mm | 2400*1200*3900mm | 2400*1200*3300mm |
| Overall Self-weight | 1.2T | 1.35T | 1.4T | 1.3T | 1.43T | 1.55T | 1.57T | 1.7T | 1.71T | 1.9T | 1.9T | 2.15T |
| Tires | Wide Solid Tires | Wide Solid Tires | Wide Solid Tires | Wide Solid Tires | Wide Solid Tires | Wide Solid Tires | Wide Solid Tires | Wide Solid Tires | Wide Solid Tires | Wide Solid Tires | Wide Solid Tires | Wide Solid Tires |
The towable articulating boom lift, featuring an ultra-portable structural design, industry-leading tow mobility and intelligent automatic leveling performance, is widely applied to municipal maintenance, building renovation, tree pruning, exterior wall painting as well as high-altitude operations in commercial and residential premises. It delivers a safe, convenient and reliable high-altitude operation solution to meet various mobile high-altitude operation needs.

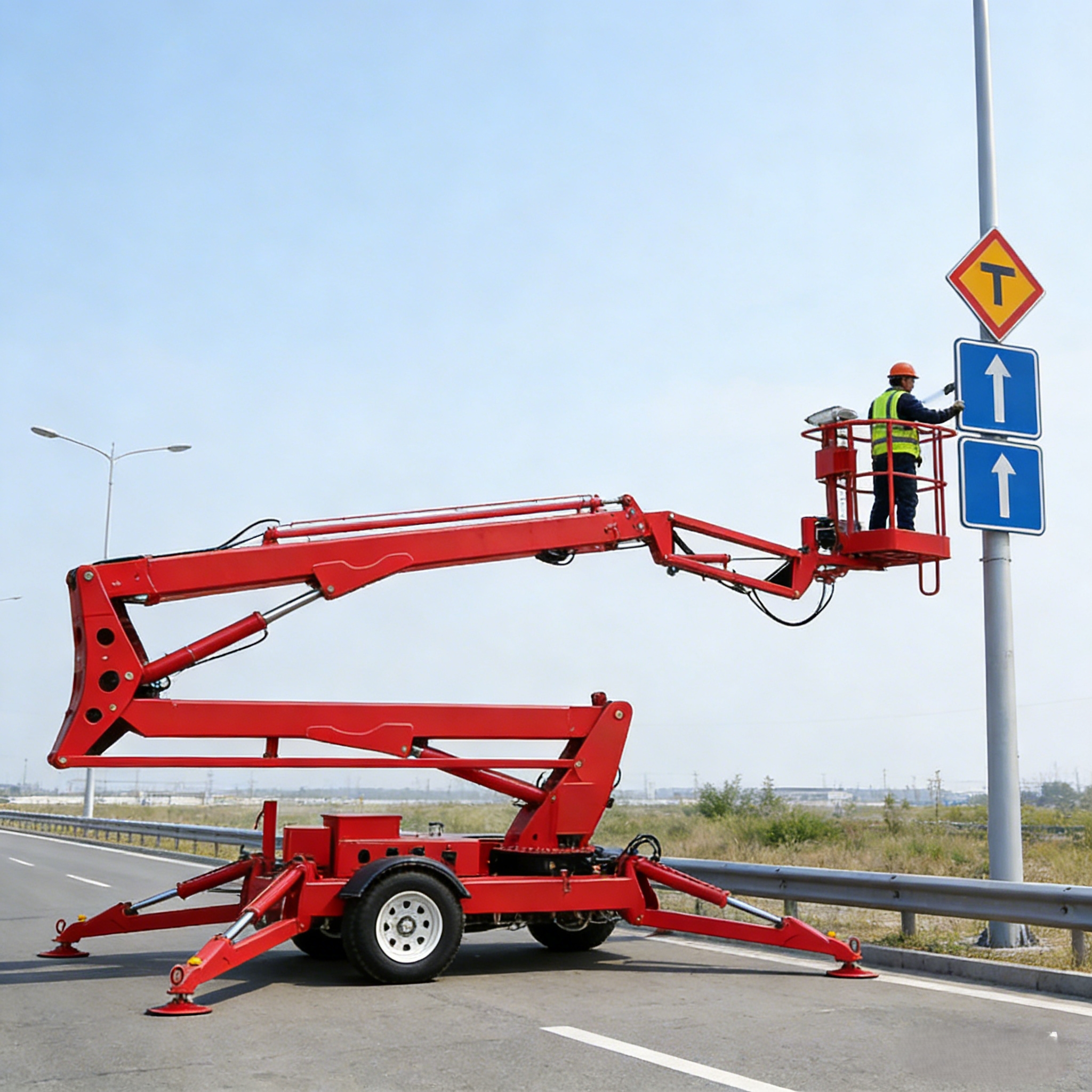

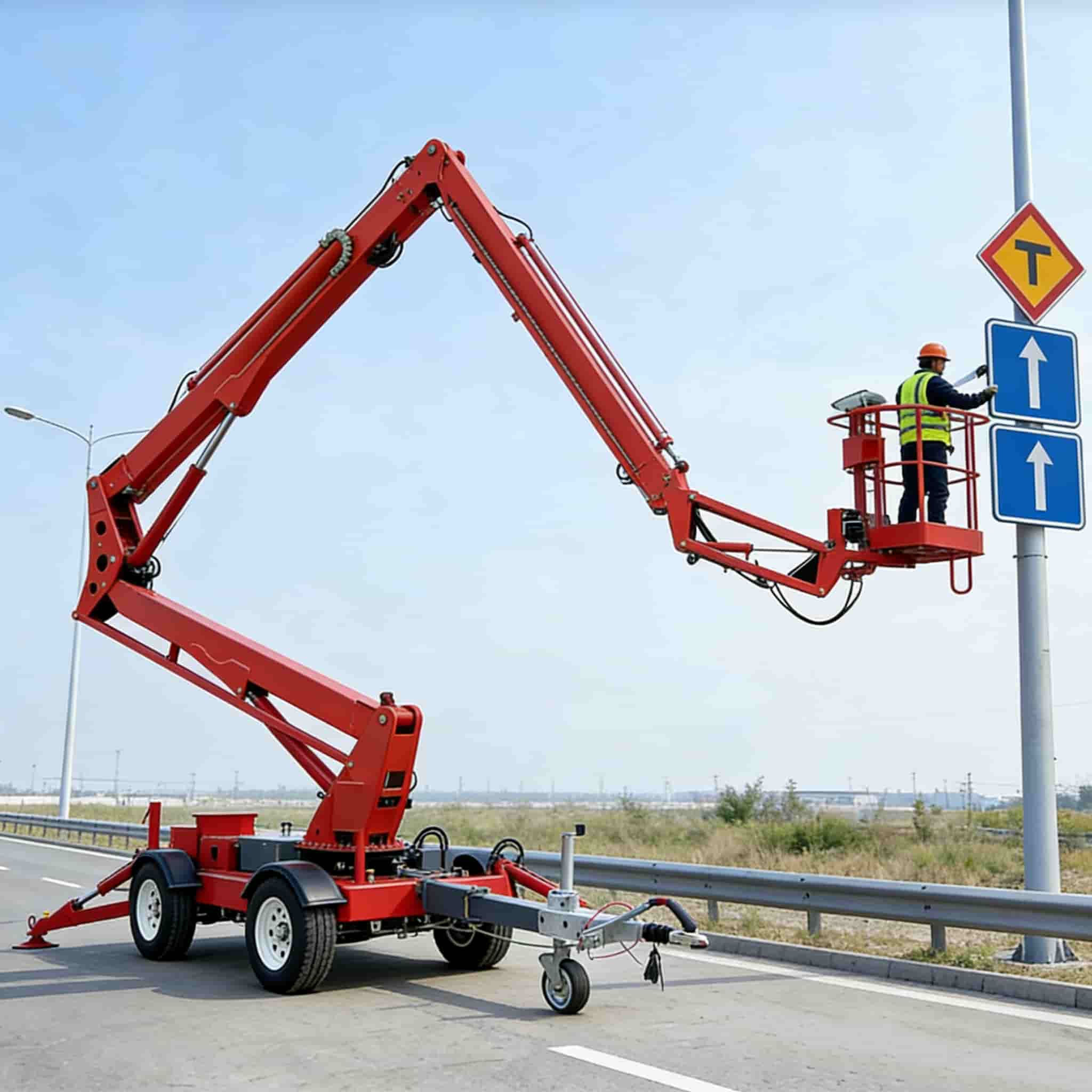

1.Municipal and Public Infrastructure Maintenance

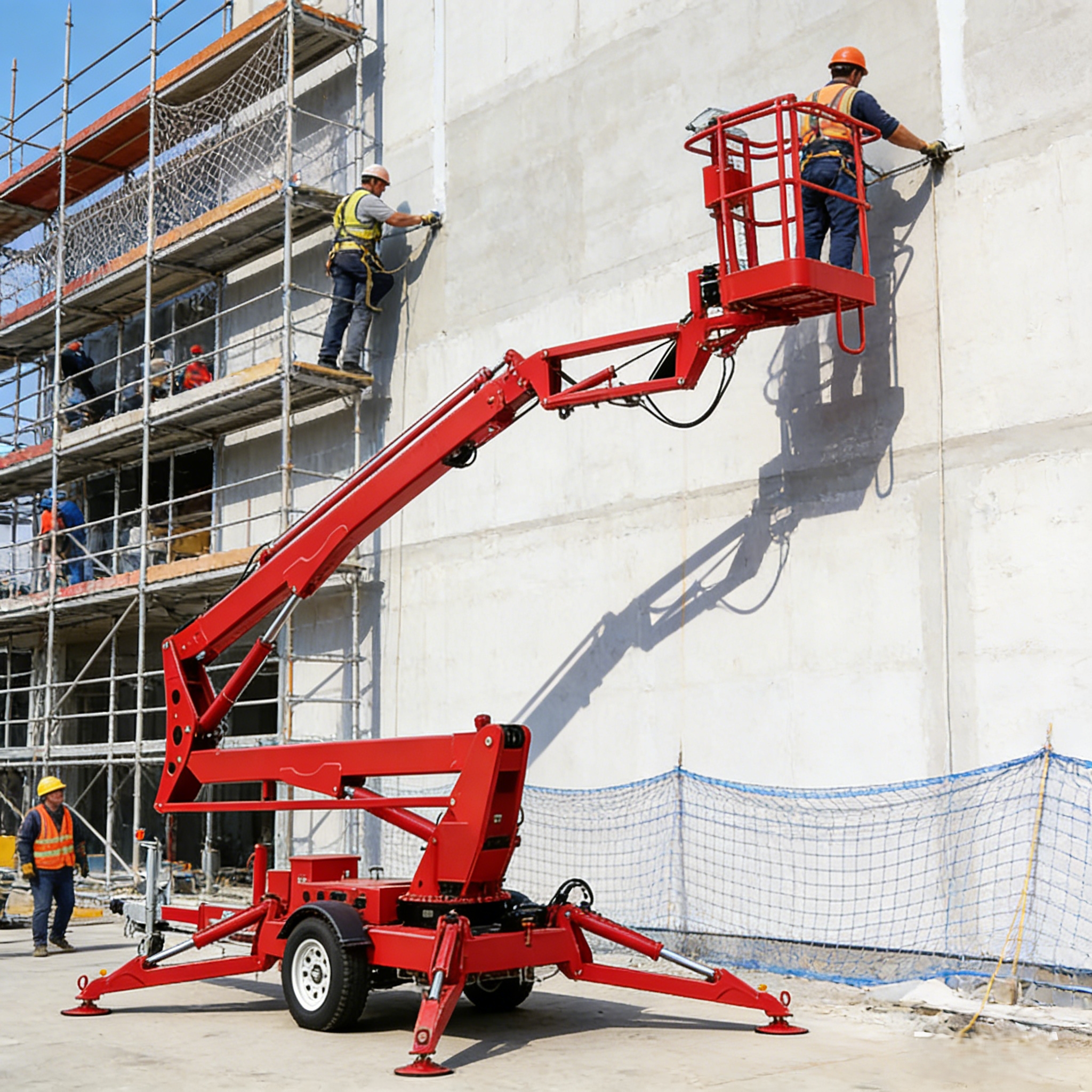

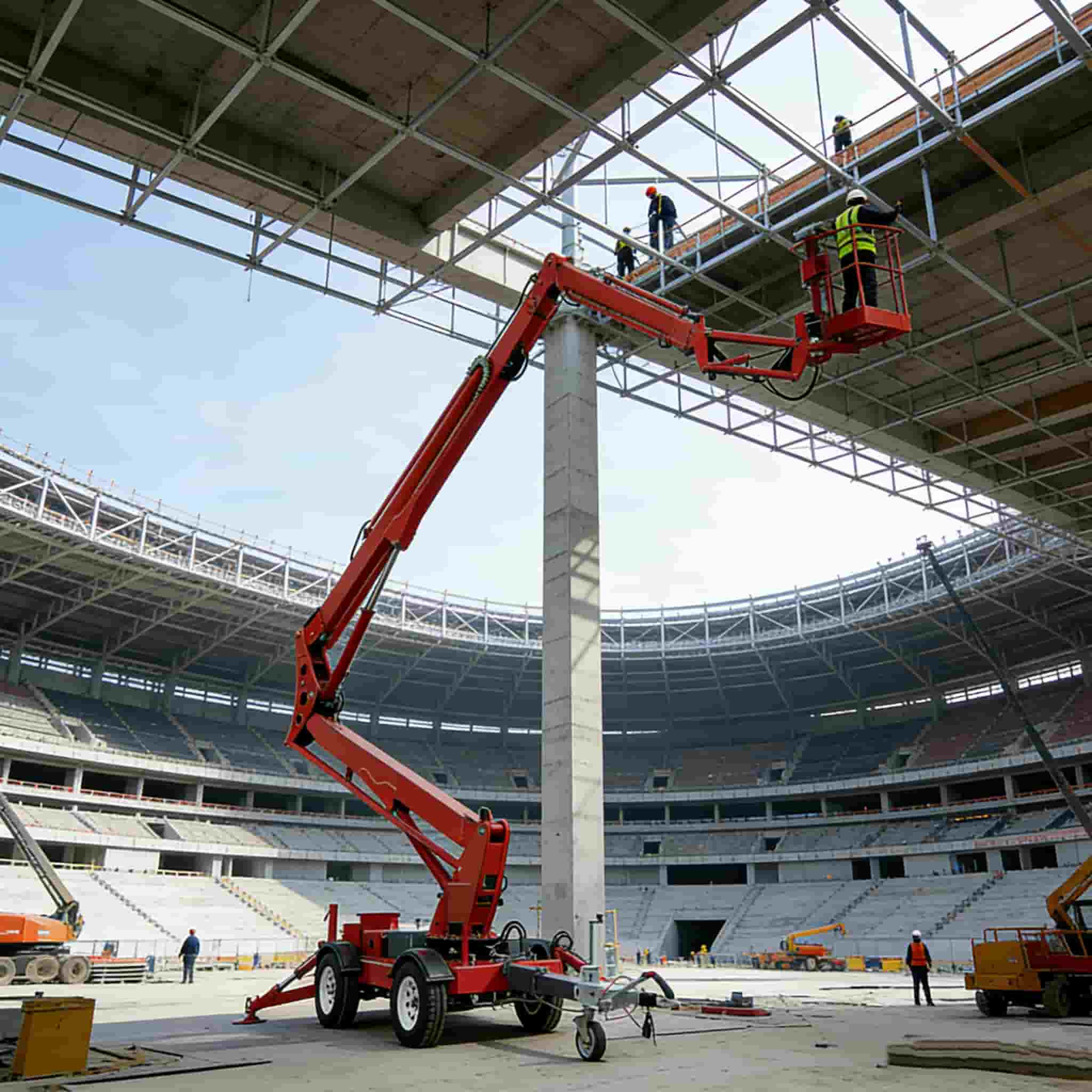

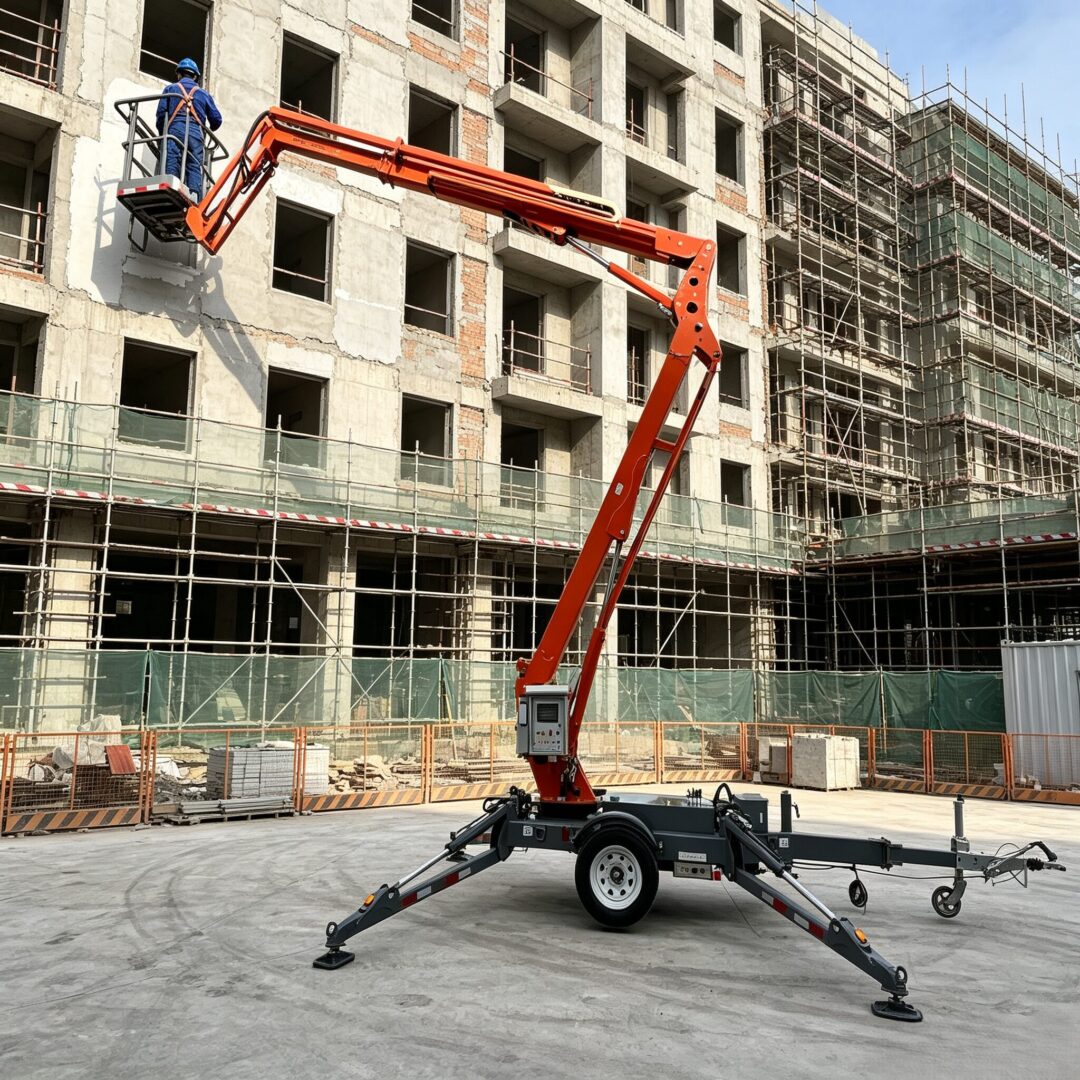

2.Construction and Façade Maintenance

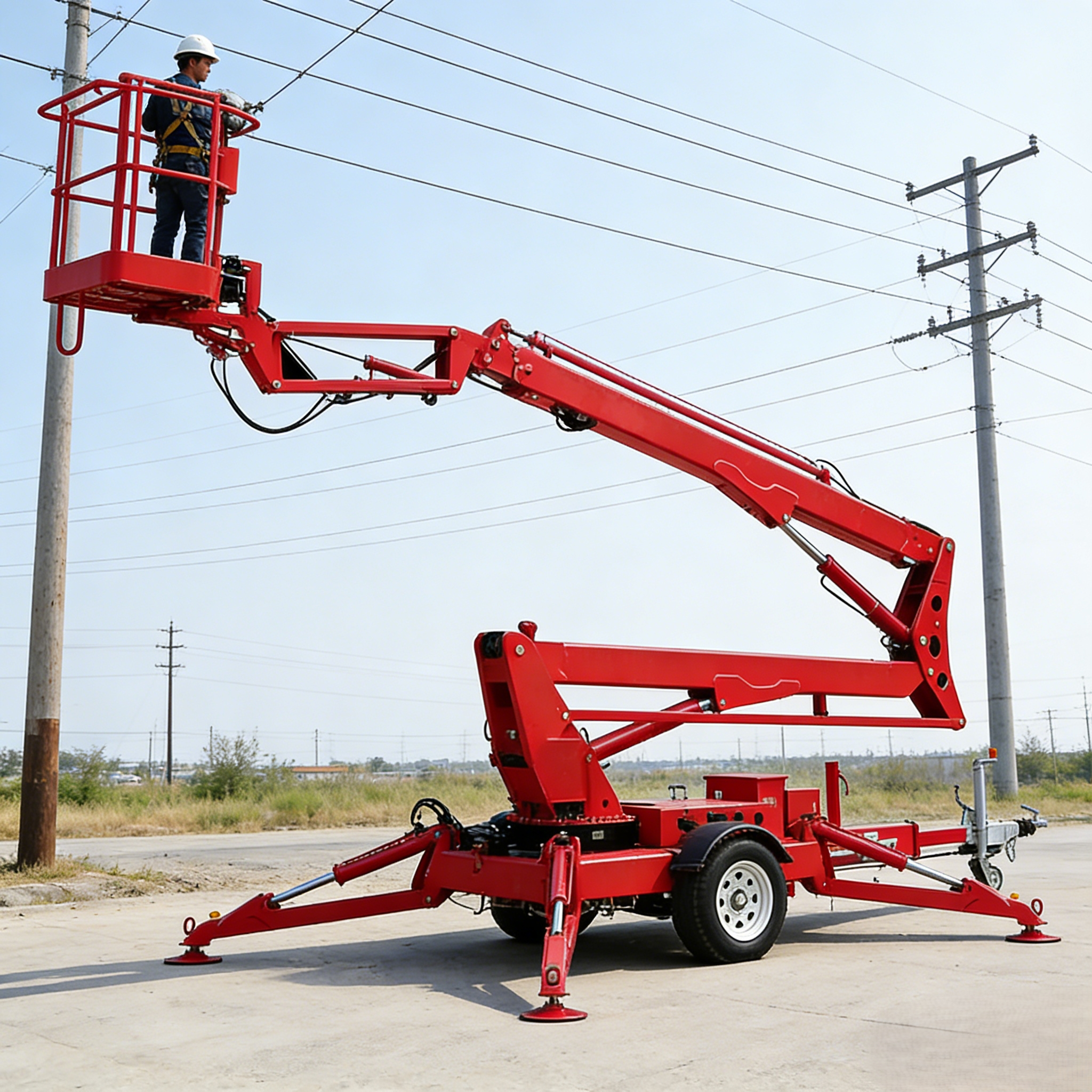

3.Power and Telecommunications Engineering

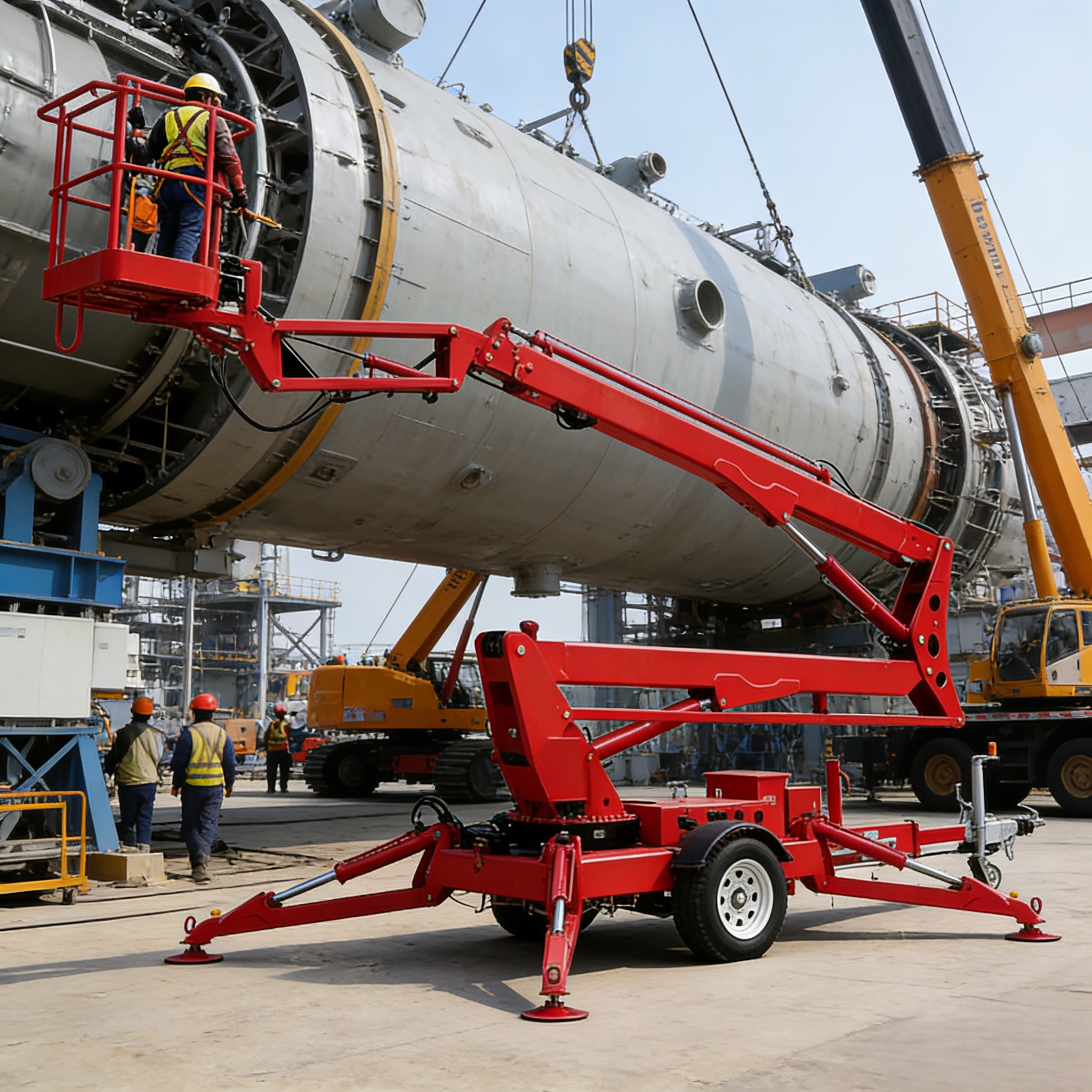

4.Industrial Equipment Maintenance

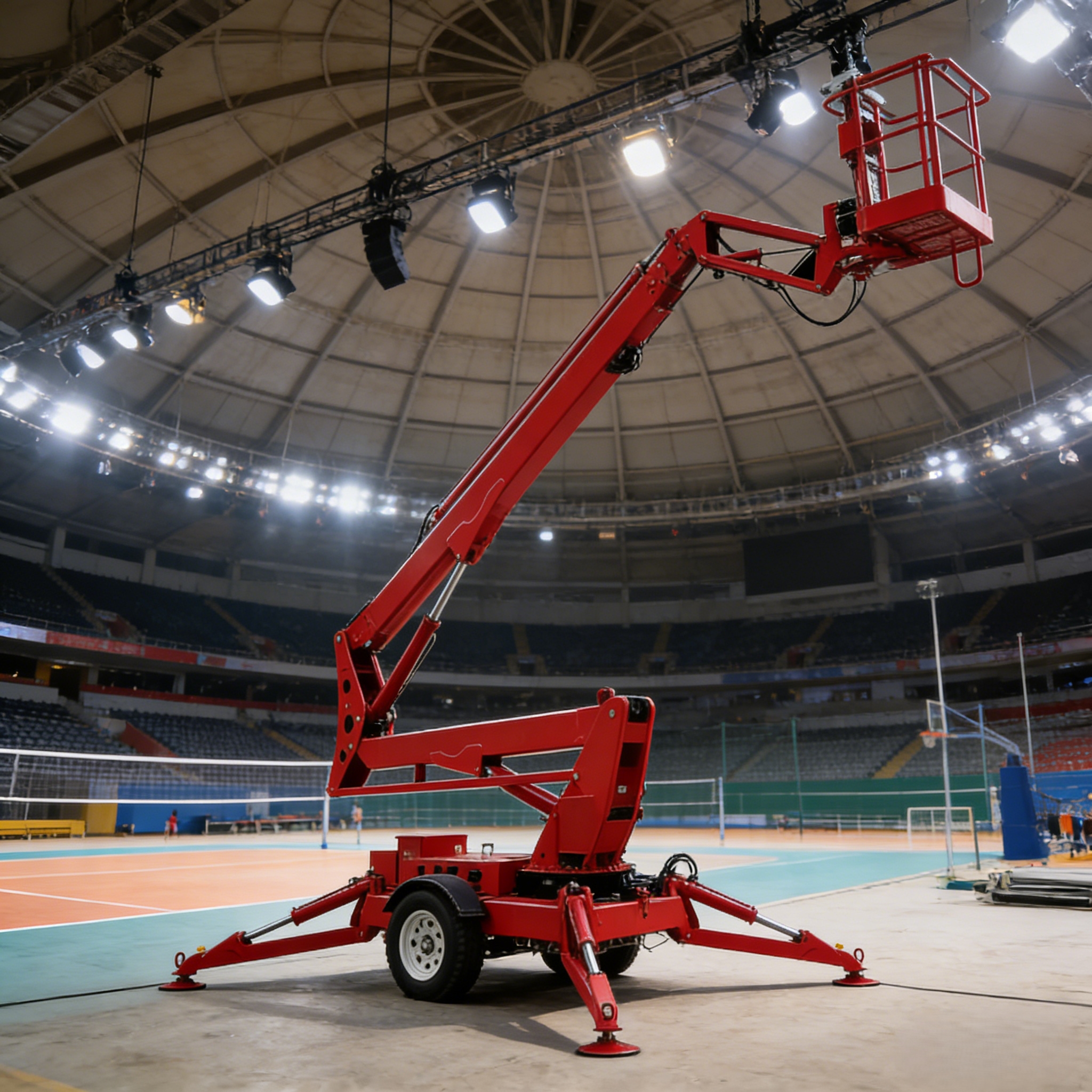

5.Commercial and Facility Maintenance

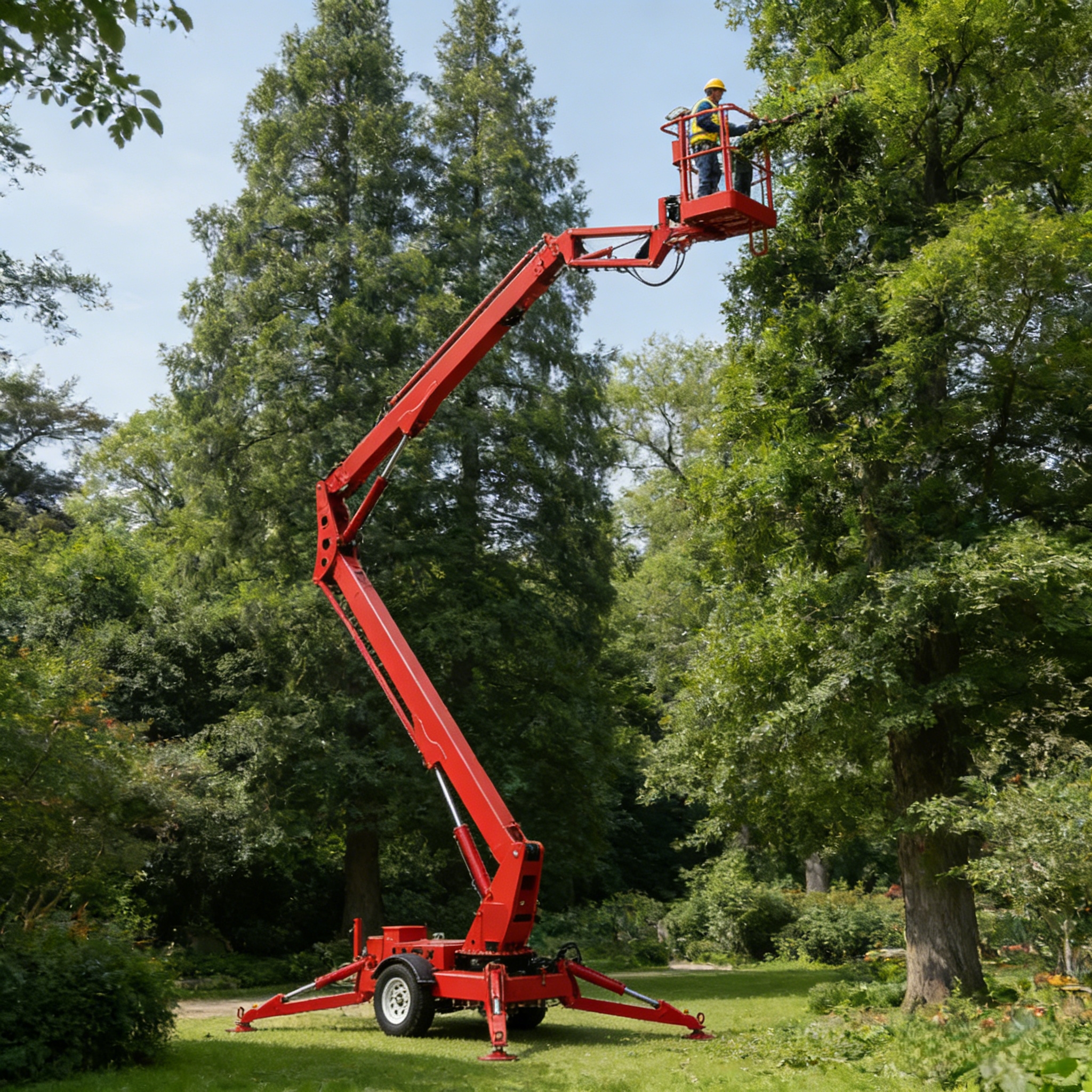

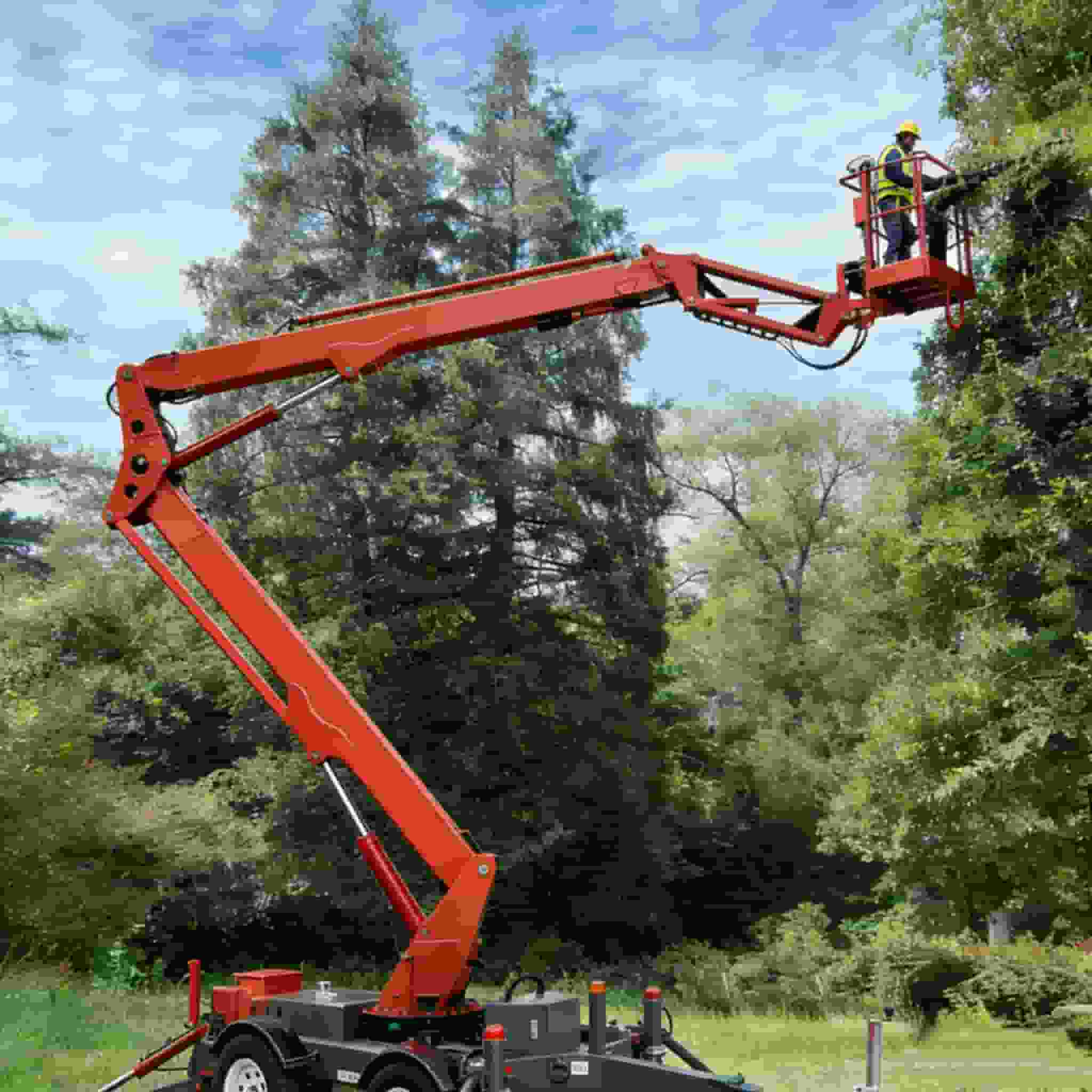

6.Landscaping and Tree Care
