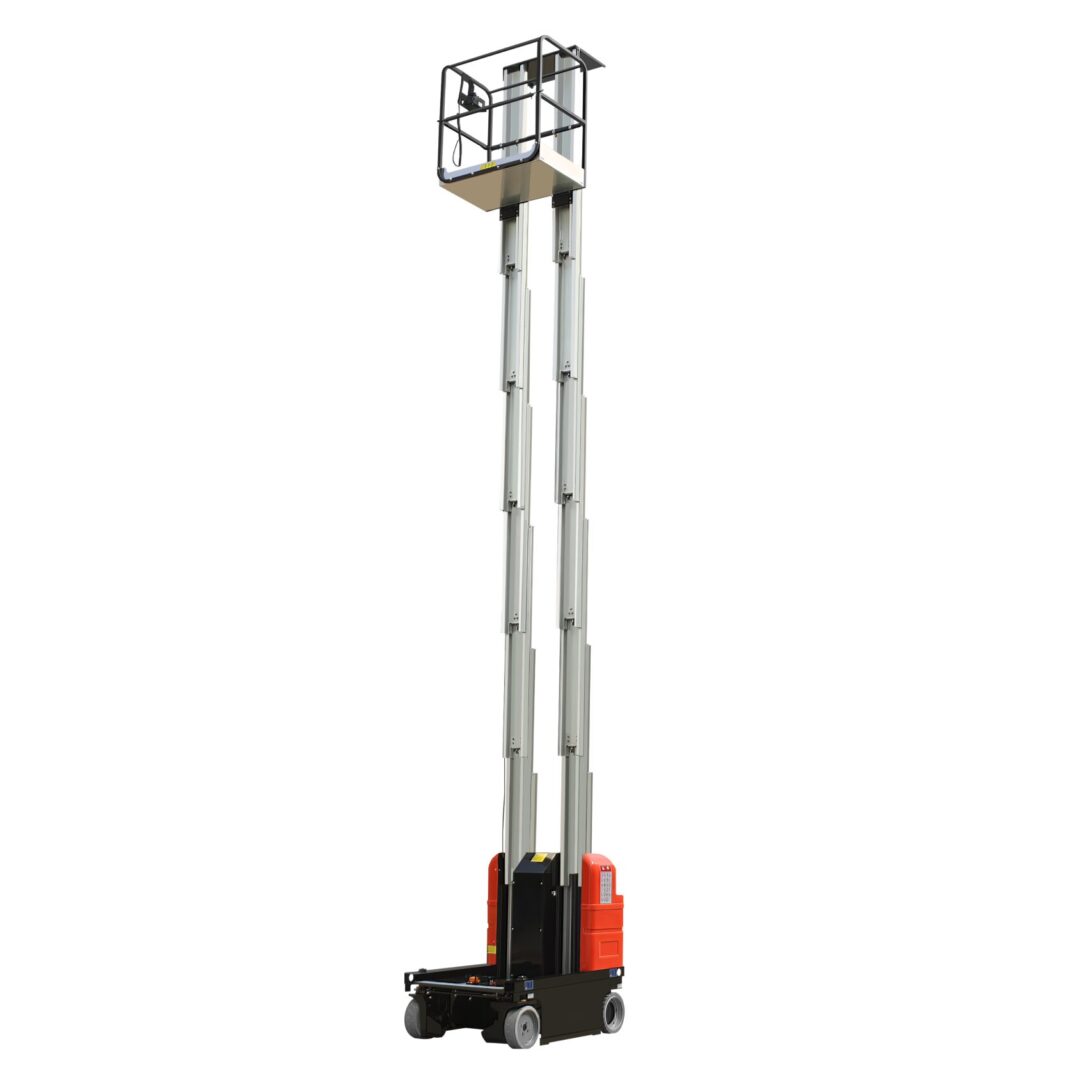

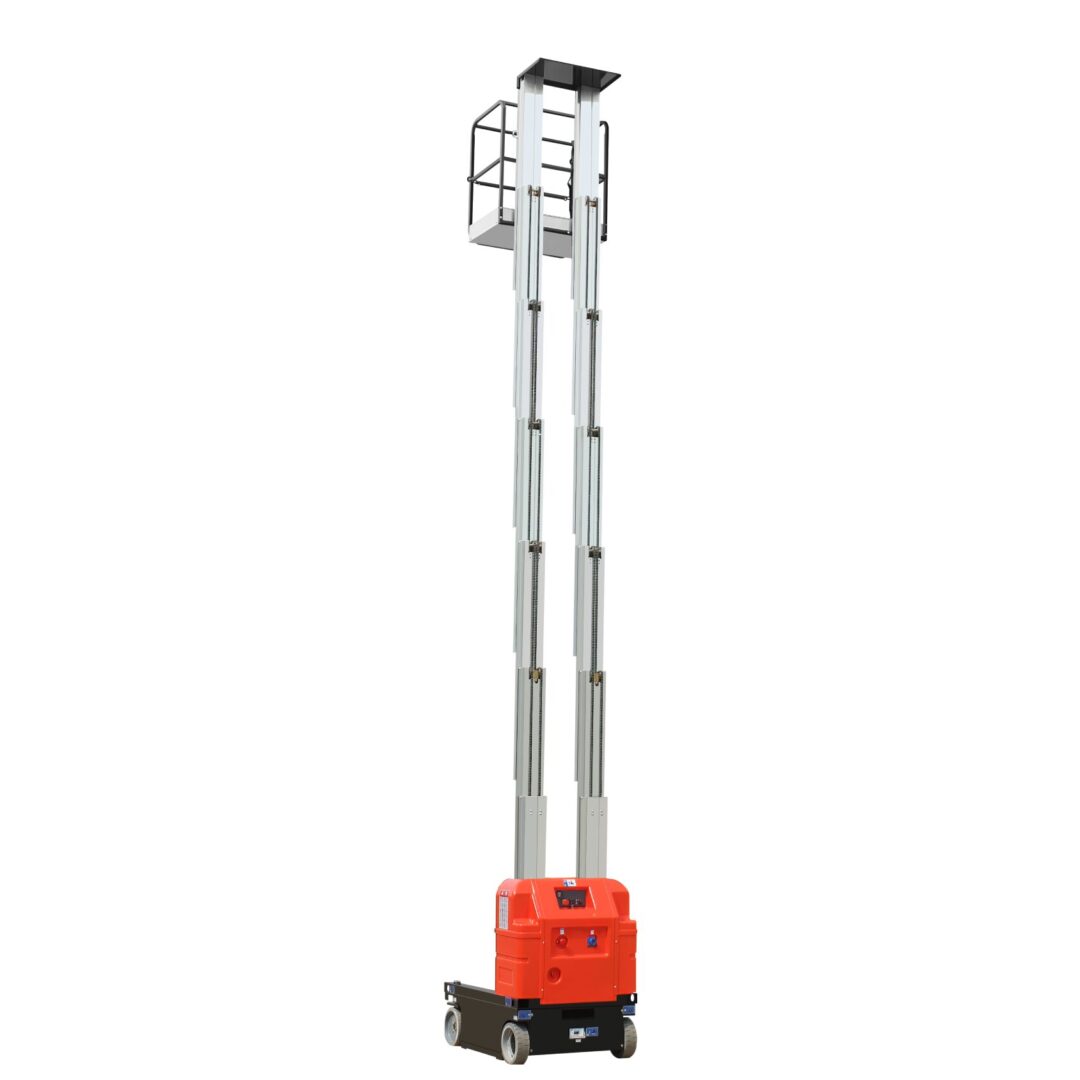

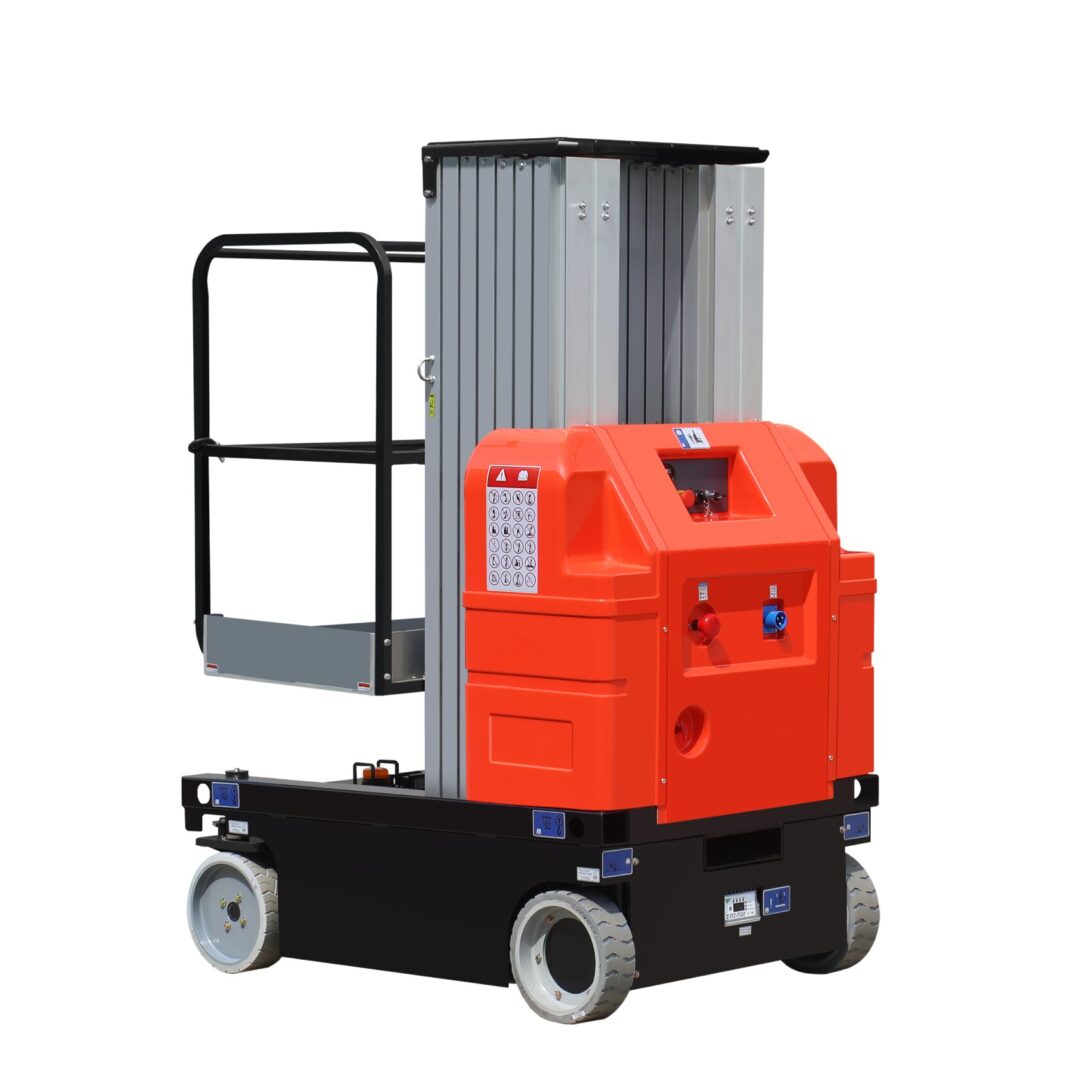

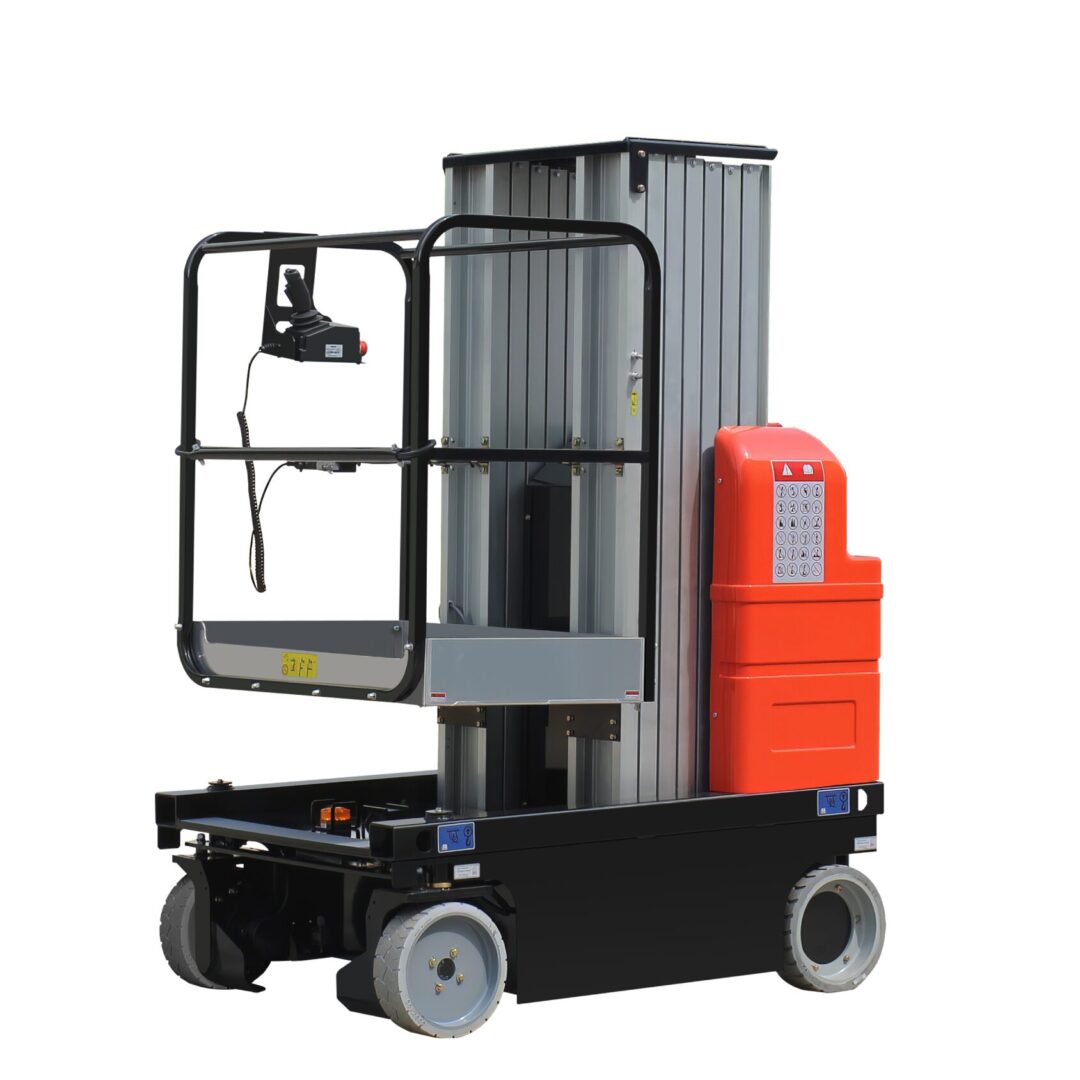

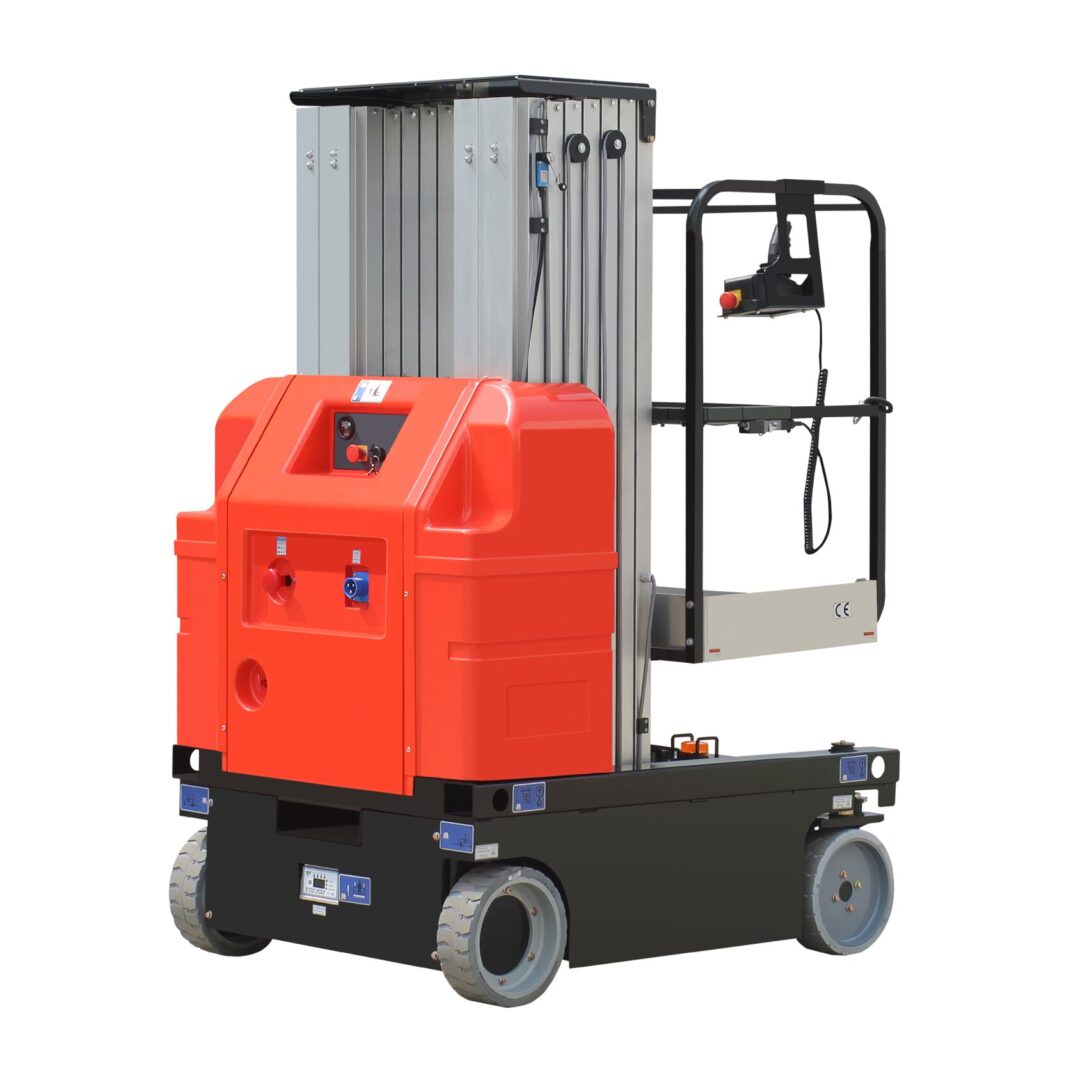

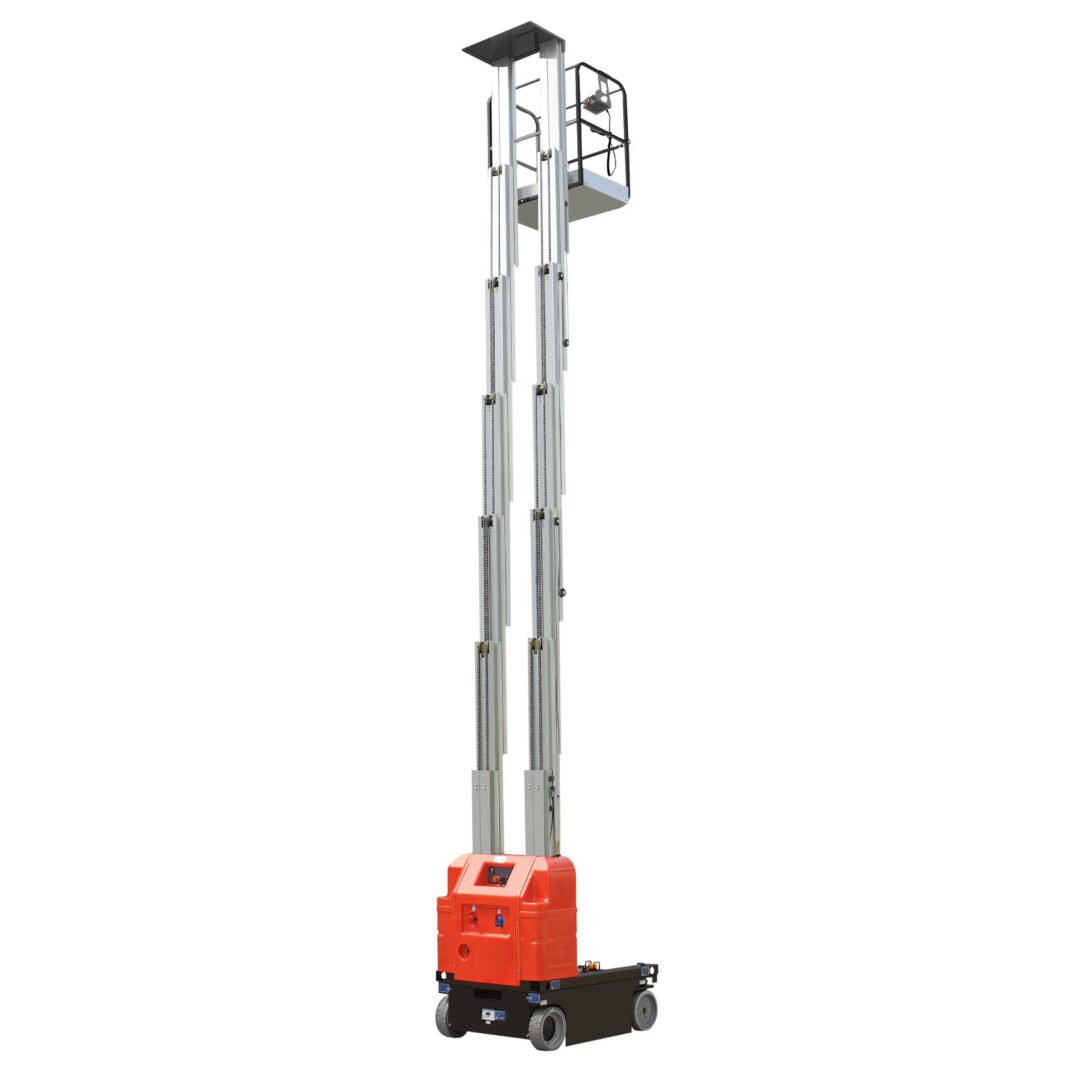

A dual mast aluminum lift is a self-propelled aerial work platform built for higher indoor reach and heavier loads. The GTJZ series uses two parallel aluminum masts to provide greater rigidity and stability, supporting working heights of 9.50 m to 11.00 m and platform loads up to 200 kg. With a 1.01 m chassis and 1.00 m long platform, it moves through standard doorways while giving operators a more spacious working area than single-mast models.
1、 Dual-mast design — twin aluminum masts deliver higher rigidity and stable operation at extended heights
2、 Higher working height — 9.50 m to 11.00 m, ideal for taller ceilings, mezzanines, and double-floor spaces
3、 Greater load capacity — up to 200 kg platform load for two-person work or heavier tools
4、 Larger platform — 1.00 m × 0.65 m gives more working room than single-mast lifts
5、 Battery-powered drive — quiet, zero-emission operation suitable for occupied buildings
6、 Compact 1.01 m width — still passes through standard single doorways and most elevators
7、 Smooth proportional controls — drive, lift, and steer from the platform
8、 Multiple safety features — pothole protection, tilt sensor, emergency descent, and anti-collision light
| SELF-PROPELLEDVERTICAL LIFT | ||
| MODEL | GTJZ10 | GTJZ12 |
| Max.Working Height | 9.50m | 11.00m |
| Max.Platform Height | 7.50m | 9.00m |
| Loading Capacity | 200kg | 150kg |
| Occupants | 1 | 1 |
| Overall Length | 1.46m | 1.46m |
| Overall Width | 1.01m | 1.01m |
| Overall Height | 2.03m | 2.03m |
| Platform Dimension | 1.00m×0.65m | 1.00m×0.65m |
| Wheel Base | 1.14m | 1.14m |
| Turning Radius | 0.3m | 0.3m |
| Travel Speed(Stowed) | 4km/h | 4km/h |
| Travel Speed(Raised) | 1.1km/h | 1.1km/h |
| Up/Down Speed | 48/40sec | 56/49sec |
| Gradeability | 25% | 25% |
| Drive Tyres | Φ305×100mm | Φ305×100mm |
| Drive Motors | 2×24VDC/0.5kW | 2×24VDC/0.5kW |
| Lifting Motor | 24VDC/1.3kW | 24VDC/1.3kW |
| Battery | 2×12V/100Ah | 2×12V/100Ah |
| Charger | 24V/15A | 24V/15A |
| Weight | 1270kg | 1345kg |
The dual mast aluminum lift is built for indoor aerial work that requires higher reach and greater load capacity. Its twin-mast design and longer platform make it ideal for taller ceilings, double-floor spaces, and maintenance tasks that need more working room.
Common jobs for the dual mast aluminum lift include warehouse lighting replacement, retail store fixture installation, hotel atrium cleaning, exhibition booth build-up, and school auditorium maintenance. In each case, the compact footprint and quiet battery drive let crews work during business hours without blocking traffic or disturbing occupants.

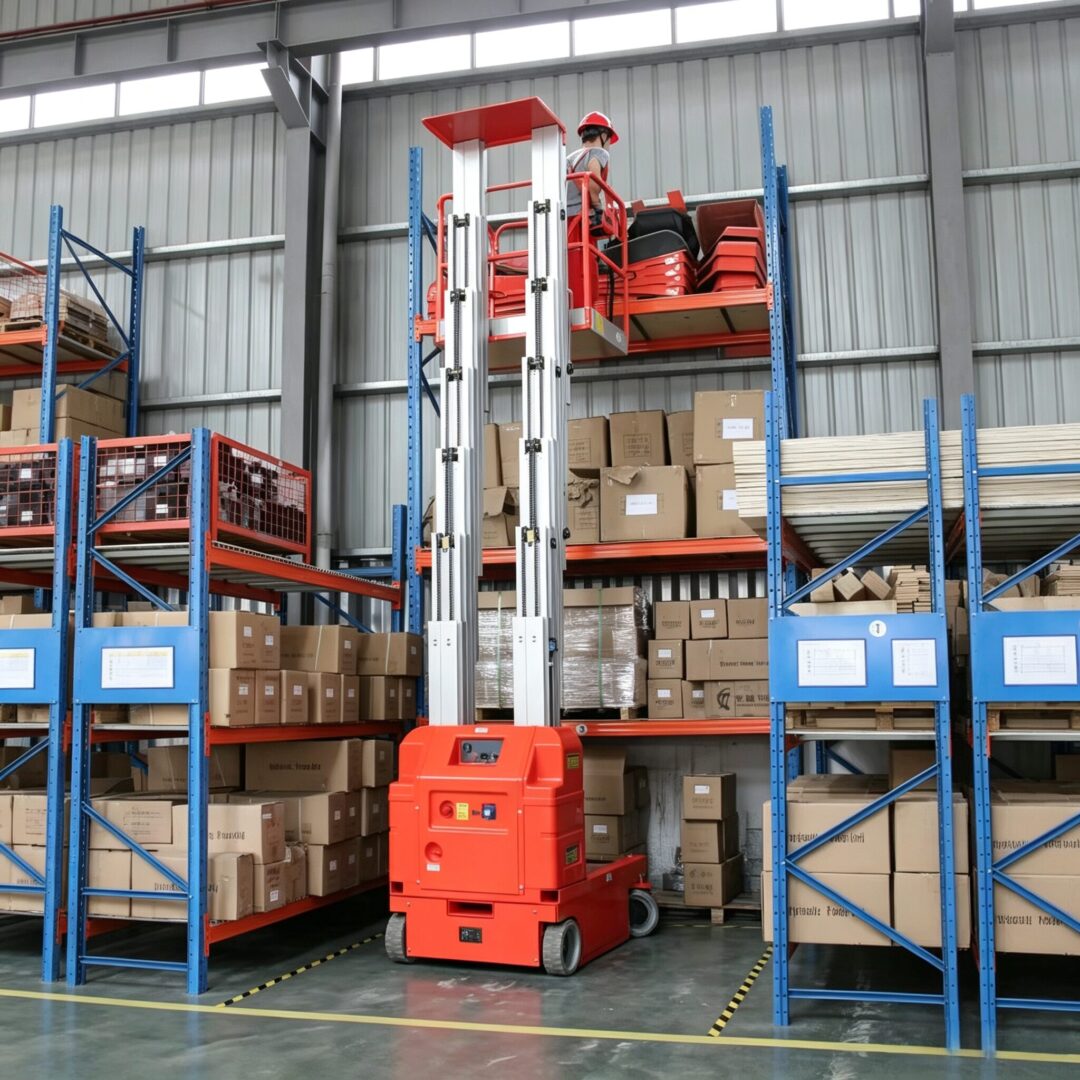

1、 Warehouse and logistics centers — high-rack inspection, inventory access, and conveyor maintenance
2、 Factory production halls — overhead lighting, piping, and equipment installation
3、 Shopping mall atriums and double-floor spaces — signage, lighting, and decoration work
4、 Office building lobbies and atriums — ceiling and HVAC maintenance in tall entrance halls
5、 Hotels, convention centers, and exhibition halls — chandelier, lighting, and rigging work
6、 Schools, libraries, and public buildings — auditorium and gymnasium ceiling maintenance
7、 Hospital and laboratory facilities — equipment installation and facility repairs
8、 Aircraft hangars and large industrial workshops — overhead access in spacious environments
