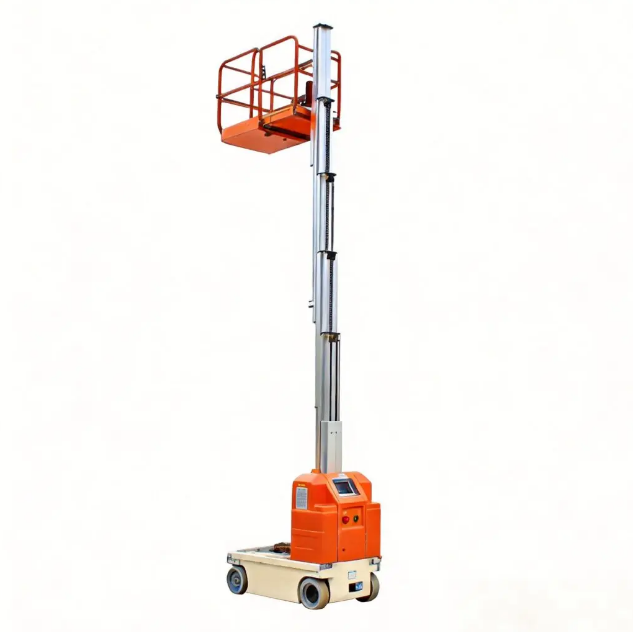

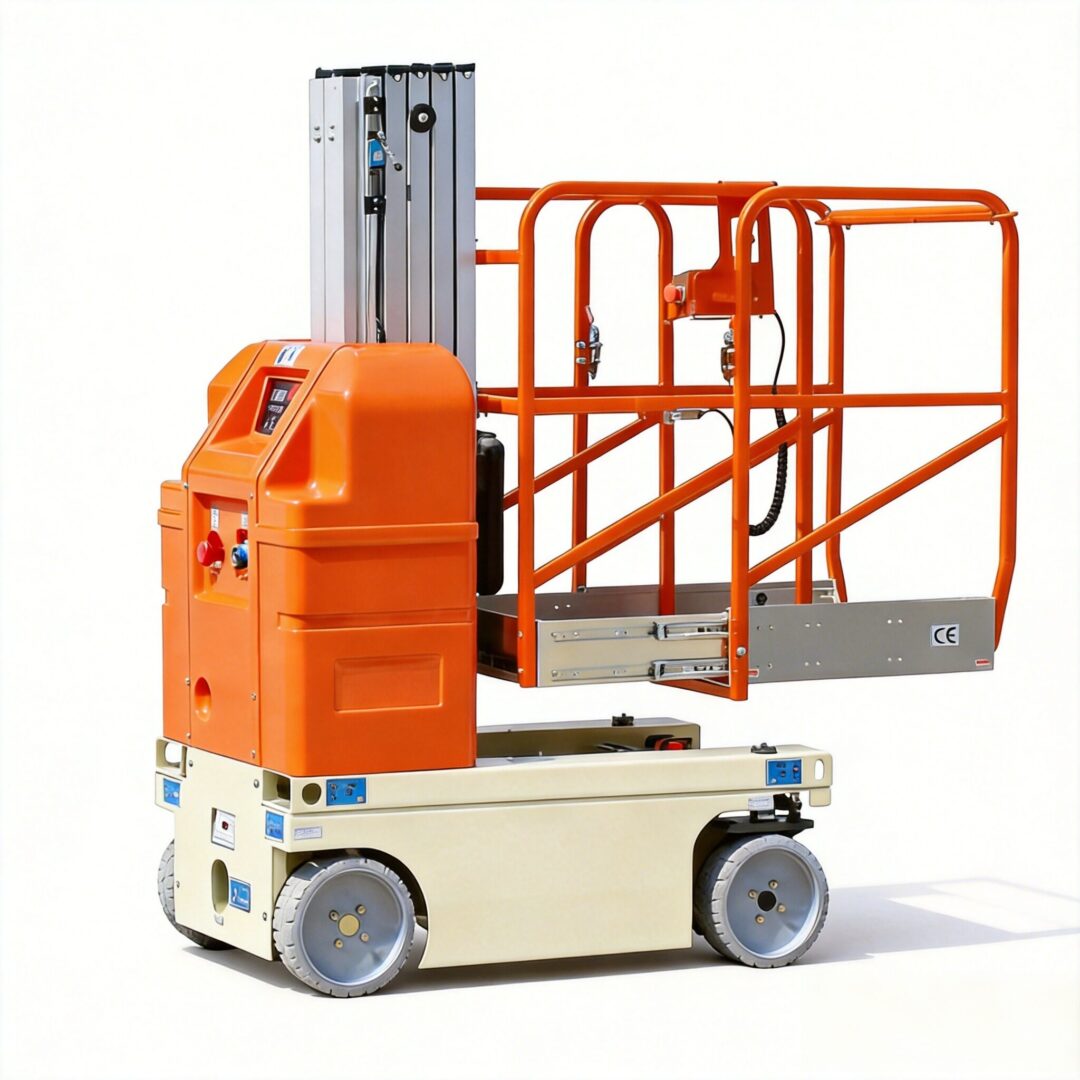

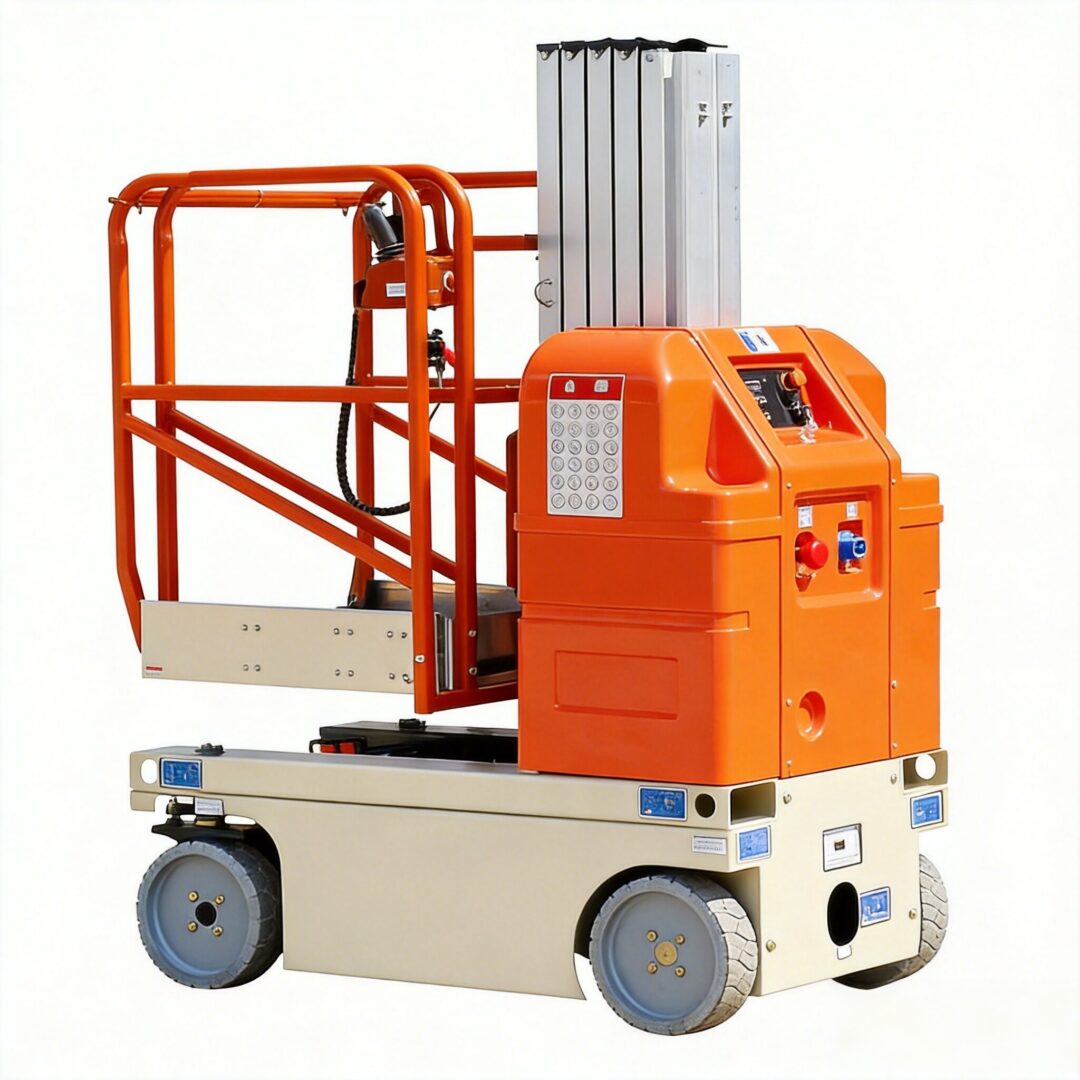

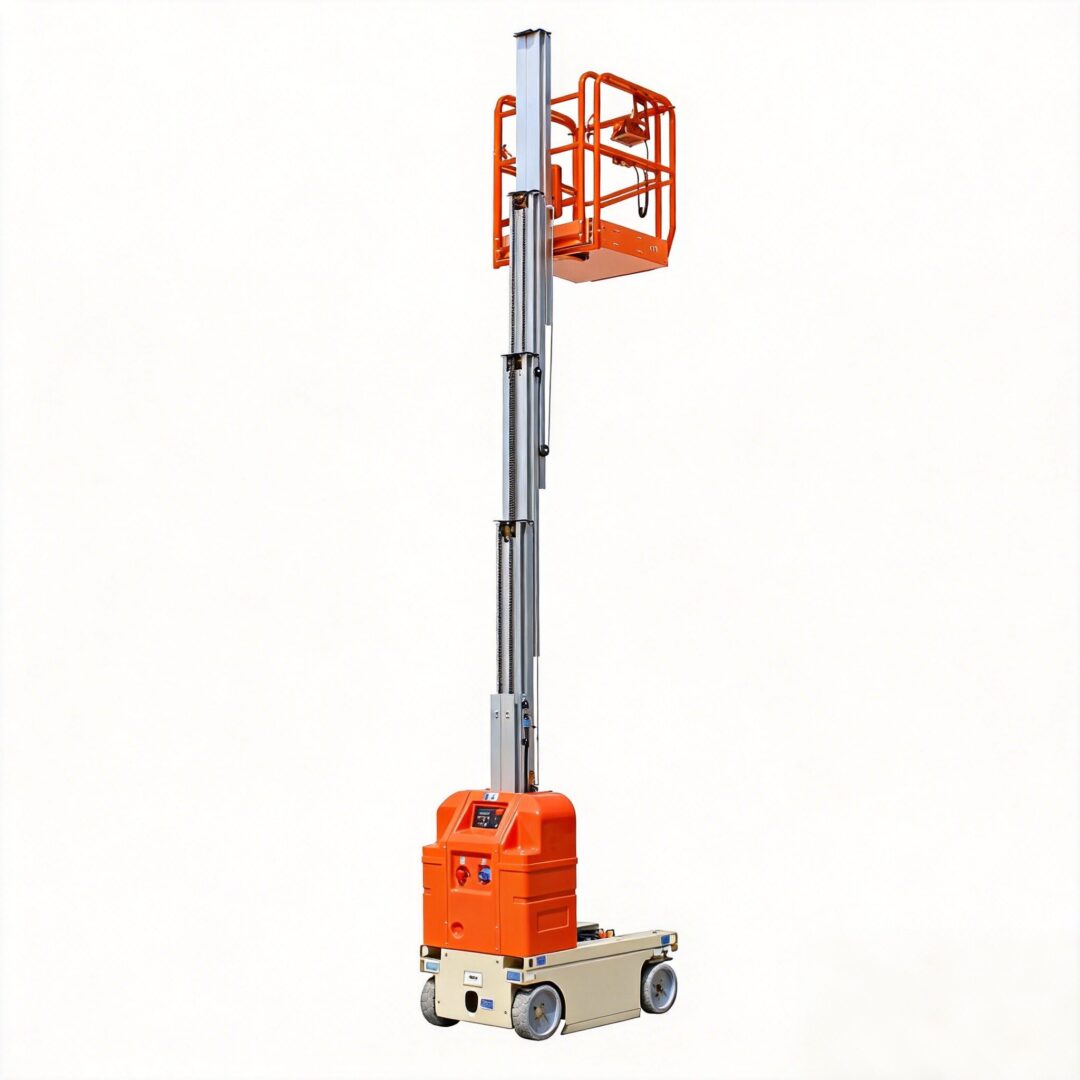

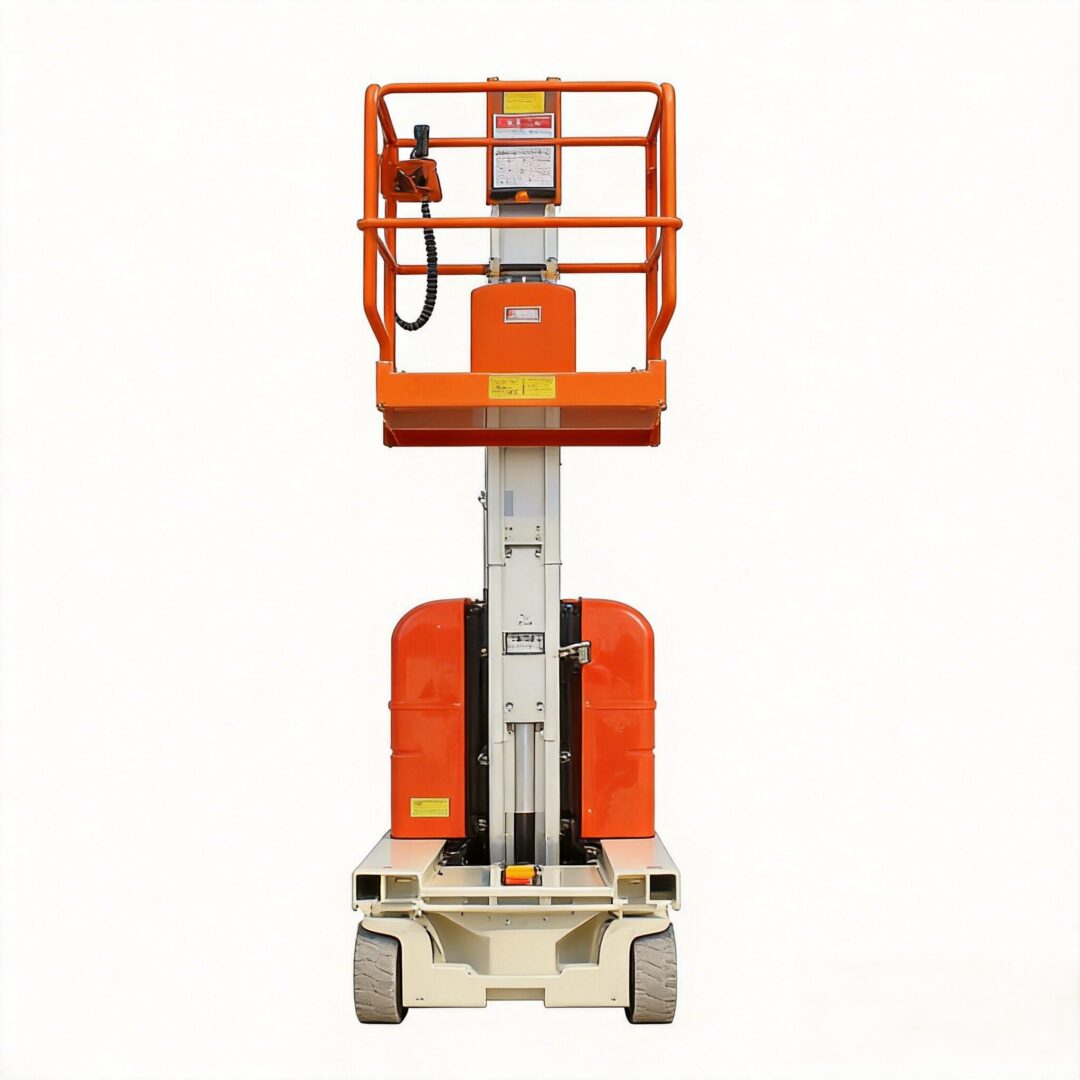

The mast – type lifting platform is a high – altitude working device with a compact structure and flexible operation. It adopts a high – strength aluminum alloy mast structure and achieves smooth lifting through a hydraulic and electric drive system. The equipment is characterized by its small size, light weight, and small turning radius, making it especially suitable for indoor narrow spaces and places with high requirements for ground bearing capacity.
Product and technical features:
1. Compact body, easily passing through narrow passages
2. Vertical lifting, precise positioning
3. All – electric drive, environmentally friendly
4. Simple operation, can be operated by a single person
5. Reliable safety performance
6. Low maintenance cost
7. High mobility
| Model | AMWP6-1100 | AMWP7.5-1100 |
| Max Working Height | 8.00m | 9.50m |
| Max Platform Height | 6.00m | 7.50m |
| Loading Capacity | 150kg | 125kg |
| Occupants | 1 | 1 |
| Dverall Length | 1.40m | 1.40m |
| Overall Width | 0.76m | 0.76m |
| Overall Height | 1.99m | 1.99m |
| Platform Dimension | 0.66m×0.67m | 0.66m×0.67m |
| Wheel Base | 1.07m | 1.07m |
| Gradeability | 25% | 25% |
| Drive Tyres | Φ305×100mm | Φ305×100mm |
| Drive Motors | 2×24VDC/0.5kW | 2×24VDC/0.5kW |
| Lifting Motor | 24VDC/1.2kW | 24VDC/1.2kW |
| Battery | 2×12V/100Ah | 2×12V/100Ah |
| Charger | 24V/15A | 24V/15A |
| Weight | 1120kg | 1190kg |
The mast – type lift provides a safe, efficient and cost – effective solution for indoor high – altitude operations. It has a small footprint, features smooth vertical lifting, and is equipped with a zero – emission electric drive system, making it an ideal choice for warehouses, shopping malls, airports, factories and maintenance tasks.

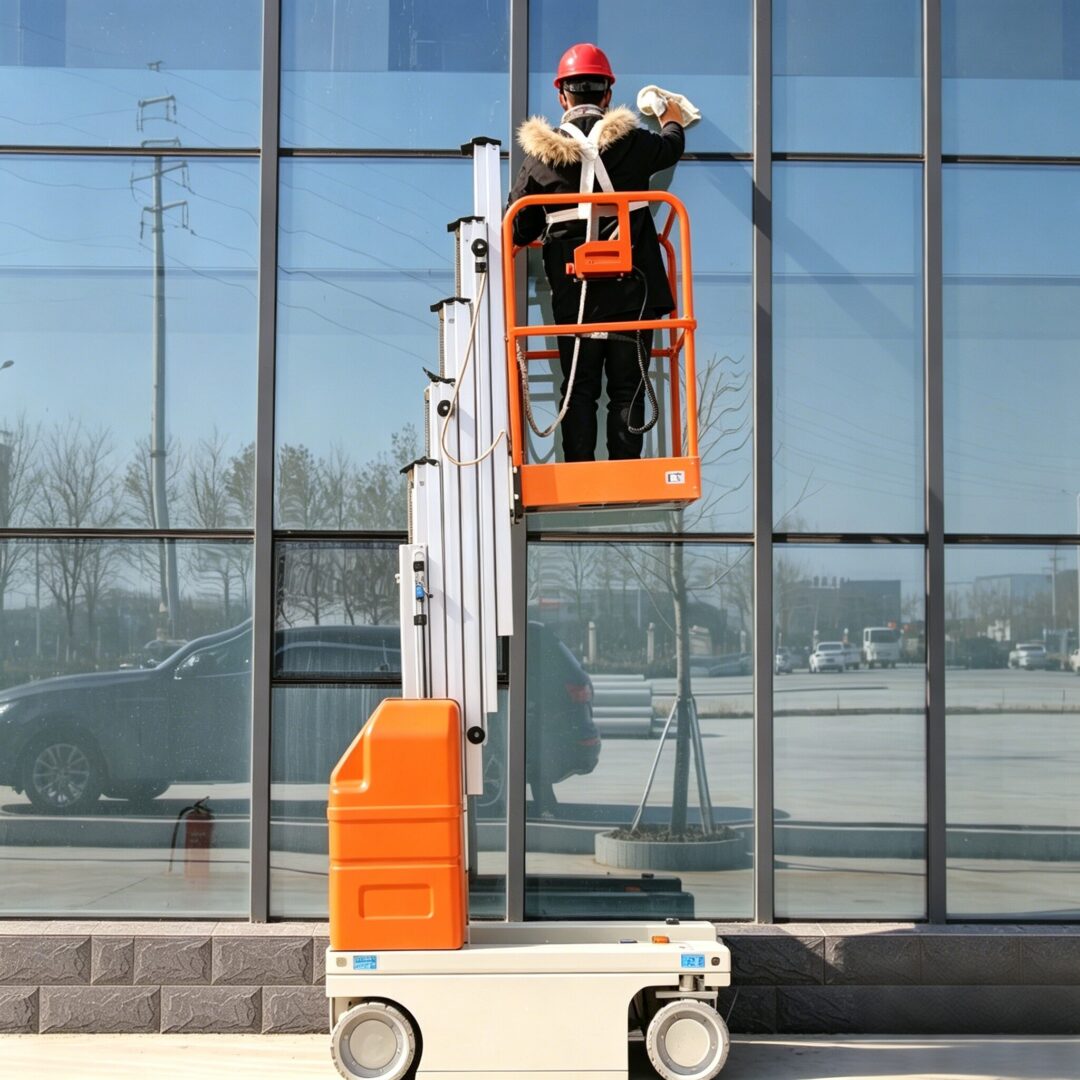

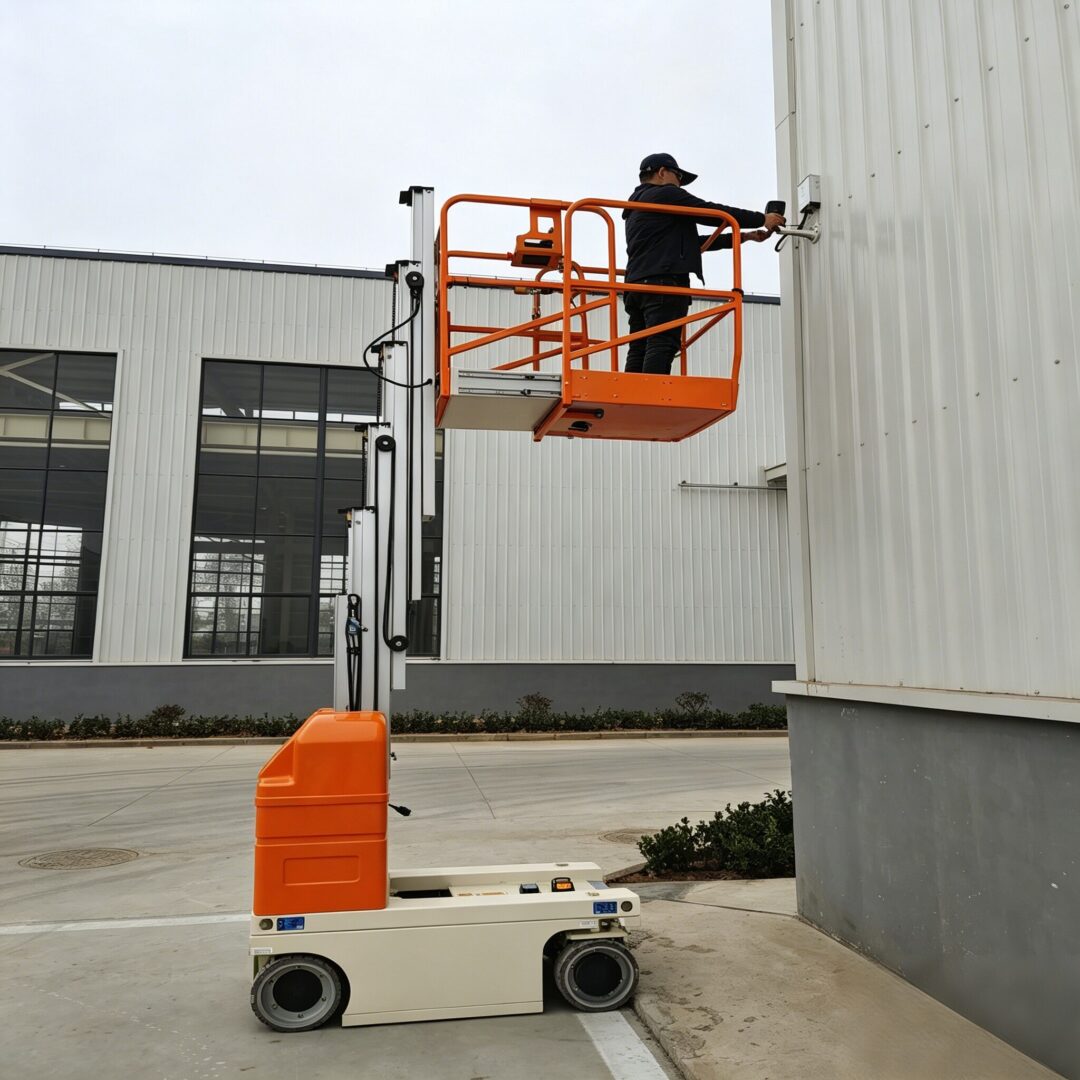

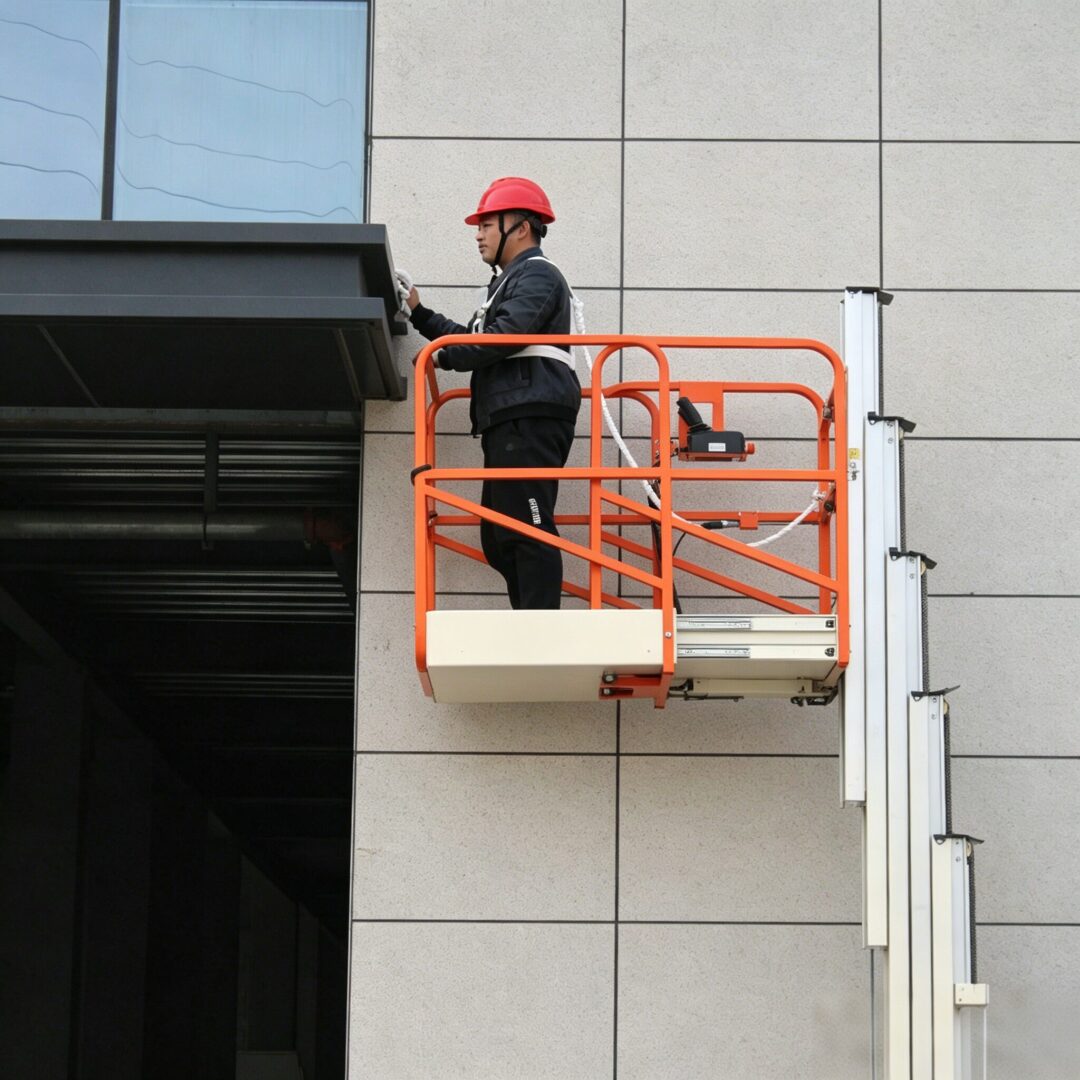

Main Applications:
1、Warehouse rack installation
2、Factory equipment maintenance

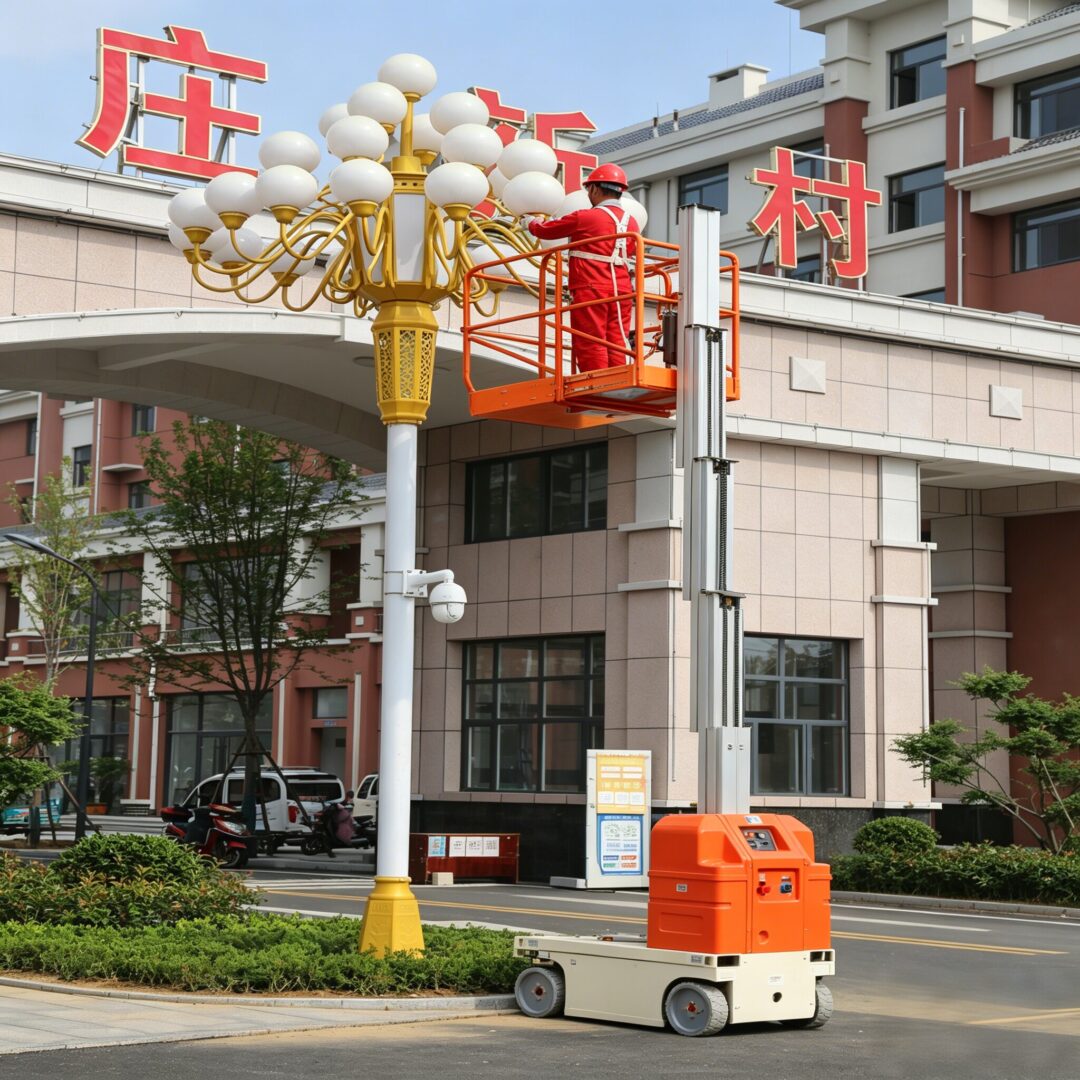

3、Lighting maintenance in shopping malls and supermarkets
4、Hotel and hospital facility maintenance
5、Equipment installation in airports and stations
