Crawler-mounted forklift-style mast platform

SDEAST Crawler-Mounted Forklift-Style Mast Lift with Jib

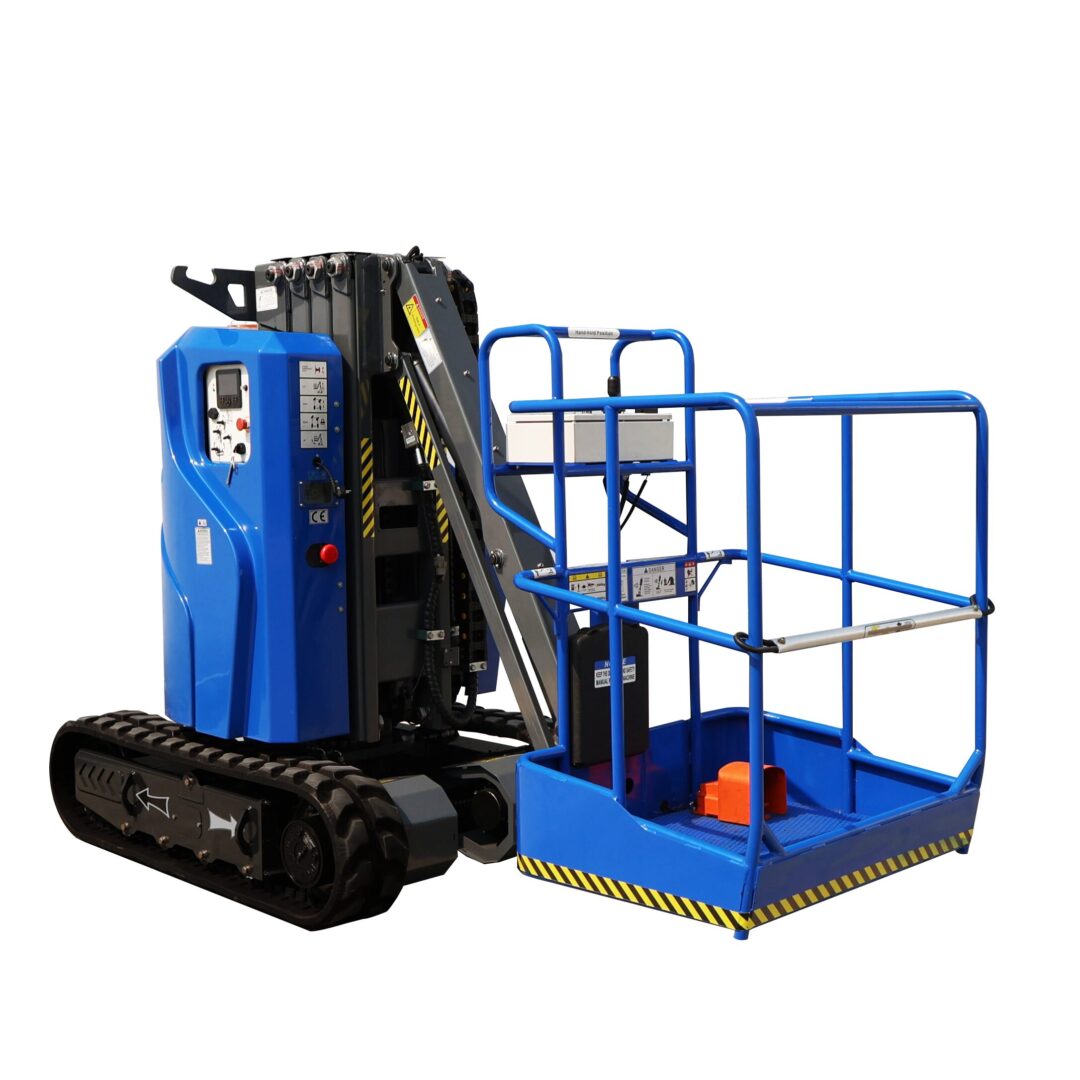

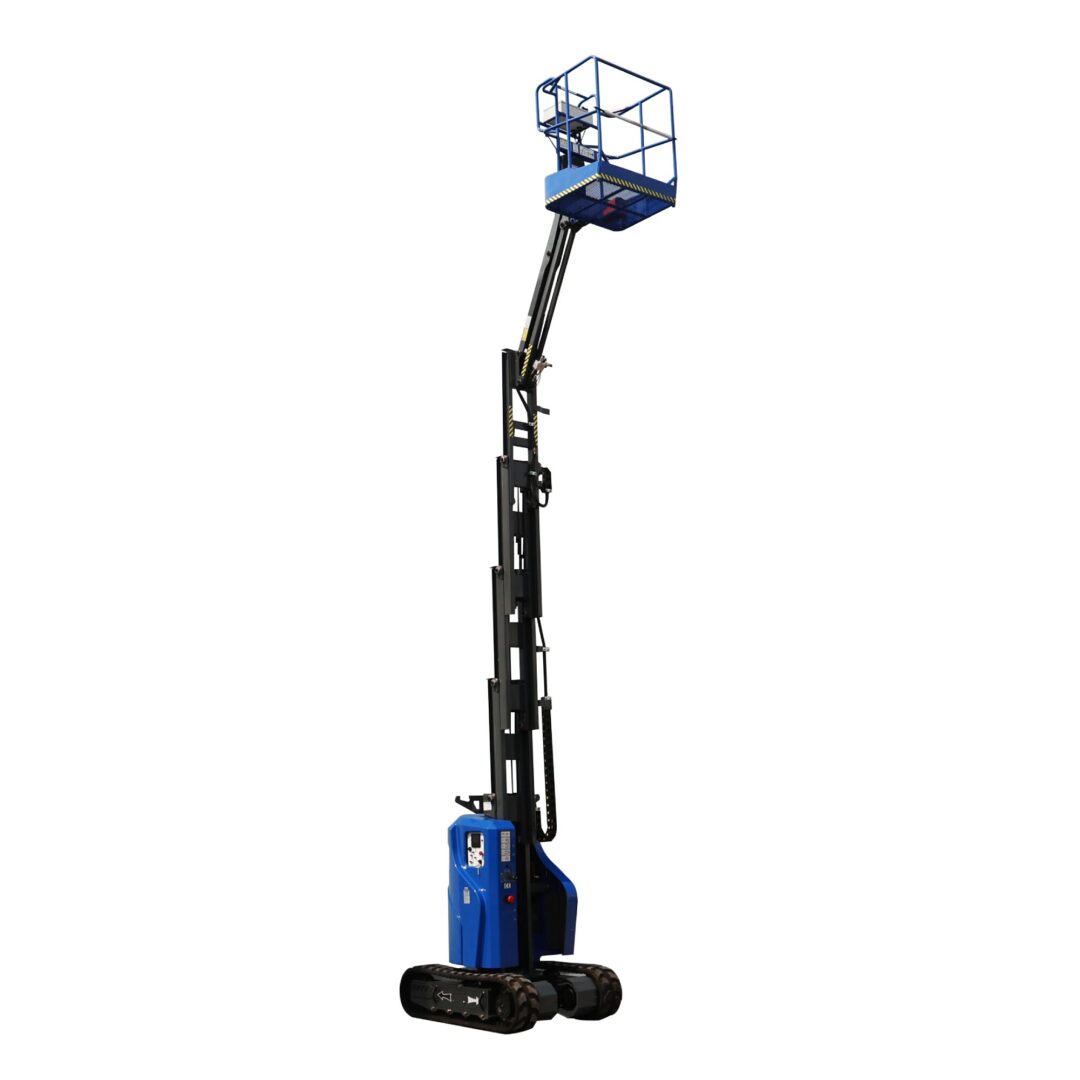

A crawler mounted forklift-style mast lift with jib is built for outdoor sites that need both vertical reach and horizontal outreach. The TBL-8 and TBL-10 combine a sturdy forklift-style chassis, a 48V high-power battery system, and a 250 mm rubber crawler undercarriage, so they travel on grass, gravel, compacted dirt, and finished surfaces without losing traction or leaving deep marks. The 120° articulating jib and 220° turret swing let operators reach over machinery, walls, and structural obstacles from a single chassis position.
With working heights of 8.9 m and 9.9 m, the TBL-8 and TBL-10 cover most two-story maintenance, rigging, and signage jobs. The 48V drive and lift motors deliver smoother control, faster travel, and longer duty cycles than 24V compact crawlers, while the 200 kg platform handles two workers with tools. The 1.2 m chassis fits through standard gates and doorways, and the 220° swing makes it efficient in narrow layouts.

Key Advantages:

120° jib articulation plus 220° turret swing — wide work envelope without repositioning
Up to 9.9 m working height and 6.4 m up-and-over reach — clear structural obstacles
48V/3 kW drive and lift motors — powerful, smooth, and efficient operation
250 mm rubber crawler tracks — stable traction on grass, gravel, and uneven ground
Low ground pressure — protects finished floors, pavers, and landscaped areas
20% gradeability — handles ramps, slopes, and lightly prepared job sites
2 m compact chassis — fits through standard gates and indoor doorways
200 kg platform with 0.8 × 0.94 m working area — two workers with tools
Safety and service features — emergency lowering, overload protection, swing-out covers

Specifications

型号/MODEL	TBL-8	TBL-10
最大工作高度Max.Working Height	8.9m	9.9m
最大平台高度Max.Platform Height	6.9m	7.9m
最大作业半径Working Outreach	3.36m	3.61m
整机长度Overall Length	2.87m	2.97m
整机宽度Overall Width	1.2m	1.2m
整机高度(收拢状态)Overall Height(stowed)	1.99m	2.14m
提升及越过高度Upand over height	5.5m	6.4m
平台尺寸Platform Dimension	0.8*0.94m	0.8*0.94m
离地间隙(收拢状态)Ground Clearance(Stowed)	80mm	80mm
离地间隙(起升状态)Ground Clearance(Raised)	80mm	80mm
轴距Wheelbase	1.23m	1.23m
裁重Loading Capacity	200kg	200kg
最大工作人数Occupants	2	2
小臂摆动幅度Jib-Range of Articulation	120°	120°
轮台回转角度Swing	220°	220°
最大工作角度Max.Allowance Tilt Angle	X-2°Y-2°	X-2°Y-2°
行驶速度(收拢状态)Travel Speed(Stowed)	1.8km/h	1.8km/h
行驶速度(起升状态)Travel Speed(Raised)	0.8km/h	0.8km/h
最大爬坡能力Gradeability	20%	20%
履带Track	250mm	250mm
驱动电机Driving Motor	48V/3kw	48V/3kw
起升电机ifting Motor	48V/3kw	4BV/3kw
电池Battery	48V/220Ah	48V/220Ah
充电器Charger	48V/35A	48V/35A
整机重量Weight	2980kg	3300kg

Certifiicates

Applications

A crawler mounted forklift-style mast lift with jib is designed for jobs that need outdoor reach, horizontal outreach, and stable traction on soft or uneven surfaces. The 48V power system supports longer shifts, and the tracked undercarriage lets the machine work on landscaped and finished sites without damage.

Main Applications:

Construction site finishing work — Carpenters, electricians, and HVAC contractors can finish facades, soffits, and roof details on sites that are not fully paved. The crawler tracks and 1.2 m chassis get into tight lots without preparing a concrete pad first.
Outdoor signage and billboard installation — The 120° jib and 220° swing make installing sign faces and lighting fixtures easy from one position. Crews can work alongside roads and on grass without lifting the billboard by hand.

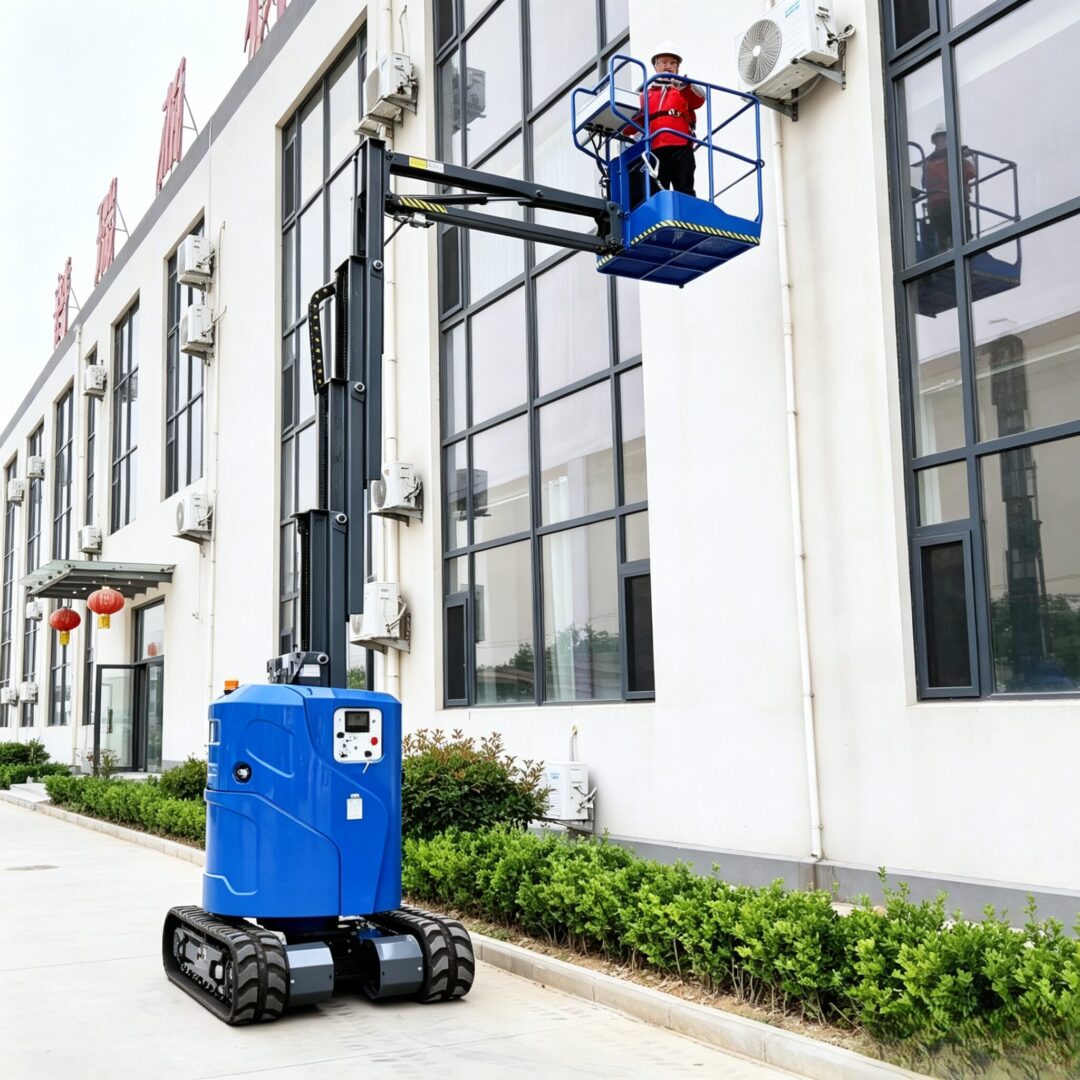

Building exterior and facade maintenance — Window cleaning, paint touch-ups, and gutter repairs on two-story commercial buildings are routine jobs. The TBL-8 and TBL-10 cover most residential and light commercial facade heights.
Tree care and arborist support — Lighting, decoration, and minor pruning support work near trees benefit from a low ground pressure base. The crawler undercarriage avoids tearing up lawns and root beds.
Event and festival rigging — Outdoor concerts, sports events, and festivals need temporary lighting and signage. The tracked lift rolls across grass and gravel to rig truss and banners without ground protection.

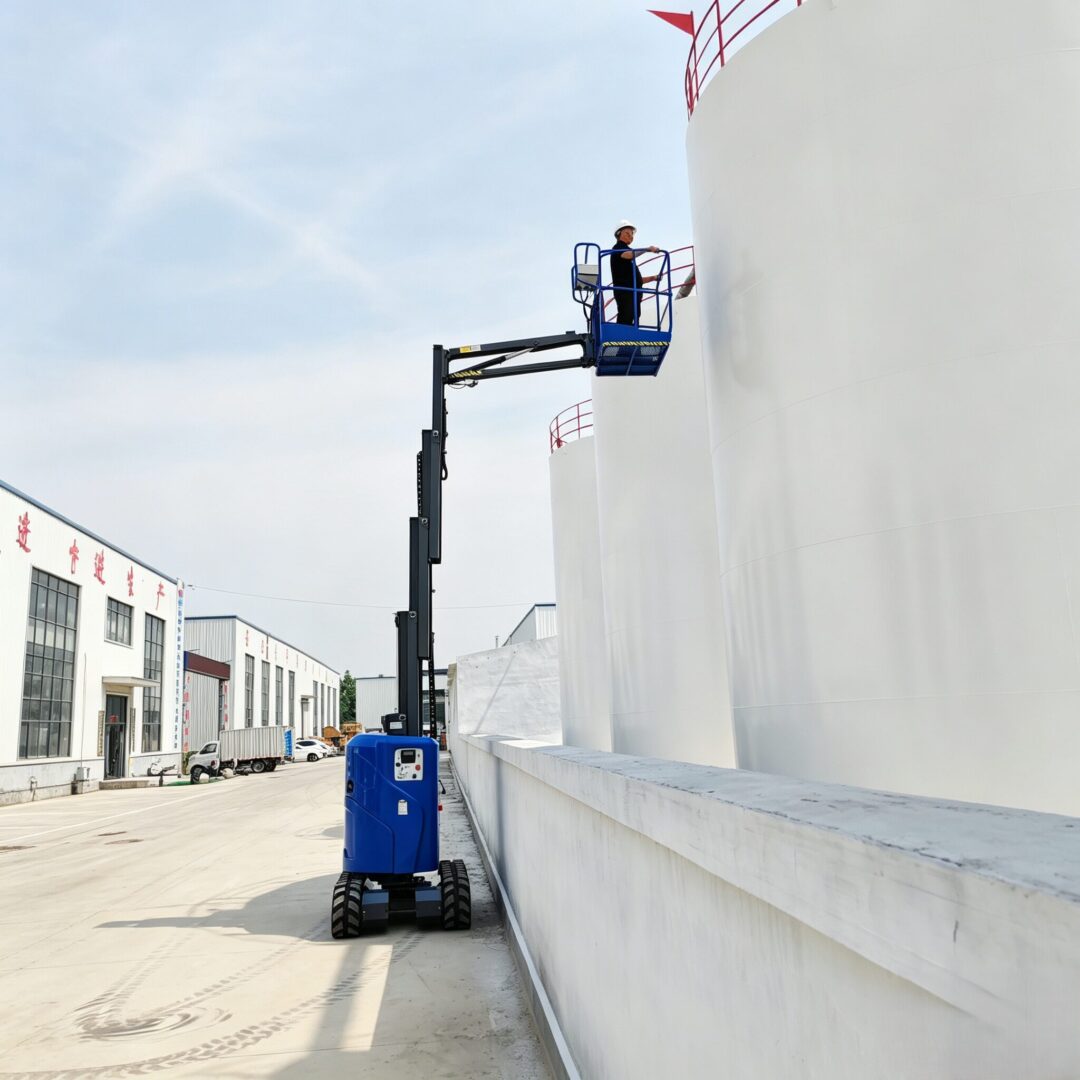

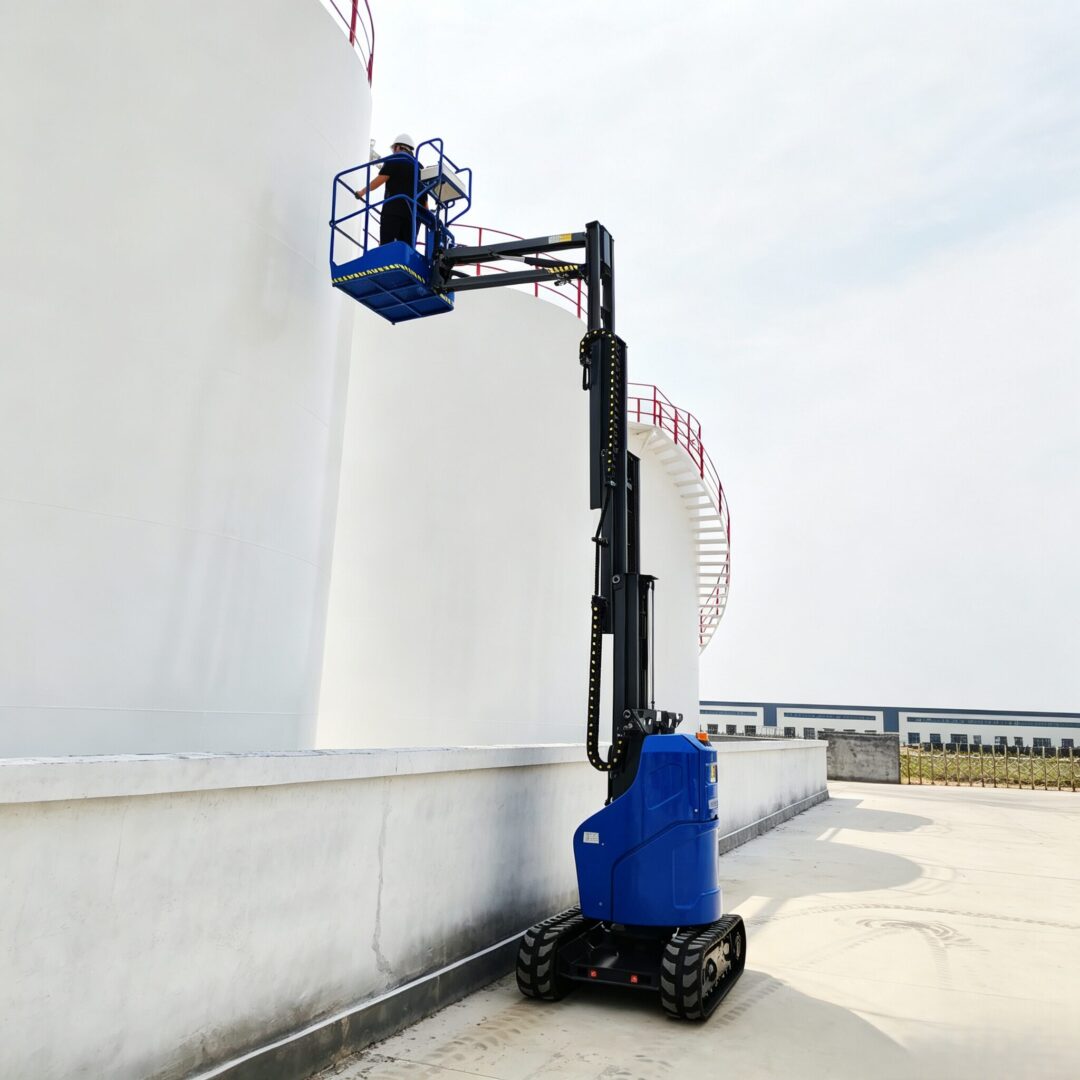

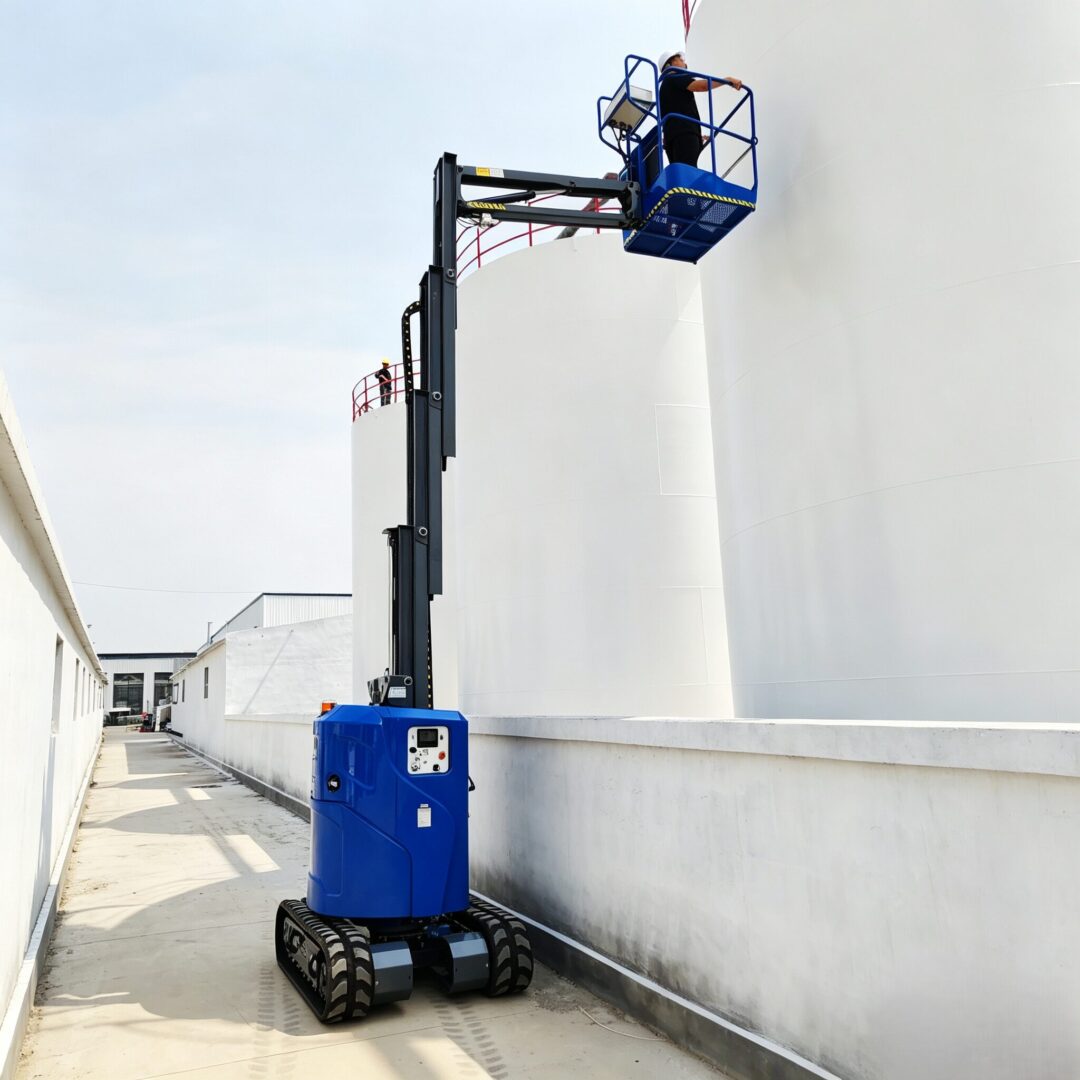

Industrial site inspection and maintenance — Refineries, power plants, and manufacturing yards have gravel roads and prepared surfaces. The 48V system handles long outdoor shifts, while the jib reaches over pipe racks and equipment.
Municipal and park maintenance — Streetlights, traffic cameras, park lighting, and seasonal decorations on park structures are easy with the wide working envelope and stable crawler base.
Warehouse and logistics yard maintenance — Loading bays, container yards, and distribution centers often have uneven concrete or asphalt. The crawler undercarriage handles transition zones that stop wheeled lifts.
