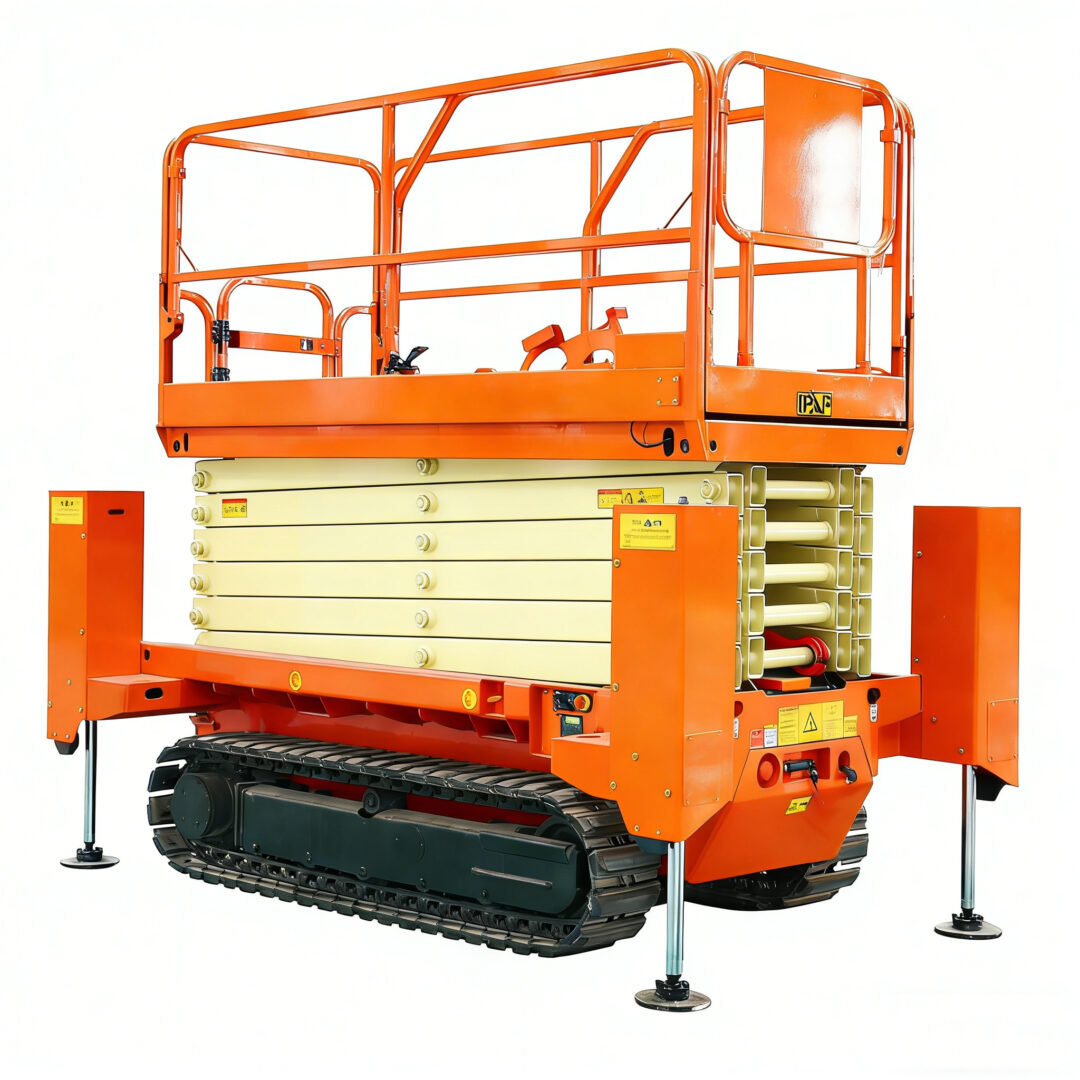

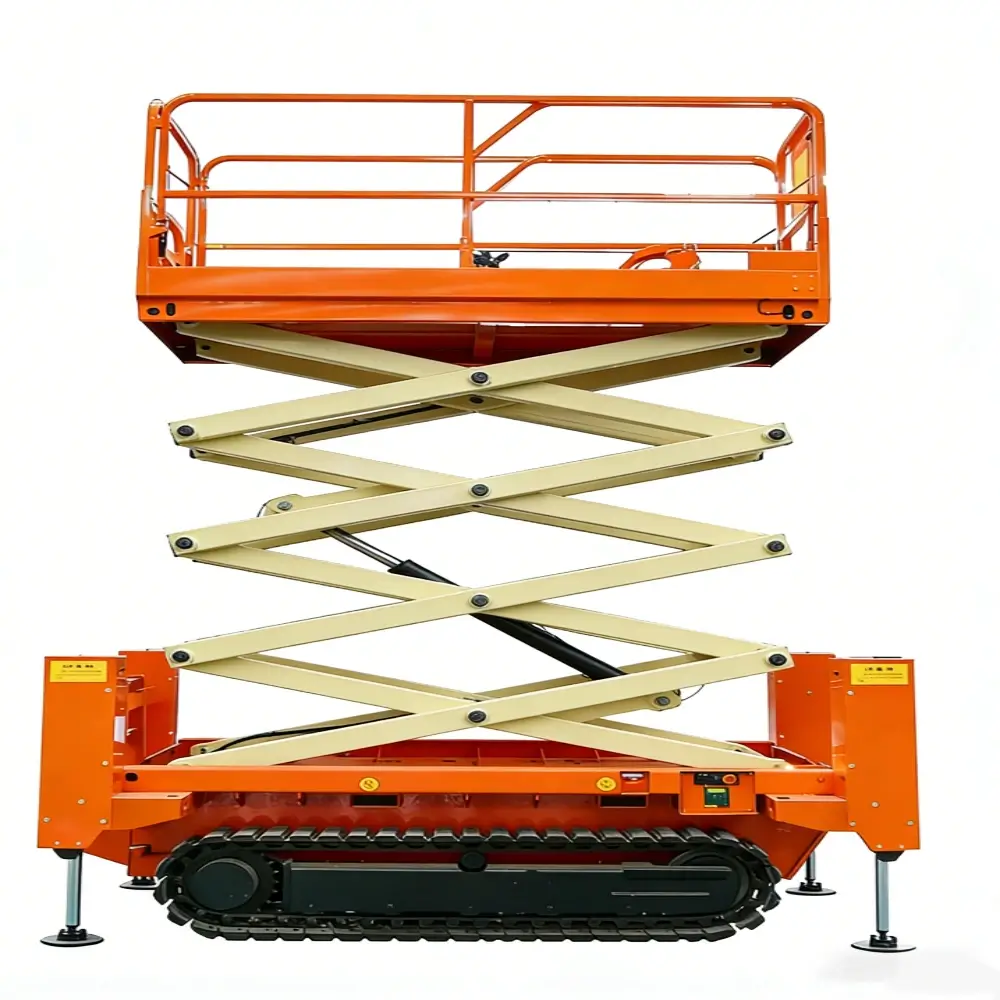

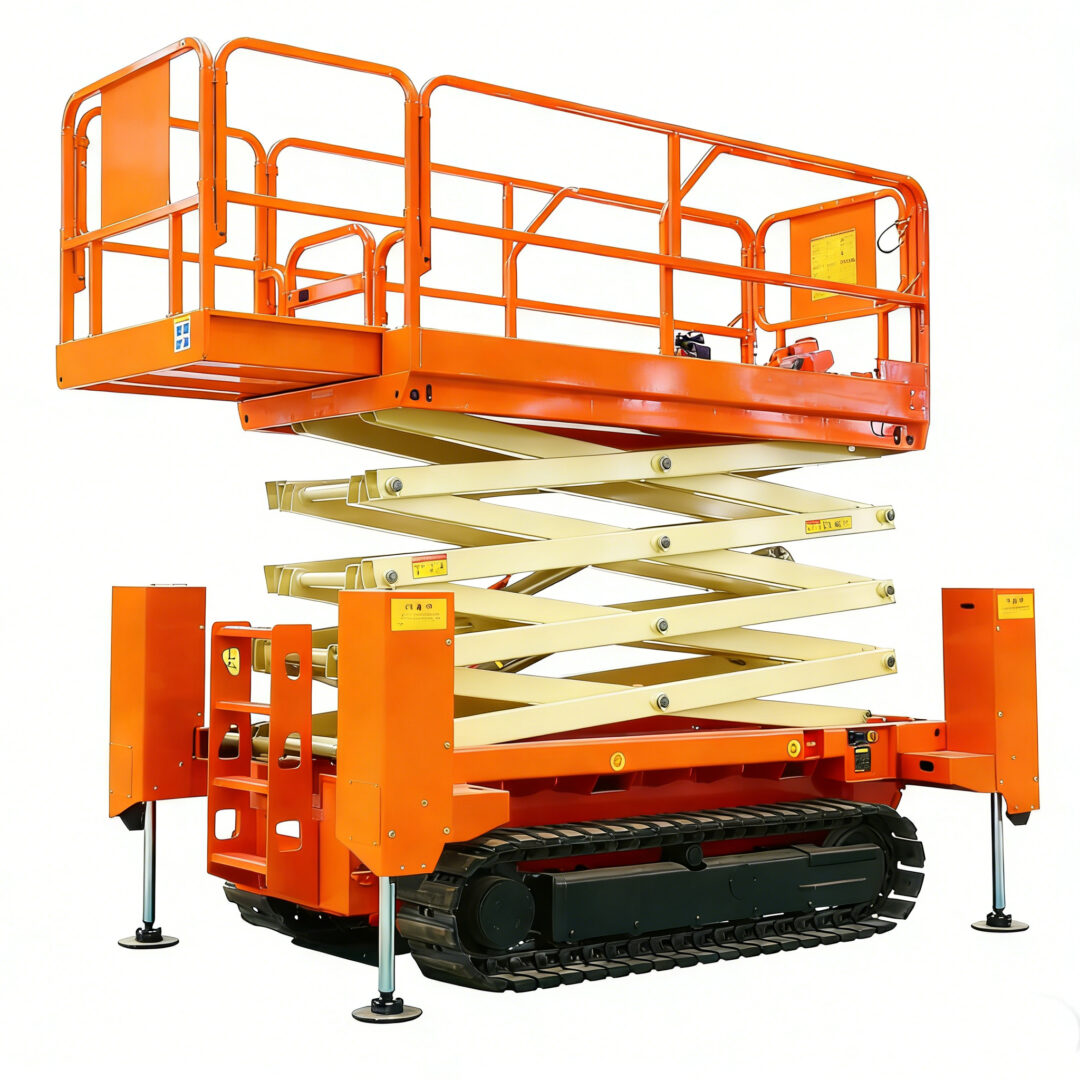

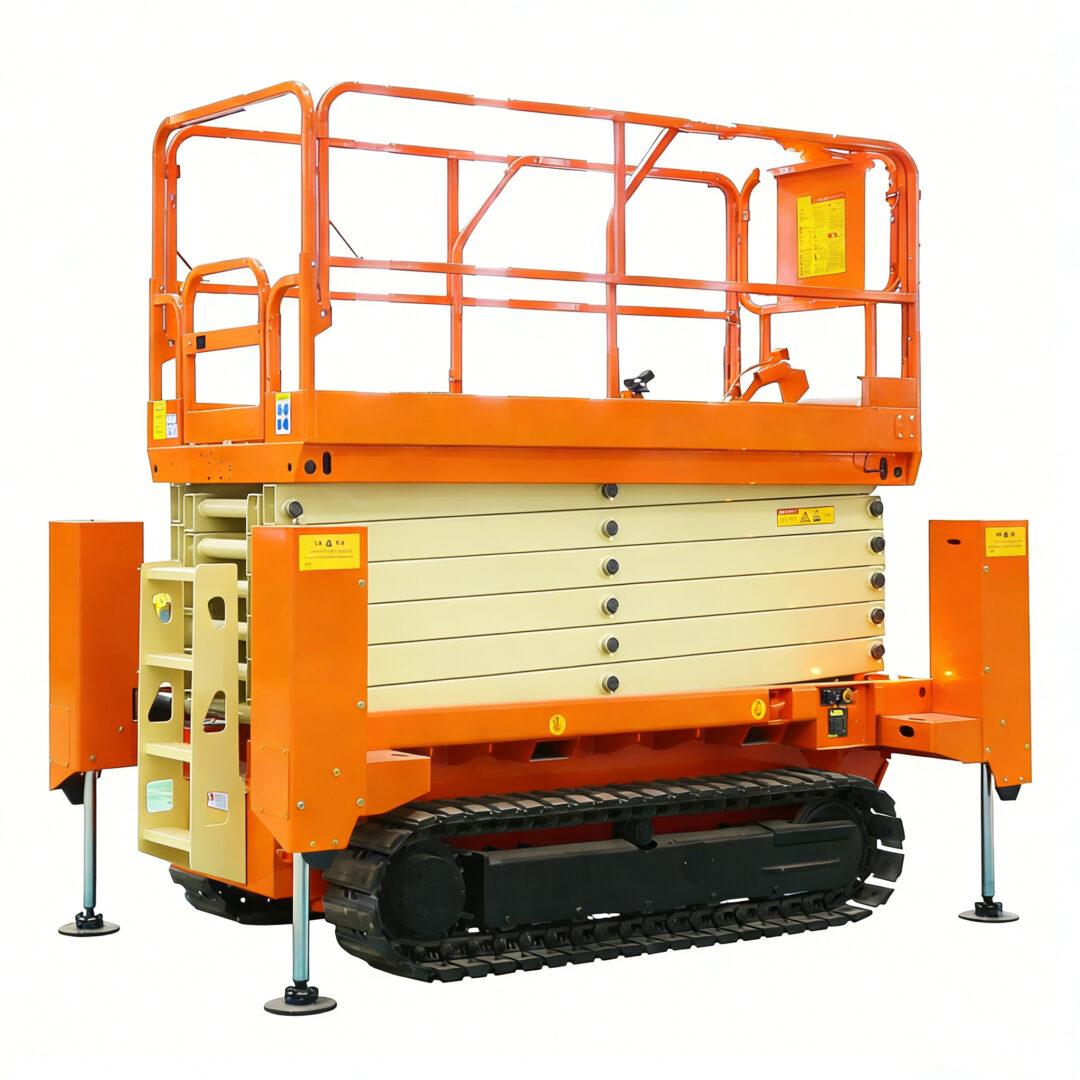

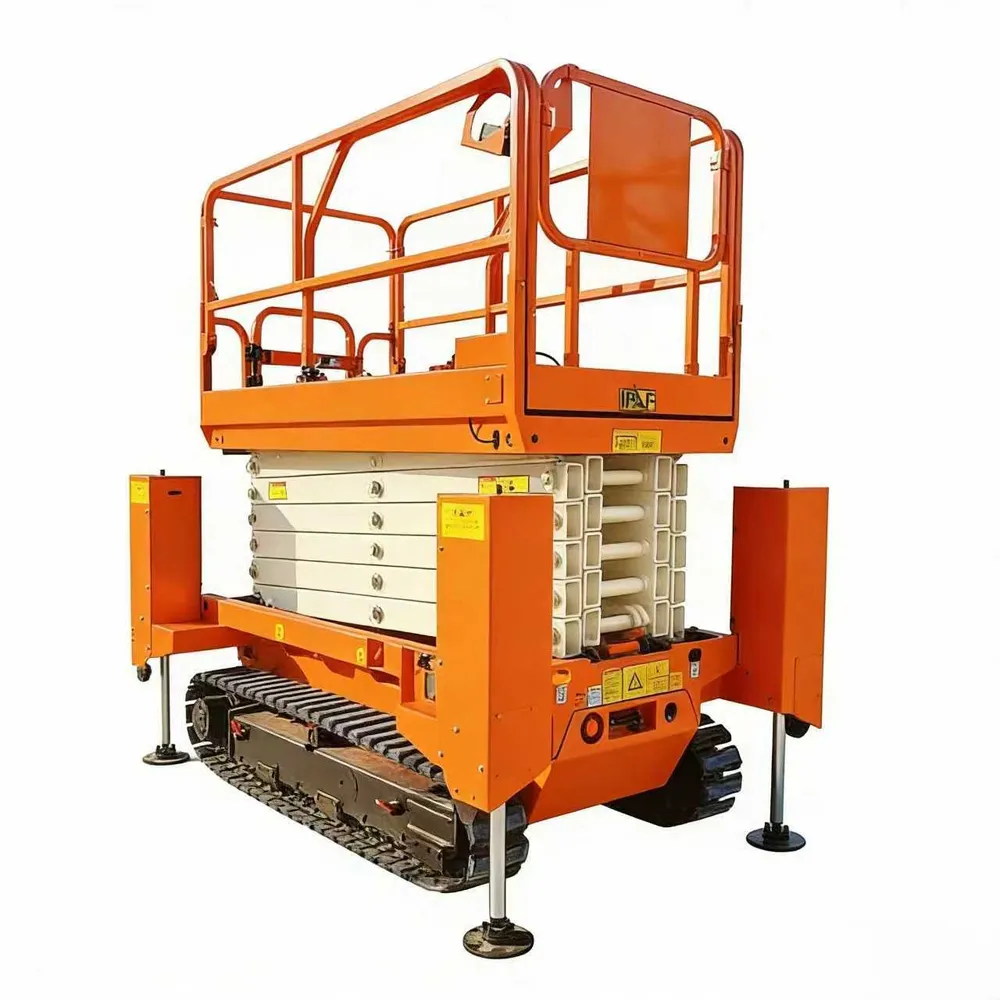

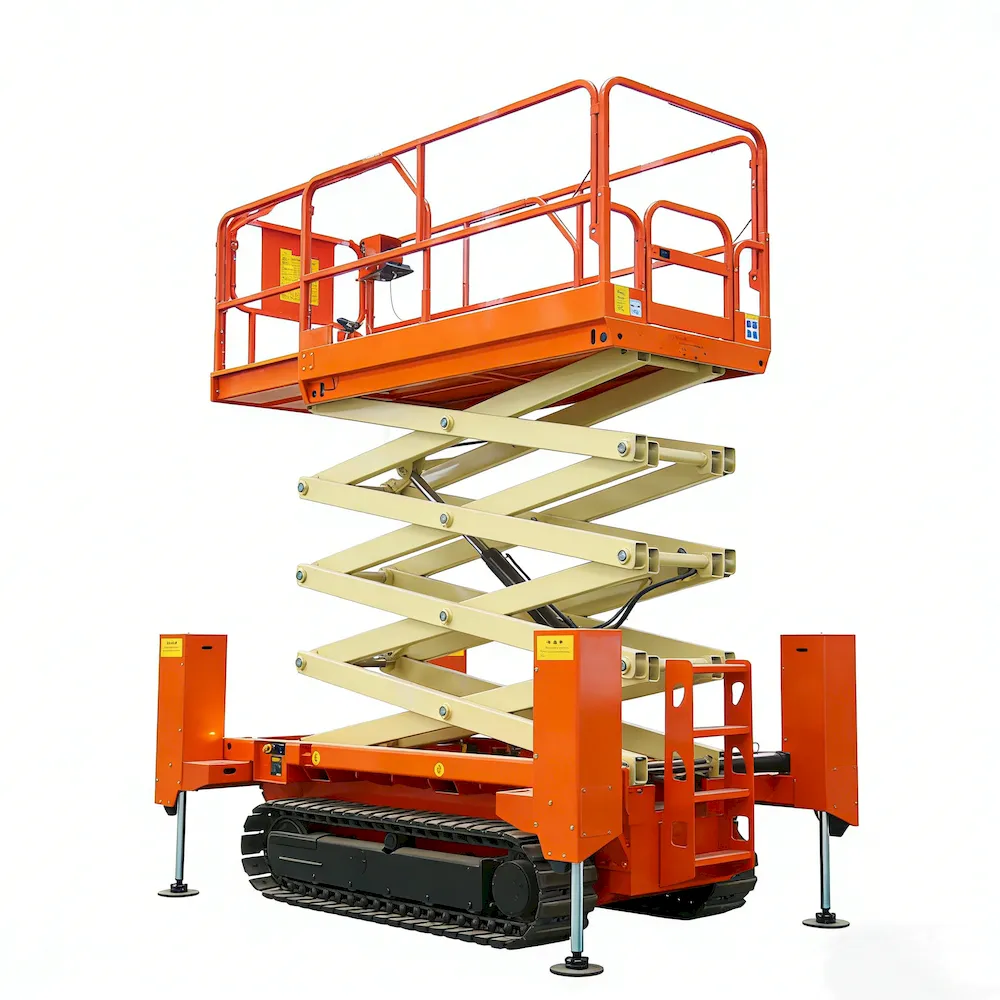

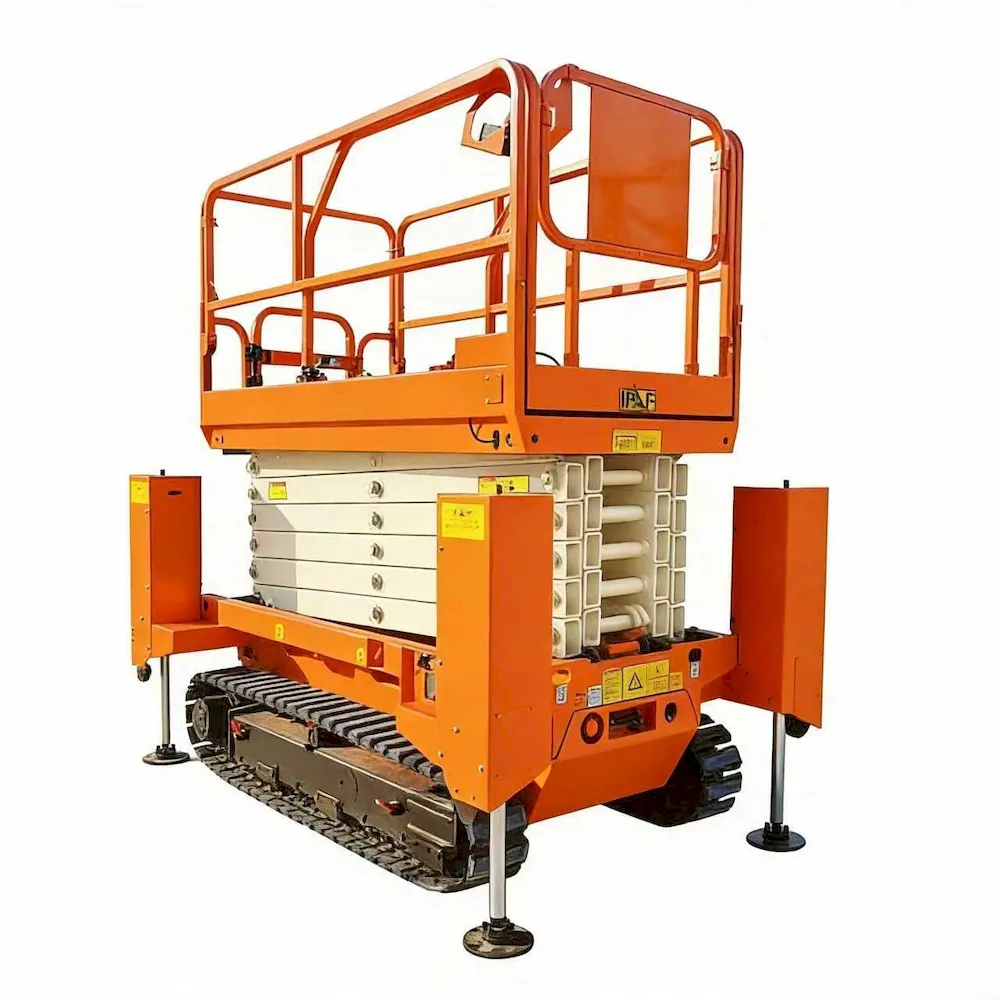

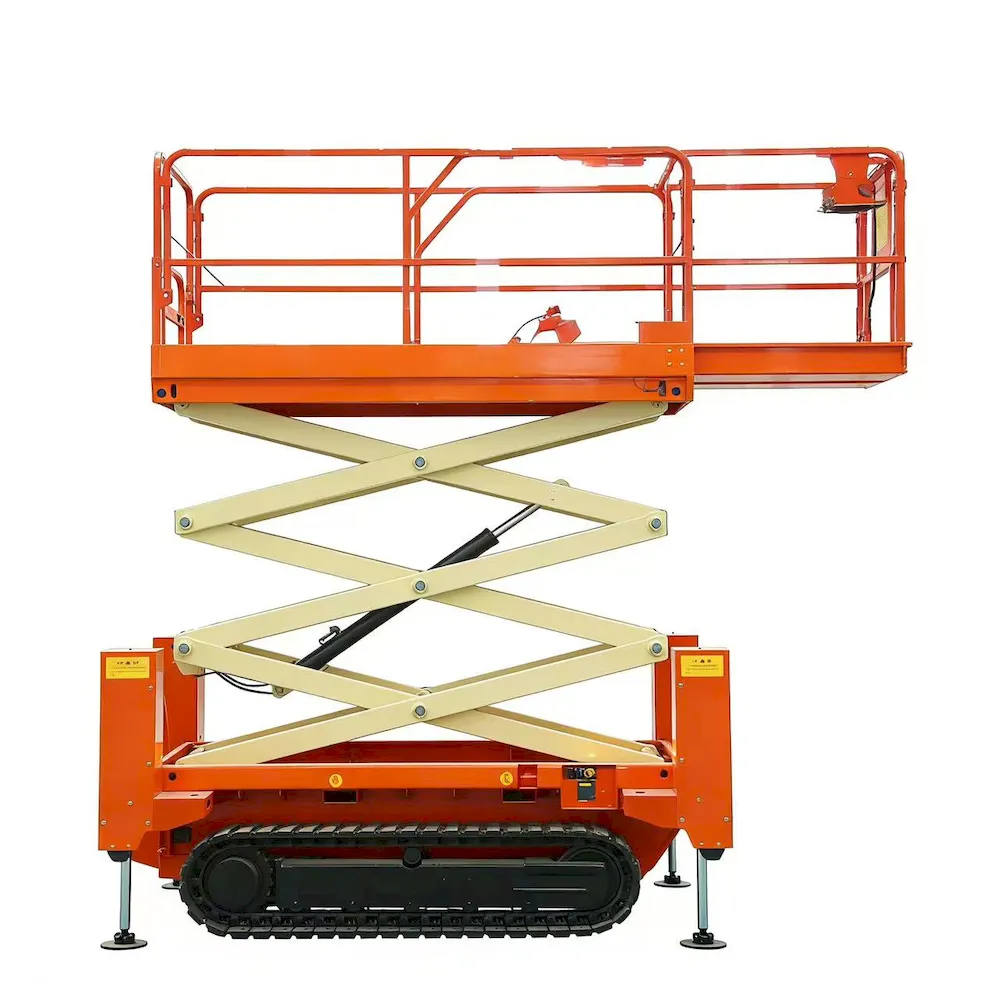

The tracked scissor lift adopts a rubber track design, offering low ground pressure and strong passability. It can operate stably on muddy, sandy, grassy, and other complex surfaces, making it suitable for applications with high ground protection requirements.It can also be equipped with steel tracks for enhanced durability and performance in harsh working conditions.
Product and technical features:
1、The footrest extension platform can be quickly deployed to the work site.
2、The foldable fence reduces the overall machine volume.
3、Facilitates operation in tight spaces.
4、30% climbing capacity for smooth travel up slopes.
5、Drawer-type chassis for easy maintenance.
6、Automatic fault code display for convenient troubleshooting.
7、Suitable for uneven and other special terrains.
| Basic Parameters of Crawler-Type Lifting Work Platform Products | |||||
| Model | ESJYL-0608 | ESJYL-0810 | ESJYL-1012 | ESJYL-1214 | ESJYL-1416 |
| Work Platform | 2300*1170mm | 2300*1170mm | 2300*1170mm | 2300*1170mm | 2700*1170mm |
| Overall Dimensions | 3.0m*1.75m*1.94m | 3.0m*1.75m*1.94m | 2.95m*1.75m*1.94m | 2.90m*1.75m*2.05m | 3.2m*1.95m*2.05m |
| Minimum Height | 1650mm (excluding guardrail) | 1820mm (excluding guardrail) | 1900mm (excluding guardrail) | 2050mm (excluding guardrail) | 2050mm (excluding guardrail) |
| Maximum Platform Height | 6m | 8m | 10m | 12m | 14m |
| Maximum Working Height | 8m | 10m | 12m | 14m | 16m |
| Rated Load | 320kg | 320kg | 320kg | 320kg | 320kg |
| Lift Pump Motor Power | 48V/4.0kW | 48V/4.0kW | 48V/4.0kW | 48V/4.0kW | 48V/4.0kW |
| Crawler Track | 350mm*2500mm | 350mm*2500mm | 350mm*2500mm | 350mm*2400mm | 230mm*2250mm |
| Platform Base Frame | 8.0mm steel plate | 8.0mm steel plate | 8.0mm steel plate | 8.0mm steel plate | 8.0mm steel plate |
| Travel Method | Hydraulic motor drive | Hydraulic motor drive | Hydraulic motor drive | Hydraulic motor drive | Hydraulic motor drive |
| Movement Method | Fully automatic crawler travel | Fully automatic crawler travel | Fully automatic crawler travel | Fully automatic crawler travel | Fully automatic steel crawler travel |
| Equipment Weight | 2800kg | 3000kg | 3000kg | 3000kg | 3500kg |
| Lifting Speed | 4.5m/min | 4.5m/min | 4.5m/min | 4.5m/min | 4.5m/min |
| Moving Speed | 0.8km/min | 0.8km/min | 0.8km/min | 0.8km/min | 0.8km/min |
Applications & Working Fields of Tracked Scissor Lifts

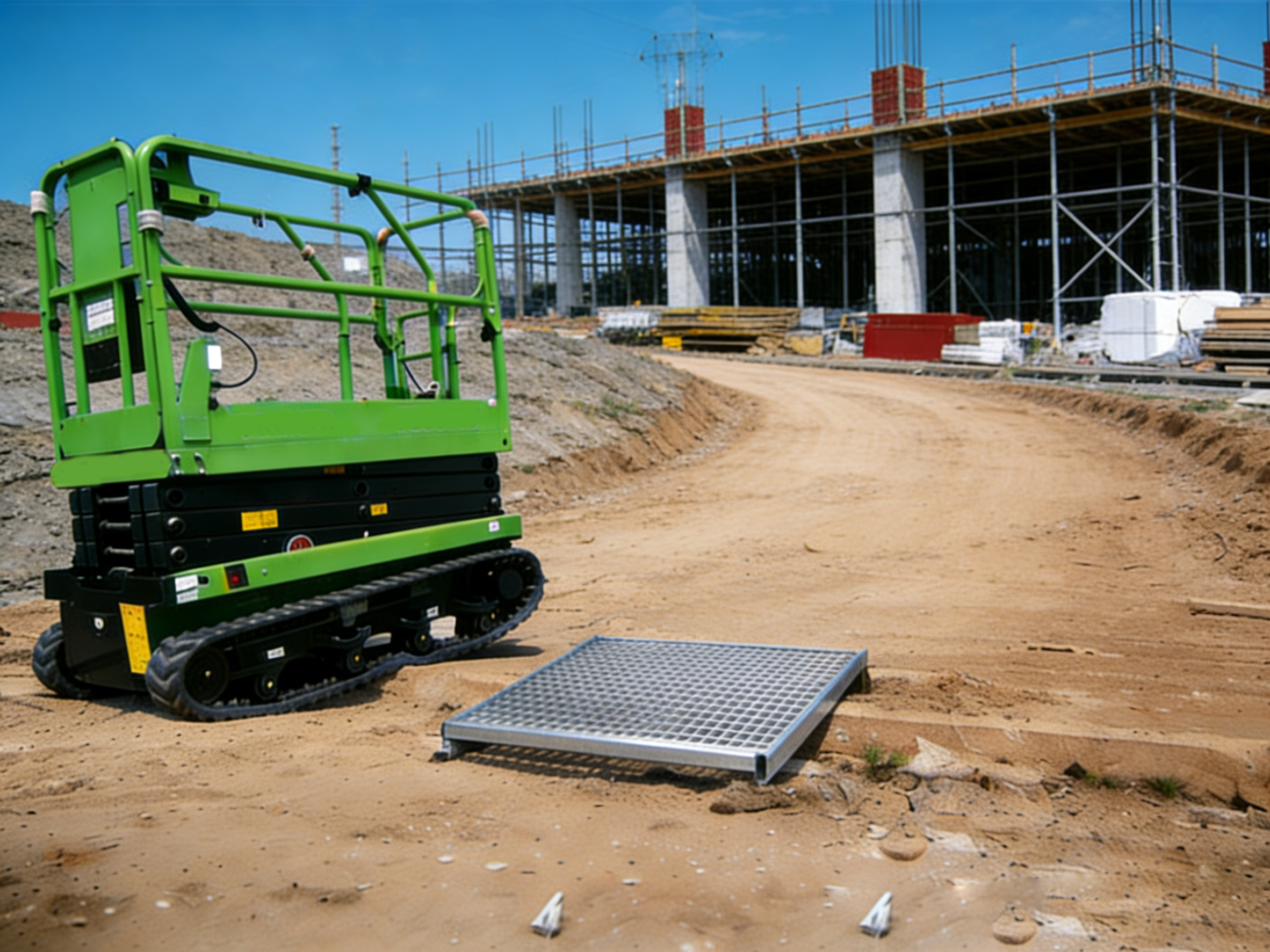

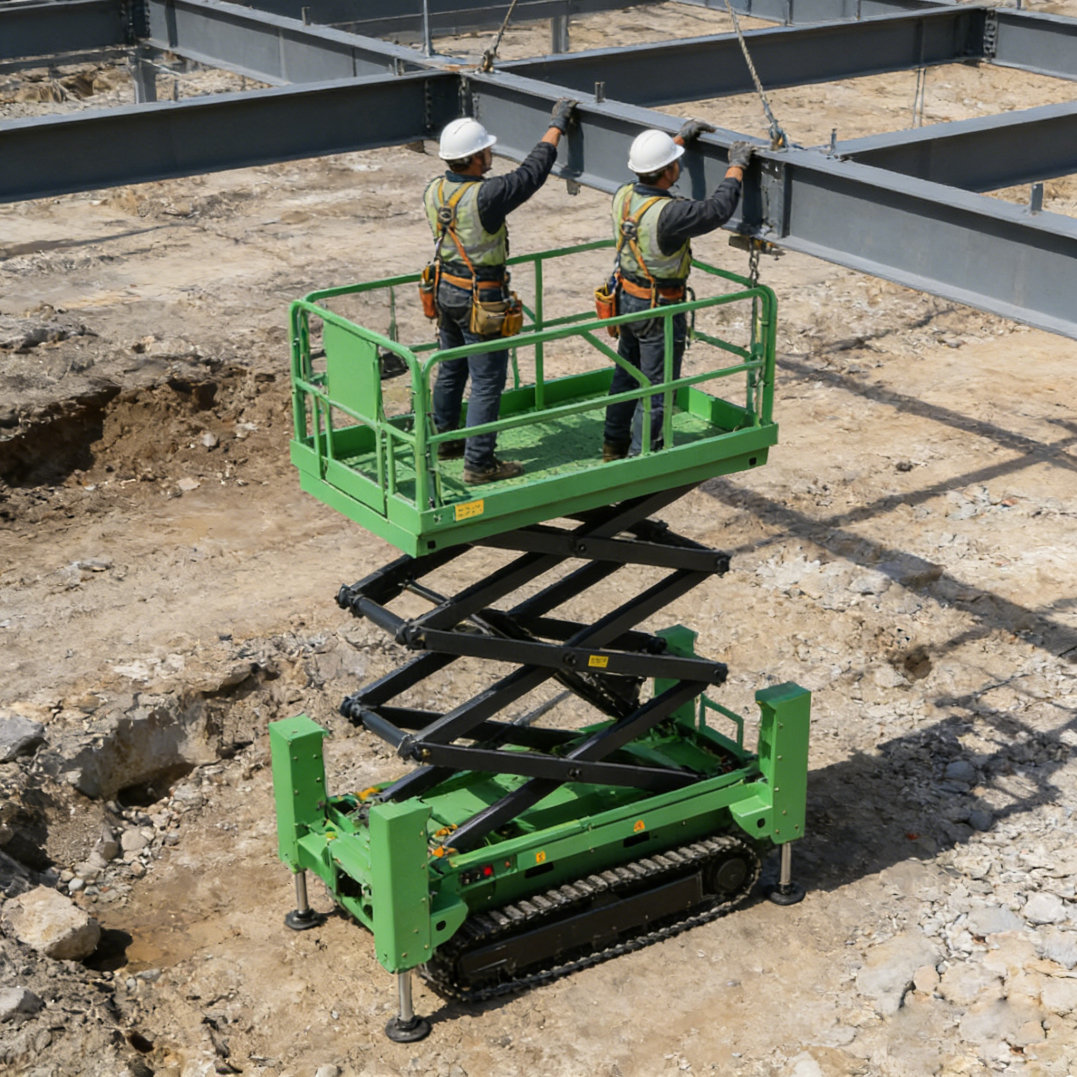

1.Construction & Infrastructure: Ideal for building maintenance, facade installation, steel structure assembly, bridge inspection, and rooftop work. The lift can safely navigate unpaved, muddy, or uneven construction sites, reducing the need for scaffolding and temporary platforms while maintaining operator safety.

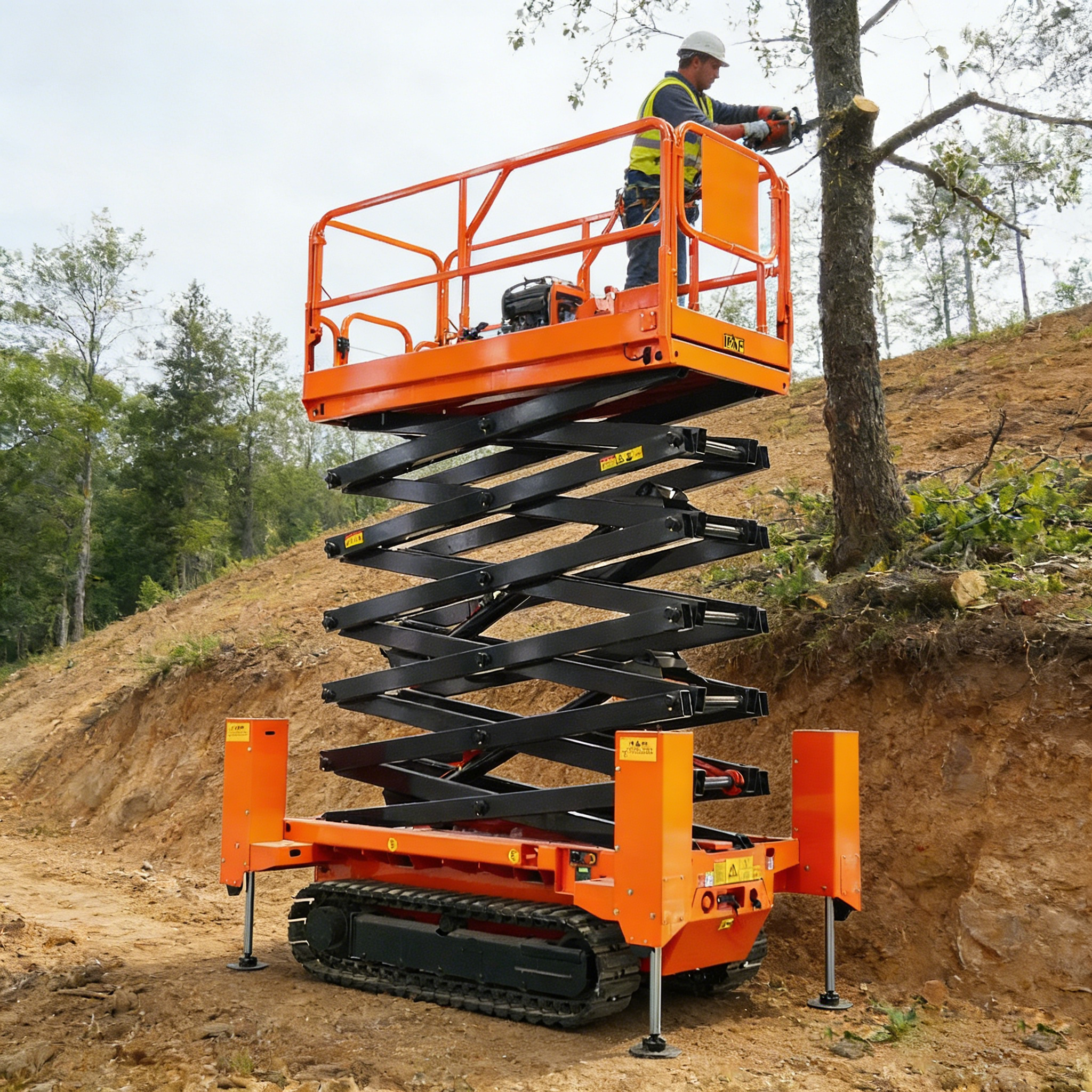

2.Municipal & Public Works: Perfect for street lighting installation, traffic signal maintenance, park landscaping, and tree trimming. The tracked system minimizes ground impact, ensures stability on soft soil or grass, and improves efficiency for city projects.

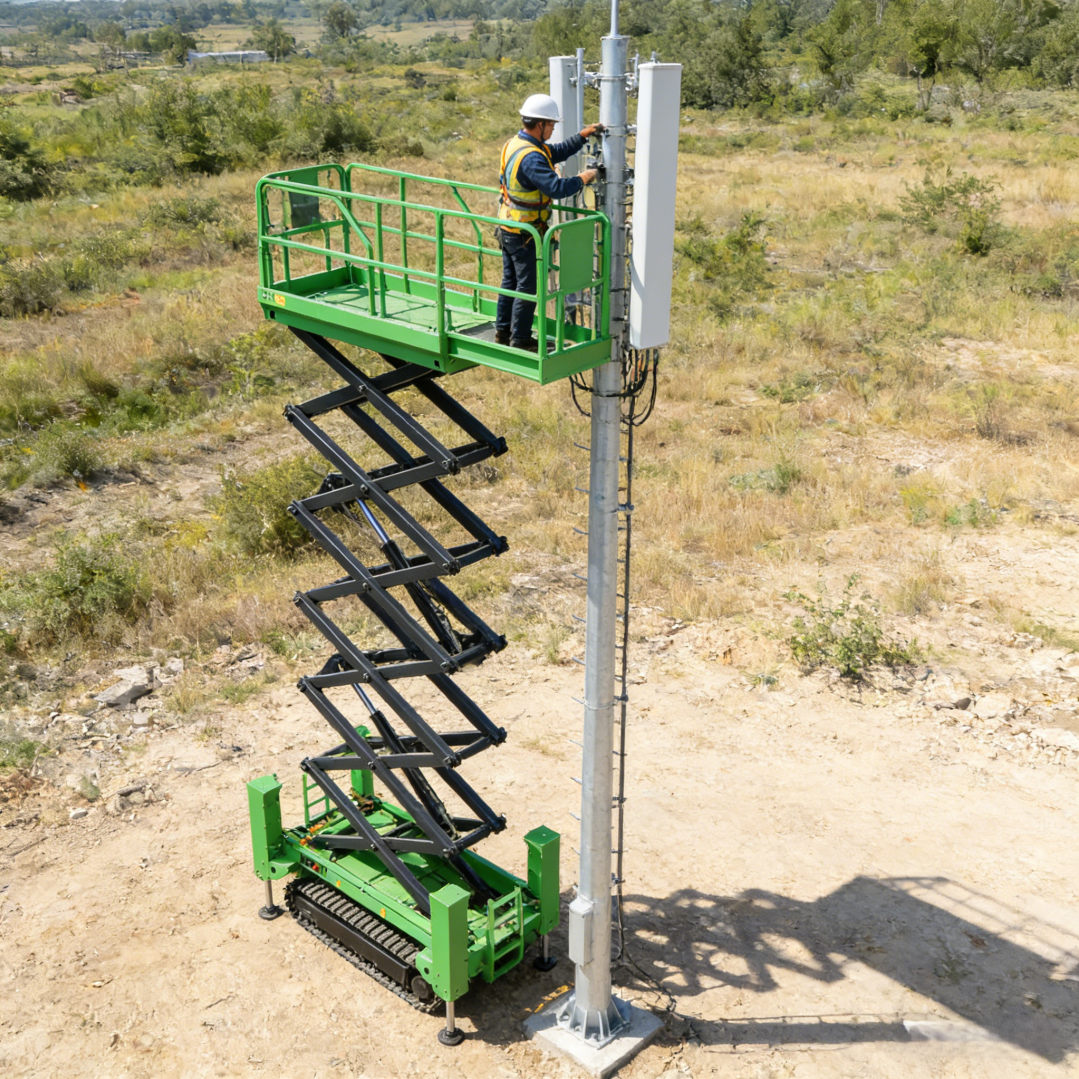

3.Energy, Utilities & Telecommunications: Supports power line maintenance, solar panel installation, wind turbine servicing, and communication tower work. Its stable lifting platform and precise control allow safe operation on challenging outdoor terrains.
4.Industrial & Manufacturing Facilities: Enables high-level machinery inspection, warehouse maintenance, roof repairs, and equipment servicing in confined or uneven spaces. The compact design ensures maneuverability, operational efficiency, and reduced downtime.
5.Agriculture & Horticulture: Suitable for orchard and vineyard maintenance, greenhouse installations, and farm facility inspections. The tracked chassis allows smooth operation on soft or uneven soil, providing a safe and stable platform for elevated tasks.
6.Oil, Gas & Chemical Industry: Applicable to elevated inspections, pipeline maintenance, and facility servicing in outdoor or hazardous industrial environments. High stability and traction minimize operational risks and improve efficiency.
