SDEAST Forklift Style Vertical Mast Lift With Jib

SDEAST Forklift Style Vertical Mast Lift With Jib

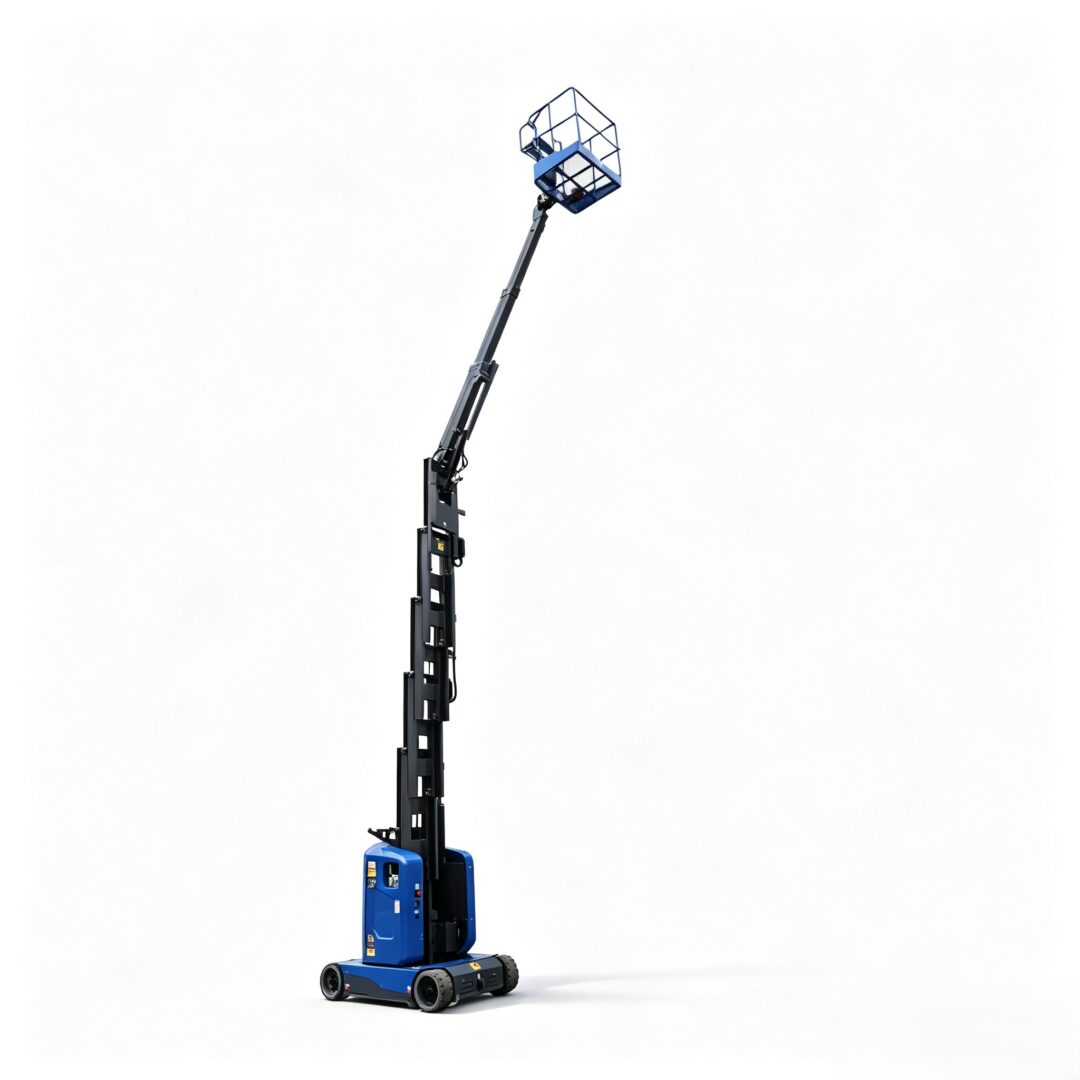

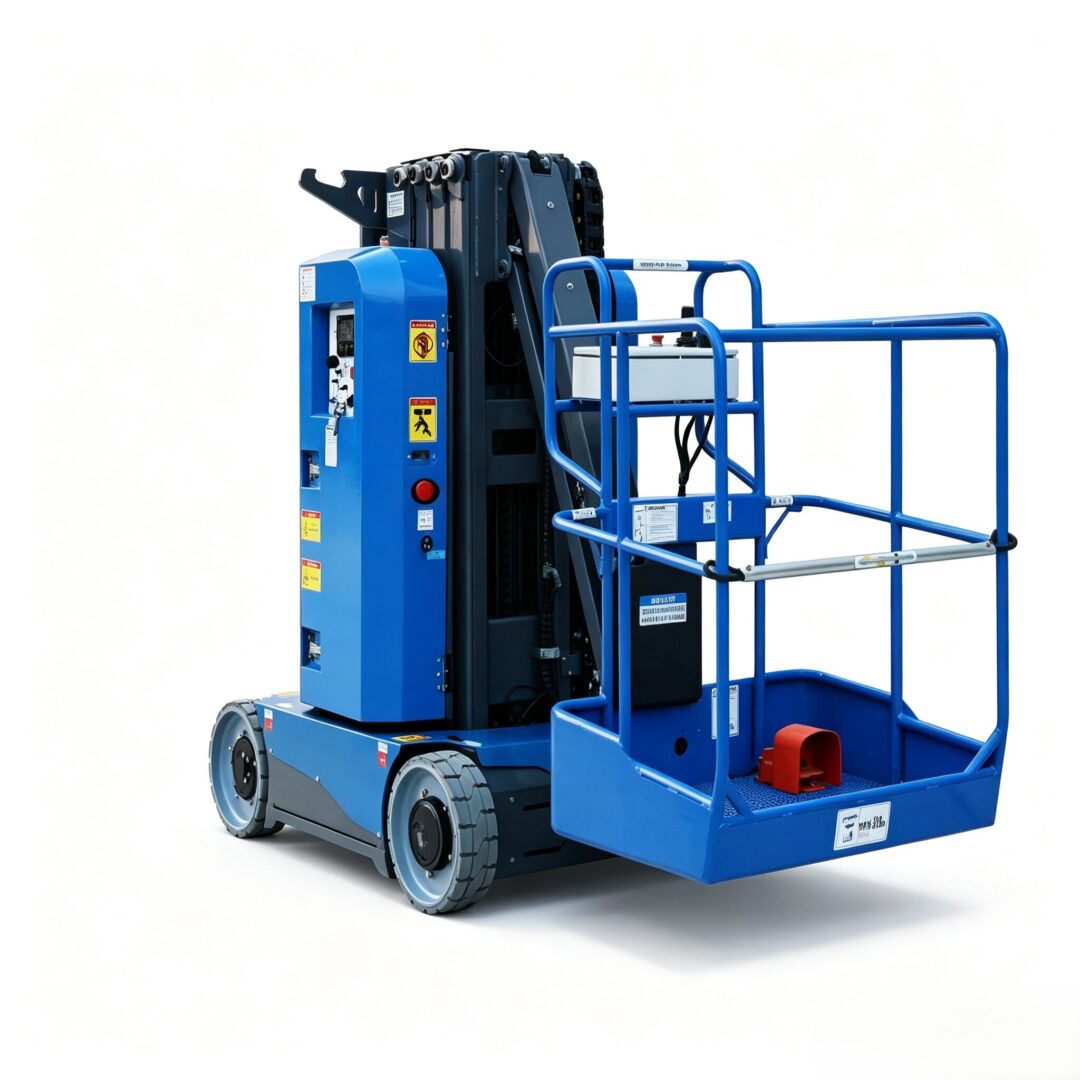

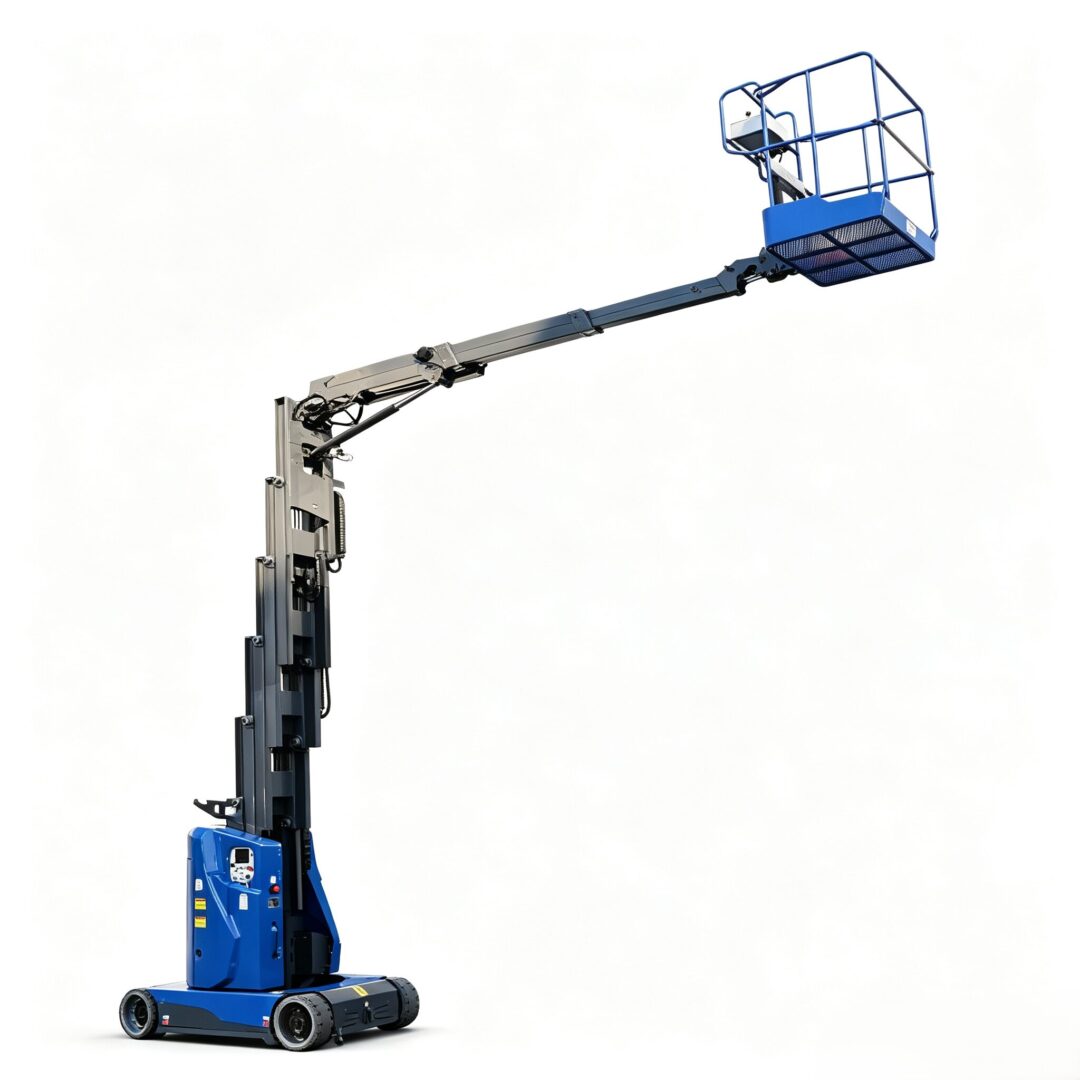

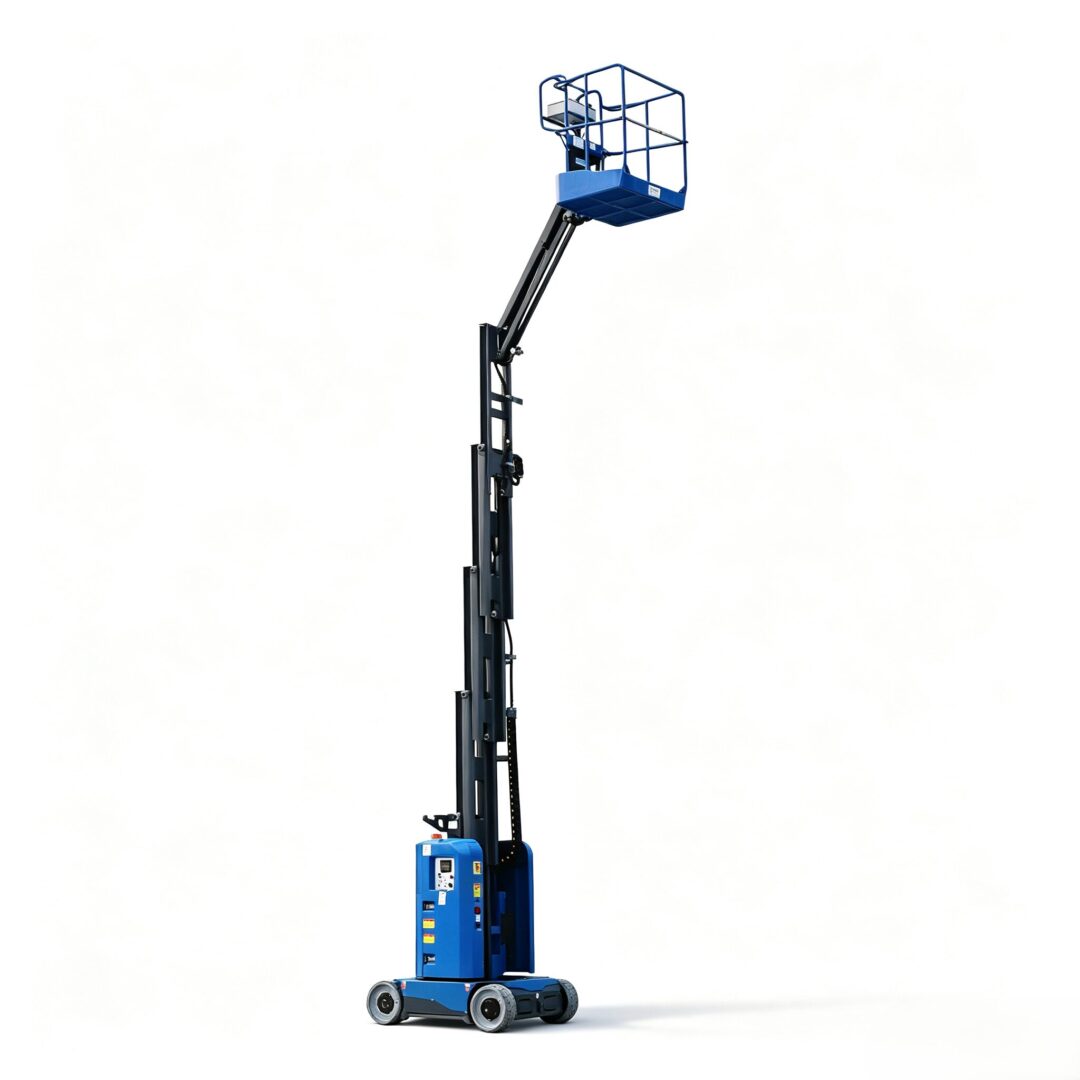

SDEAST Forklift Style Vertical Mast Lift With Jib is electric self‑propelled aerial work platform with functional jib arm. Zero tail‑swing design fits narrow sites. Robust forklift‑style mast ensures high stability. Complete safety devices, non‑marking tires and forklift pockets for easy transport. Great for indoor aerial maintenance & installation work.

KEY ADVANTAGES:

Multi‑angle jib articulation plus wide‑range continuous turret swing — large working envelope with minimal repositioning
Generous working height and sufficient up‑and‑over height — easily bypass structural obstacles
Heavy‑duty forklift‑style mast structure — superior stability and simplified component maintenance
24V high‑efficiency electric drive & lift system — quiet, smooth operation and long duty cycles
Non‑marking solid tires — protects indoor floors, tiles and finished ground surfaces
Strong gradeability — adapts to ramps and uneven working ground conditions
Zero‑tail‑swing chassis design — perfect for narrow aisles and tight‑layout job sites
200 kg platform capacity with spacious platform area — accommodates two workers with tools
Complete safety & service features: emergency lowering, overload protection, visual chain inspection, emergency stop and swing‑out service covers

Specifications

MODEL	SJYZ-0810	ESJYZ-0810
Max.Working Height	9.7m	10.65m
Max.Platform Height	7.7m	8.65m
Working Outreach	3.36m	3.61m
Overall Length	2.78m	2.88m
Overall Width	1m	1m
Overall Height(stowed)	1.99m	2.14m
Upand Over Height	6.3m	7m
Platform Dimension	0.8*0.93m	0.8*0.93m
Ground Clearance(Stowed)	90mm	70mm
Ground Clearance(Raised)	90mm	70mm
Wheelbase	1.2m	1.2m
Loading Capacity	200kg	200kg
Occupants	2	2
Jib-Range ofArticulation	120°	120°
Swing	352°	352°
Max.Allowance TiltAngle	X-2°Y-2°	X-2°Y-2°
Travel Speed(Stowed)	4.5km/h	4.5km/h
Travel Speed(Raised)	0.8km/h	0.8km/h
Gradeability	25%	25%
Tyres	Φ406*125mm	Φ406*125mm
Driving Motor	24V/0.9kw	24V/0.9kw
Lifting Motor	24V/3kw	24V/3kw
Battery	24V/220Ah	24V/220Ah
Charger	24V/30A	24V/30A
Weight	2960kg	3300kg

MODEL ESJYZ-1012
Max.Working Height	12.5m
Max.Platform Height	10.5m
Working Outreach	6m
Overall Length	3.72m
0verall Width	1.2m
Overall Height(stowed)	1.99m
Upand Over Height	7.15m
Platform Dimension	0.8*0.93m
Ground Clearance(Stowed)	80mm
Ground Clearance(Raised)	80mm
Wheelbase	1.55m
Loading Capacity	200kg
Occupants	2
Jib-Range of Articulation	120°
Swing	352°
Max.Allowance TiltAngle	X-2°Y-2°
Travel Speed(Stowed)	3.6km/h
Travel Speed(Raised)	0.7km/h
Gradeability	30%
Tyres	φ406*178mm
Driving Motor	4BV/3.3kw
Liting Motor	48V/3kw
Battery	48V/260Ah
Charger	48V/35A
Weight	5020kg

Certifiicates

Applications

SDEAST Forklift Style Vertical Mast Lift With Jib delivers flexible aerial access for diverse indoor and light‑duty outdoor projects. Thanks to multi‑angle jib articulation and wide‑range turret rotation, it easily gets around racks, machinery and structural obstacles. Typical application scenarios are listed below:

Warehouse & Logistics Industry：Ideal for high‑level storage rack installation, regular rack inspection, shelf adjustment and warehouse equipment maintenance. Compact body fits narrow warehouse aisles, non‑marking tires protect ground surfaces during long‑hour operation.

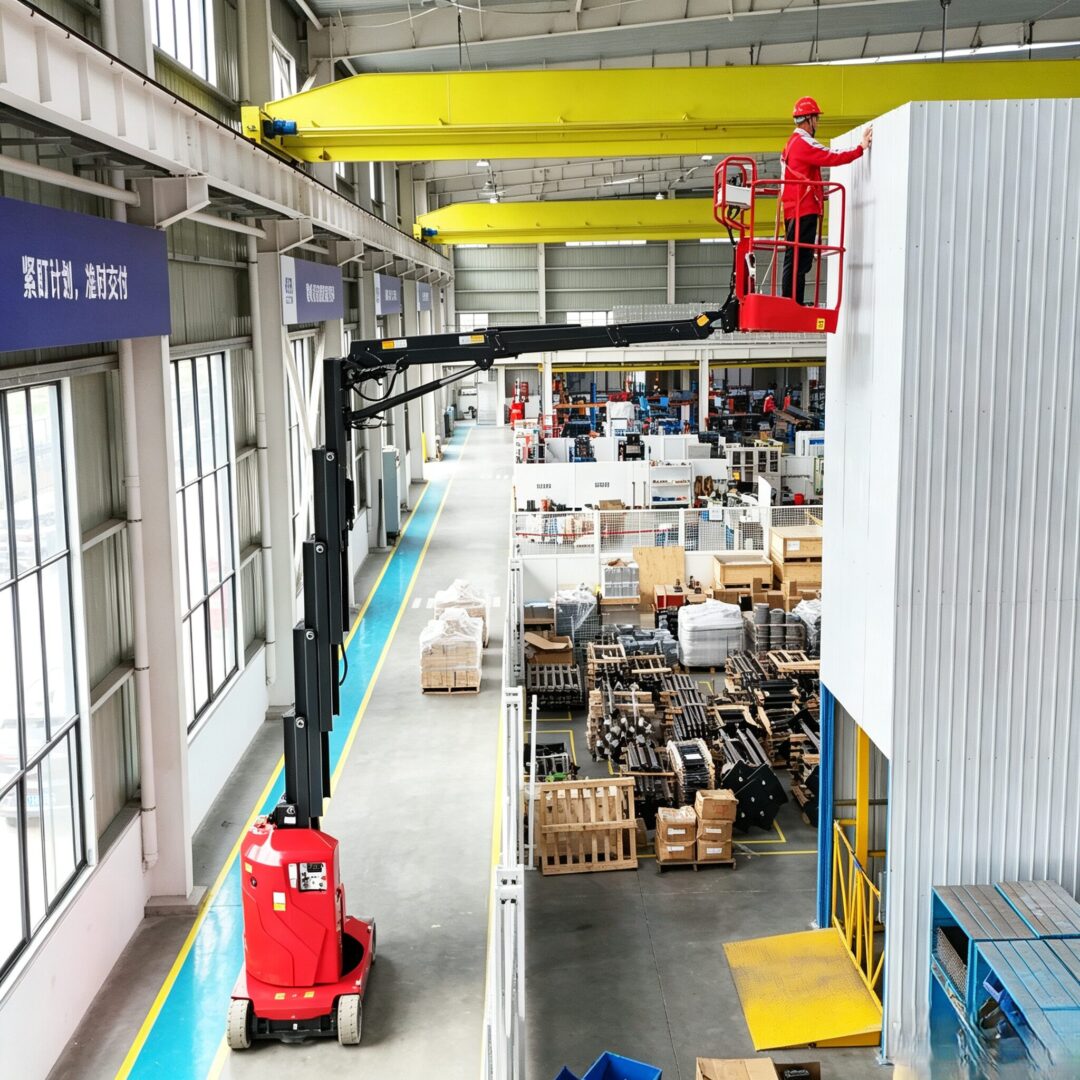

Manufacturing & Factory Workshops：Perfect for production line assembly work, overhead pipeline inspection, high‑mounted lighting replacement, equipment overhaul and daily factory facility upkeep. It can maneuver between production machines to reach hard‑to‑access working spots.
Commercial Public Venues：Widely used in shopping malls, hotels and exhibition centers for ceiling component installation, decorative fitting, sign mounting and venue layout setup. The unit can travel through standard doorways with no damage to finished indoor floors.
Building Interior Renovation & Facility Management：Suitable for interior refurbishment, high wall finishing, electrical system maintenance and building facility inspection. Well‑suited for property management teams to carry out routine periodic maintenance tasks.

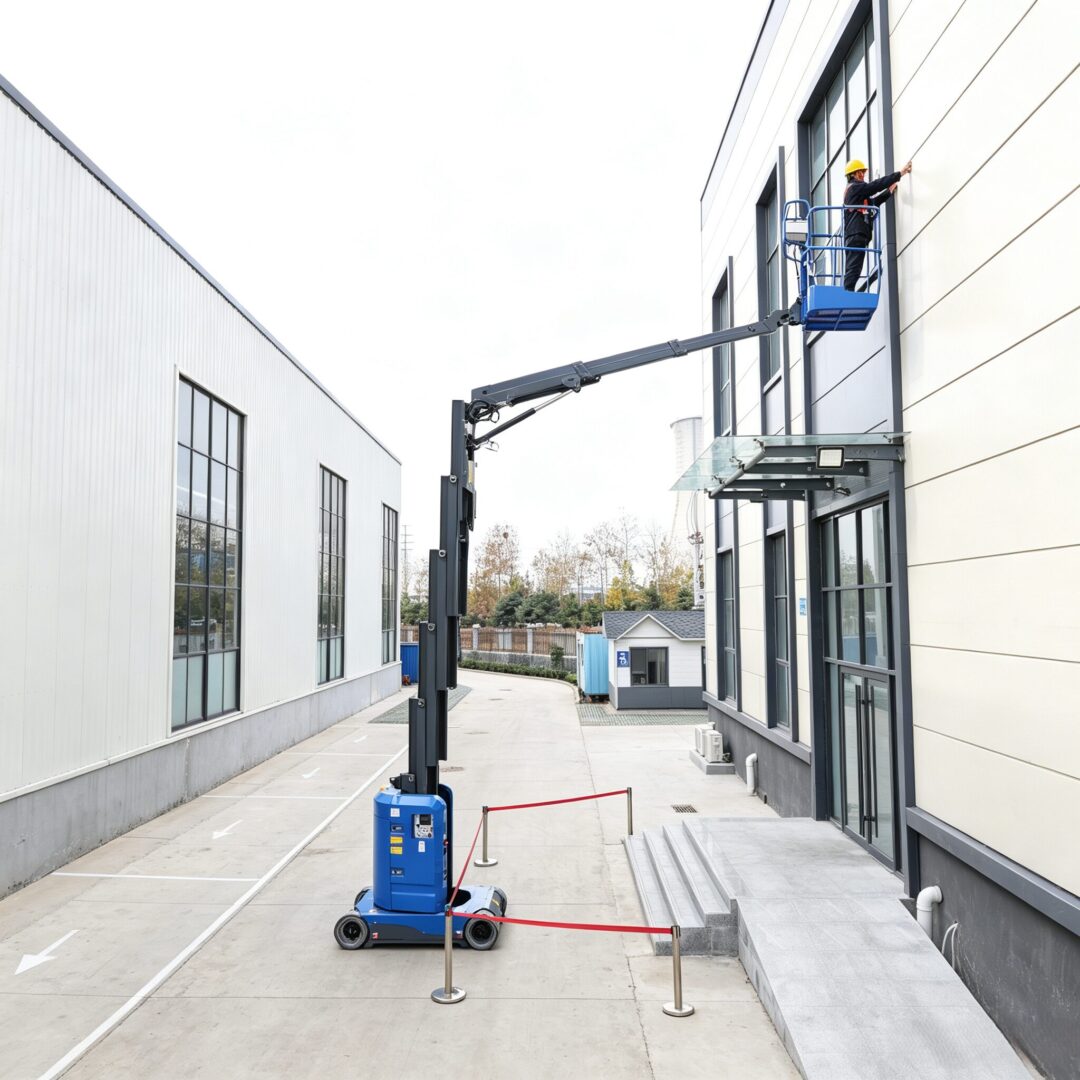

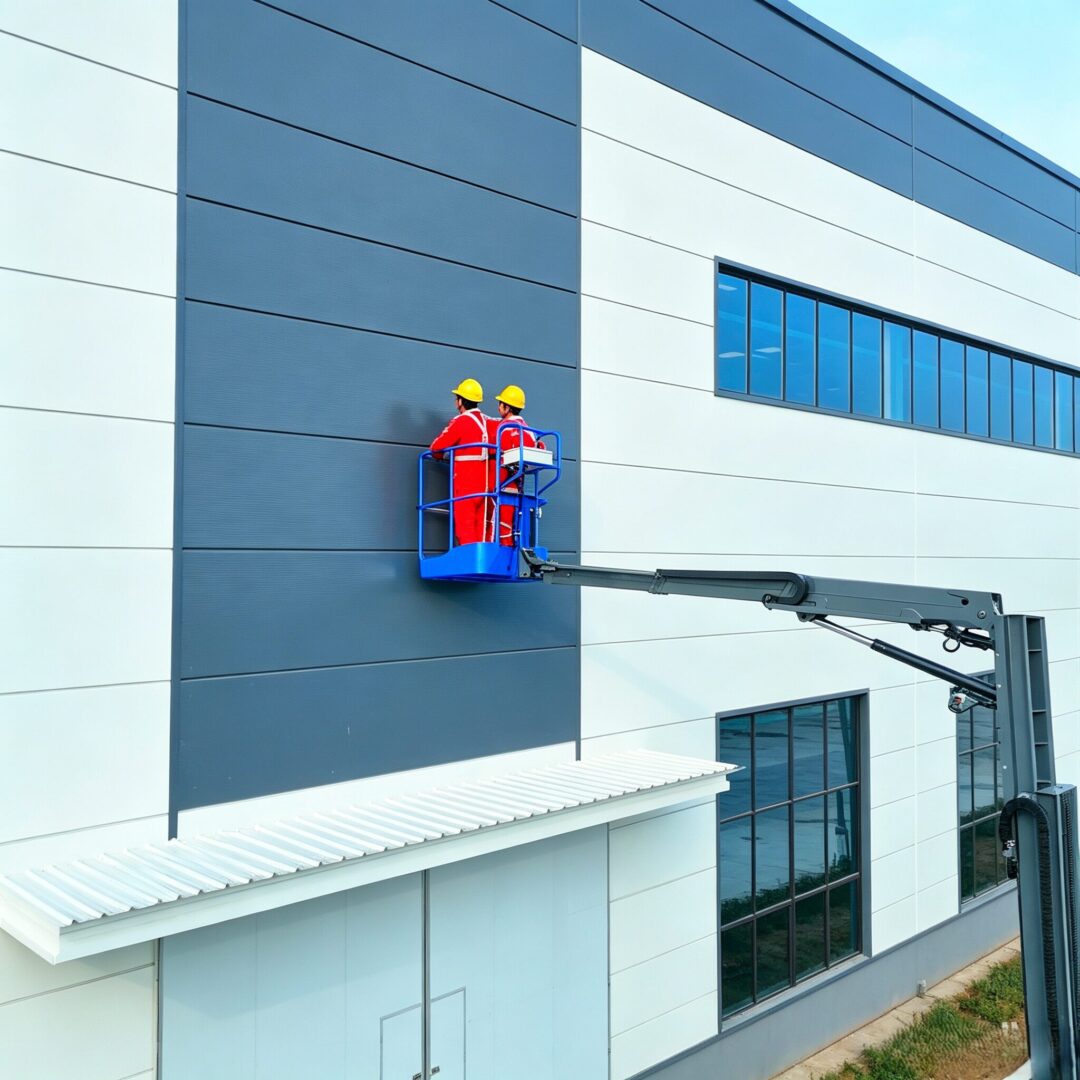

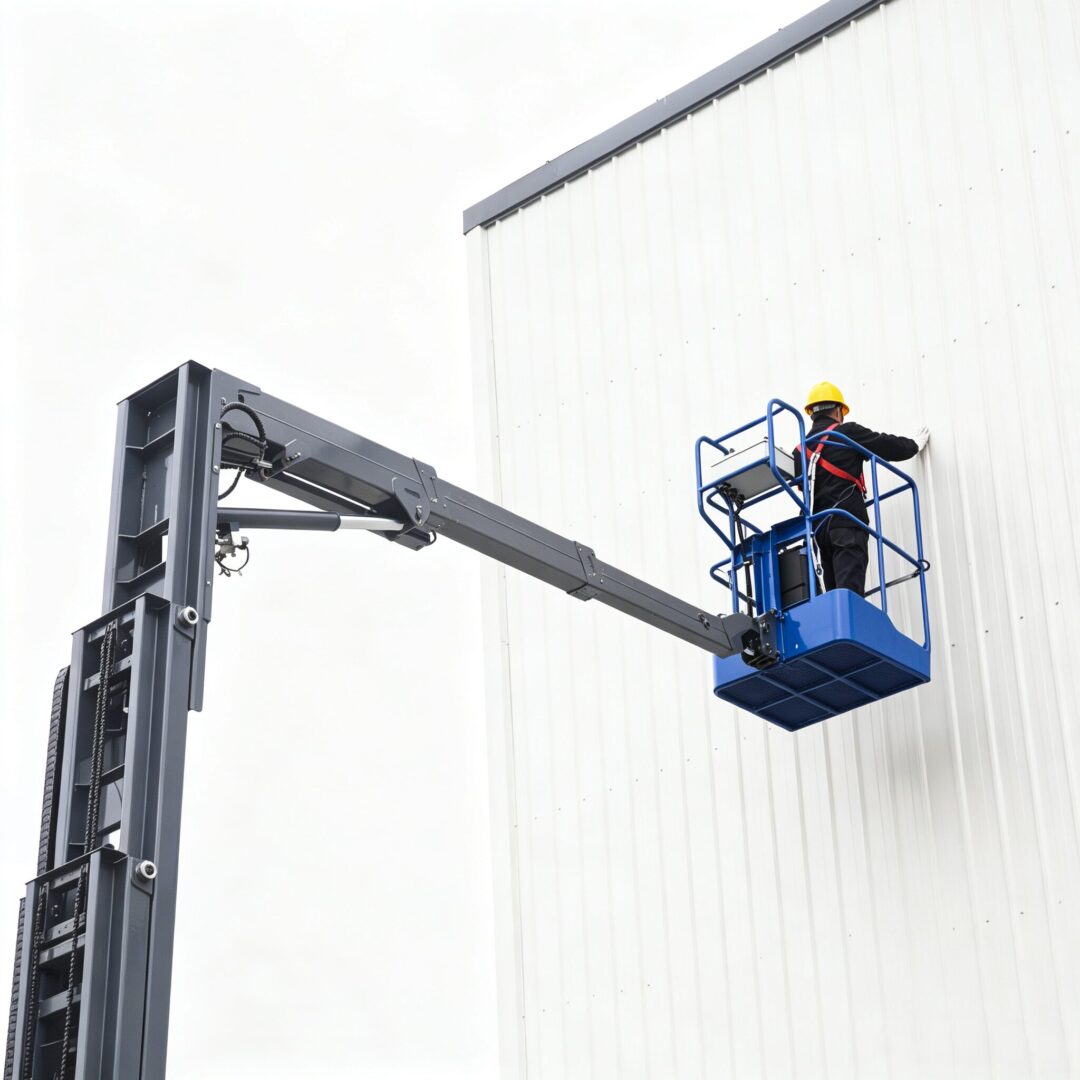

Light‑Duty Outdoor Operations：Capable of light outdoor assignments including minor facade repairs, outdoor facility checking and covered‑area construction work. Reliable performance meets general aerial‑access needs for contractors and service teams.
