Crawler-Mounted Forklift-Style Mast Lift — SJYL0406

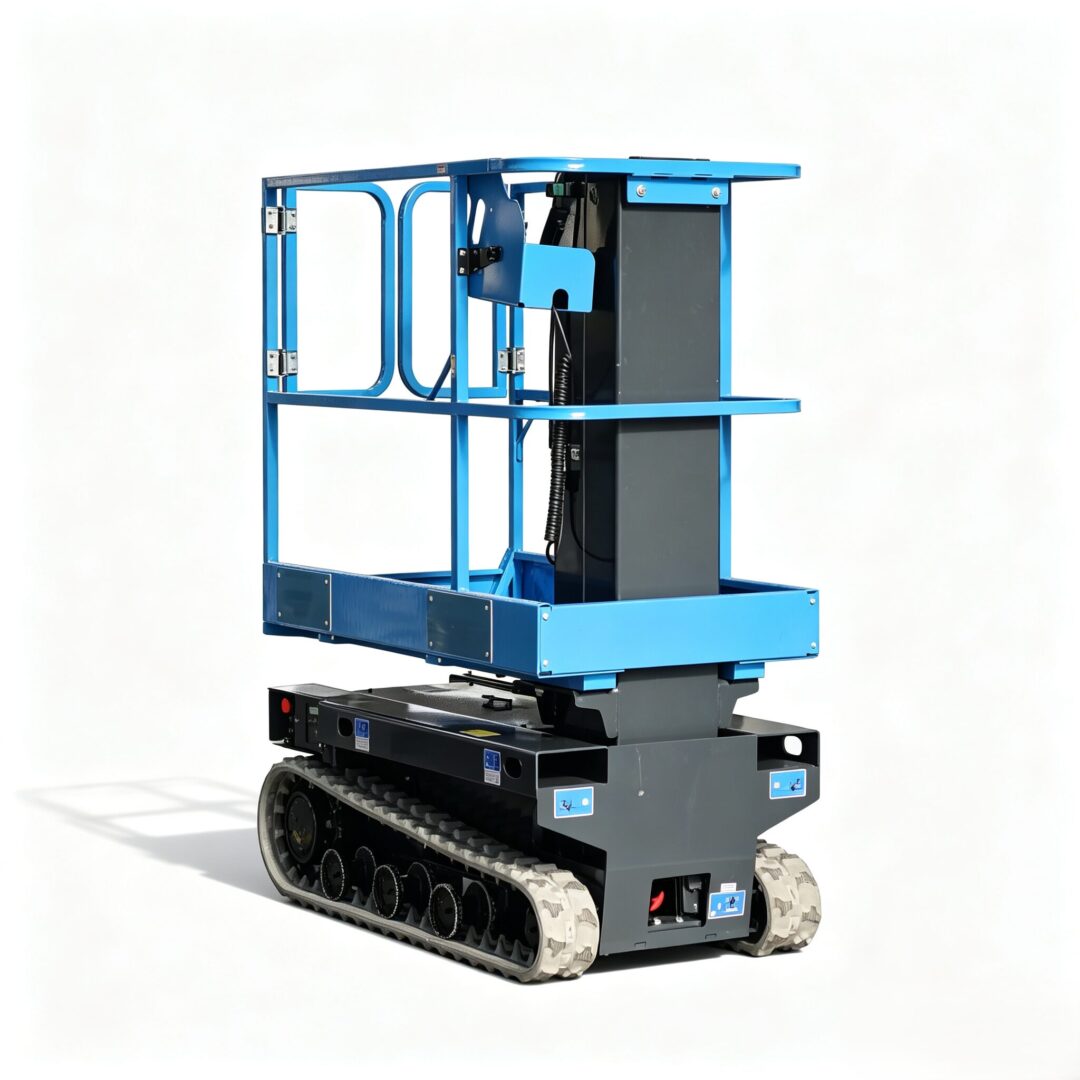

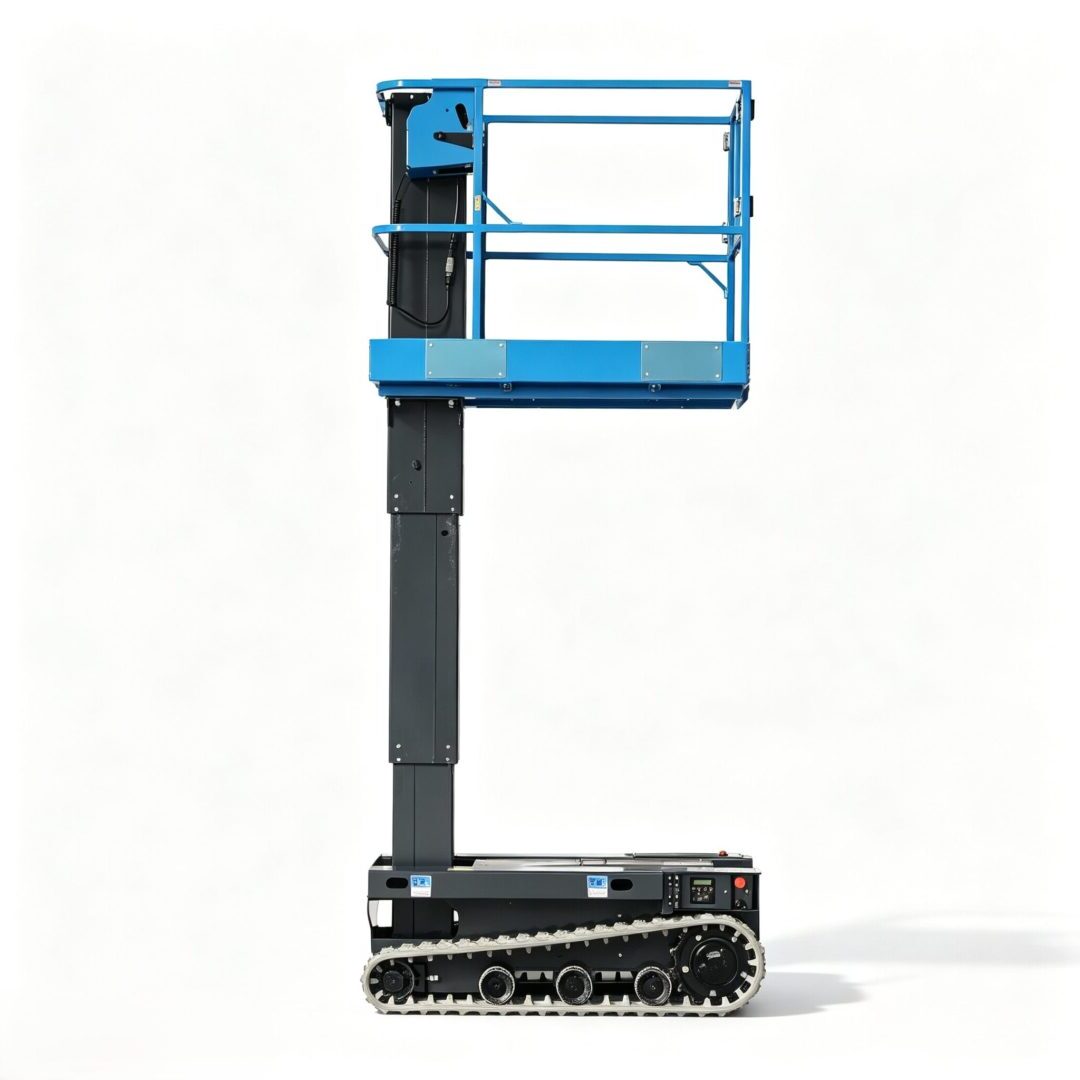

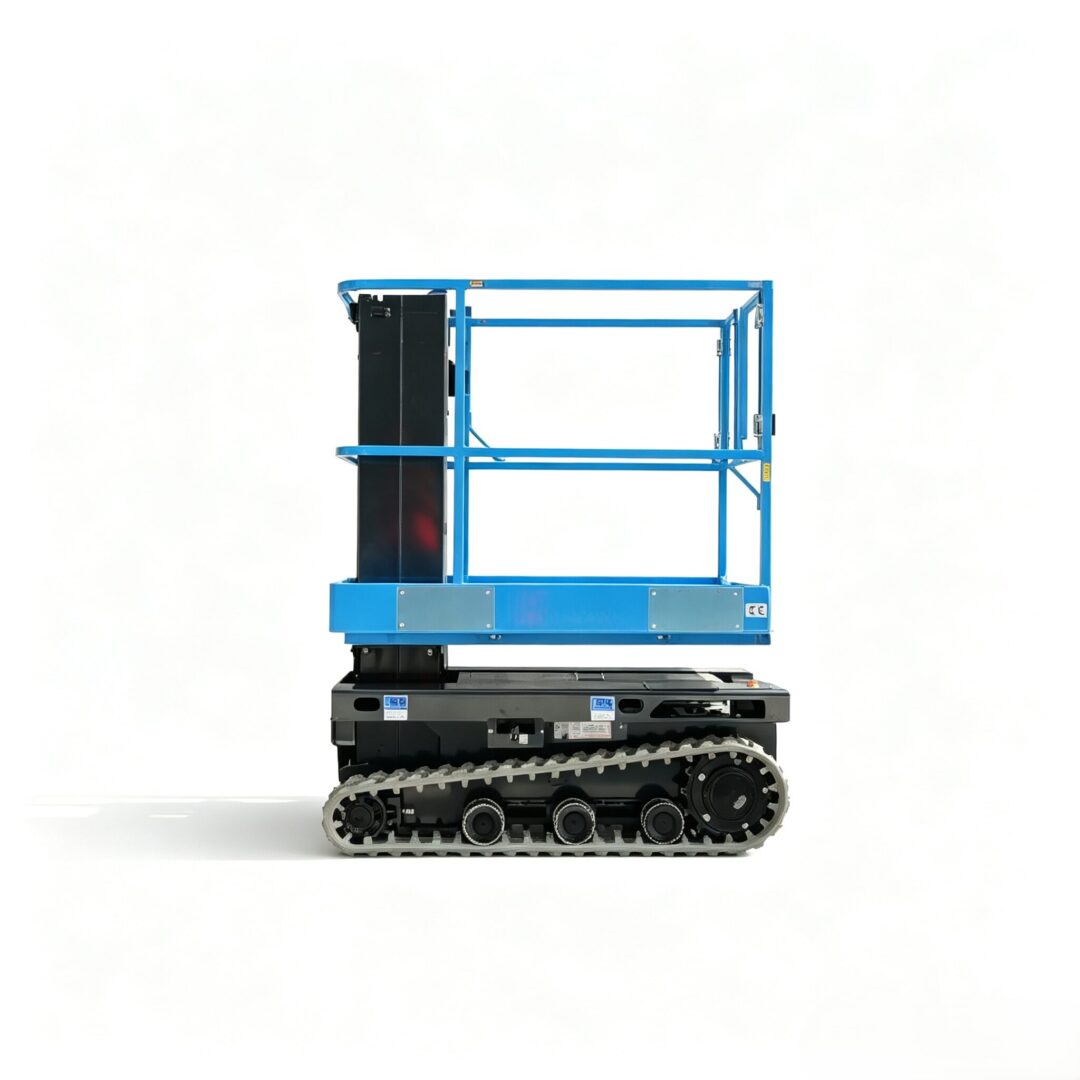

SDEAST Crawler-Mounted Forklift-Style Mast Lift

A crawler mounted forklift-style mast lift is the right choice when the ground is soft, uneven, or too sensitive for standard rubber tires. The SJYL0406 combines a compact forklift-style mast with a 150 mm rubber crawler track, giving you stable traction on grass, gravel, compacted dirt, and warehouse floors alike. It lifts two workers and their tools to a 5.8 m working height while keeping the chassis just 0.79 m wide, so it still fits through doorways and into tight indoor spaces.
Unlike wheeled vertical mast lifts, the crawler undercarriage spreads the machine’s weight over a larger footprint. This reduces ground pressure and lets the SJYL0406 work on finished flooring, paved paths, and lightly prepared job sites without leaving deep marks. The 24V battery drive keeps operation quiet and emission-free, making it suitable for both indoor maintenance and outdoor finishing work.

Key Advantages:

Rubber crawler undercarriage — 150 mm track for stable travel on soft or uneven ground
Low ground pressure — works on finished floors, pavers, gravel, and compacted soil
8 m working height with 3.8 m platform height — vertical reach for routine maintenance
Large platform — 1.4 × 0.75 m platform with 200 kg capacity for tools and two workers
Compact 0.79 m width and 1.73 m stowed height — fits through standard doorways
25% gradeability — climbs ramps and slopes that stop wheeled units
Dual 24V drive motors and 24V/2.2 kW lift motor — smooth, reliable battery operation
Safety and service features — emergency lowering, overload protection, and swing-out covers

Specifications

SELF-PROPELLED VERTICAL MAST
MODEL	SJYL0406
最大工作高度Max.Working Height	5.8m
最大平台高度Max.Platform Height	3.8m
平台载重Loading Capacity	200kg
整车长度Overall Length	1.44m
整车宽度Overall Width	0.79m
整车高度0verall Height(stowed)	1.73m
平台尺寸Platform Dimension	1.4×0.75m
轴距Wheel Base	1.15m
最大工作人数Occupants	2
最小离地间隙Ground Clearance	40mm
上升/下降速度Up/Down Speed	31/32sec
最大爬坡能力Gradeability	25%
履带Track	150mm
驱动电机Driving Motor	2×24VDC/0.87kw
起升电机Liting Motor	24VDC/2.2kw
蓄电池Battery	h12V/
充电器Charger	24V/15A
整机重量Weight	1140kg

Certifiicates

Applications

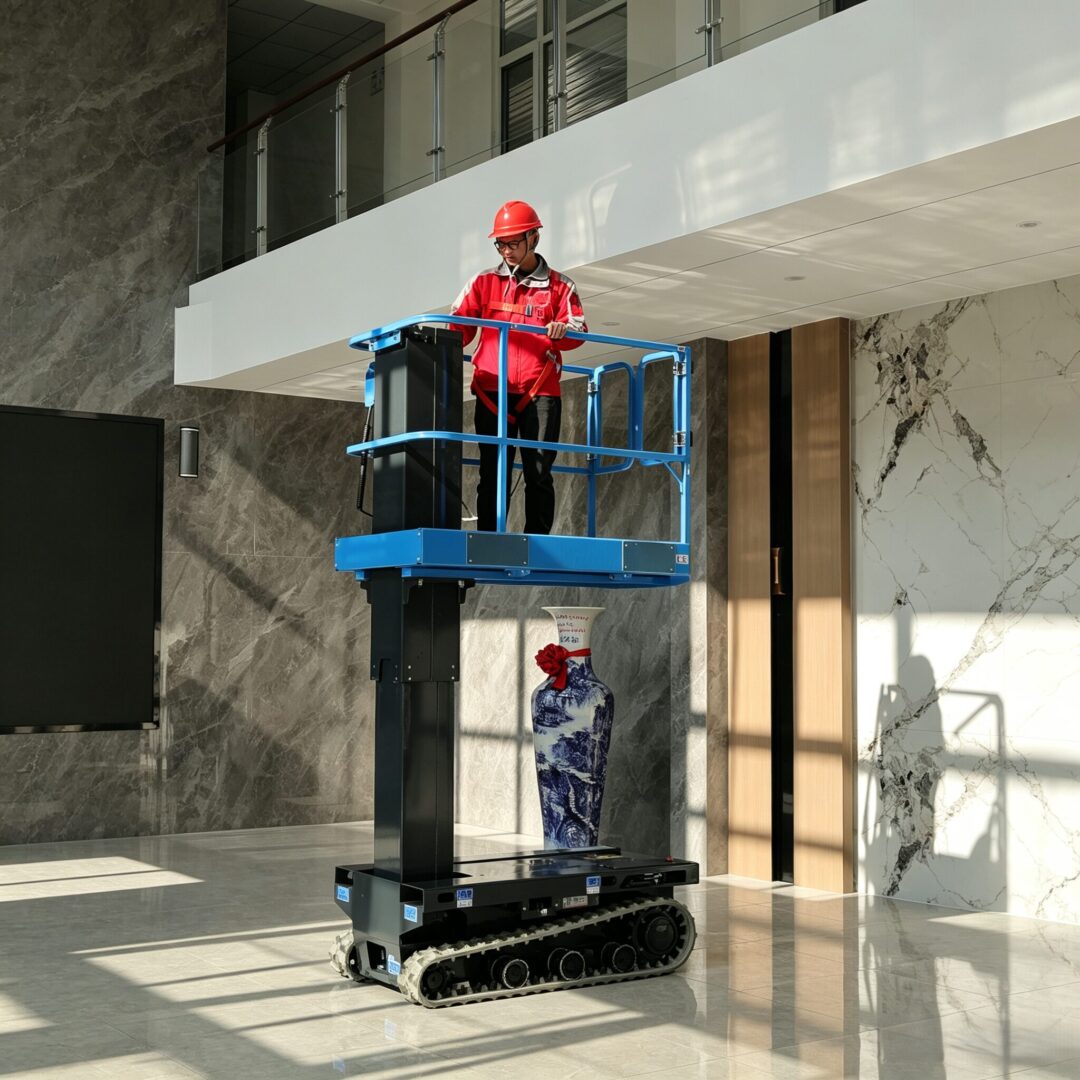

A crawler mounted forklift-style mast lift is built for locations where wheeled machines lose grip or leave damage. The SJYL0406 handles outdoor finishing work, light construction, and facility maintenance on surfaces that are not perfectly flat or paved. The compact body and quiet battery drive also let it move indoors when needed.

Main Applications:

Construction site finishing work — Painter, electrician, and HVAC contractors can reach ceilings and facade details on unfinished sites. The crawler tracks handle gravel, sand, and compacted earth without sinking or slipping.
Greenhouse and nursery maintenance — Greenhouse floors are often dirt, gravel, or shallow concrete pads. The low ground pressure of the SJYL0406 lets it travel between plant rows without damaging root beds or irrigation lines.
Warehouse and logistics centers — Even inside warehouses, the compact 0.79 m width lets the machine travel down aisles and fit into elevators. The battery drive runs quietly during operating hours.
Factory maintenance in unpaved yards — Outdoor machinery, loading bays, and storage yards may have uneven surfaces. The crawler base keeps the lift stable while technicians service lights, cameras, and ductwork.
Exhibition and event setup on grass or gravel — Temporary venues often use unpaved ground. The SJYL0406 installs lighting, banners, and rigging without needing plywood mats or ground protection.
Municipal maintenance on sidewalks and parks — Parks departments use the lift to maintain streetlights, signage, and tree lighting. The rubber tracks avoid scarring paved walkways.
Agricultural facility maintenance — Barns, silos, and packing houses need regular overhead service. The crawler chassis works on packed dirt and concrete floors common in agricultural buildings.
Industrial site inspection — The 200 kg platform capacity and stable base make the SJYL0406 useful for inspection tasks in refineries, power plants, and manufacturing yards with prepared gravel surfaces.
