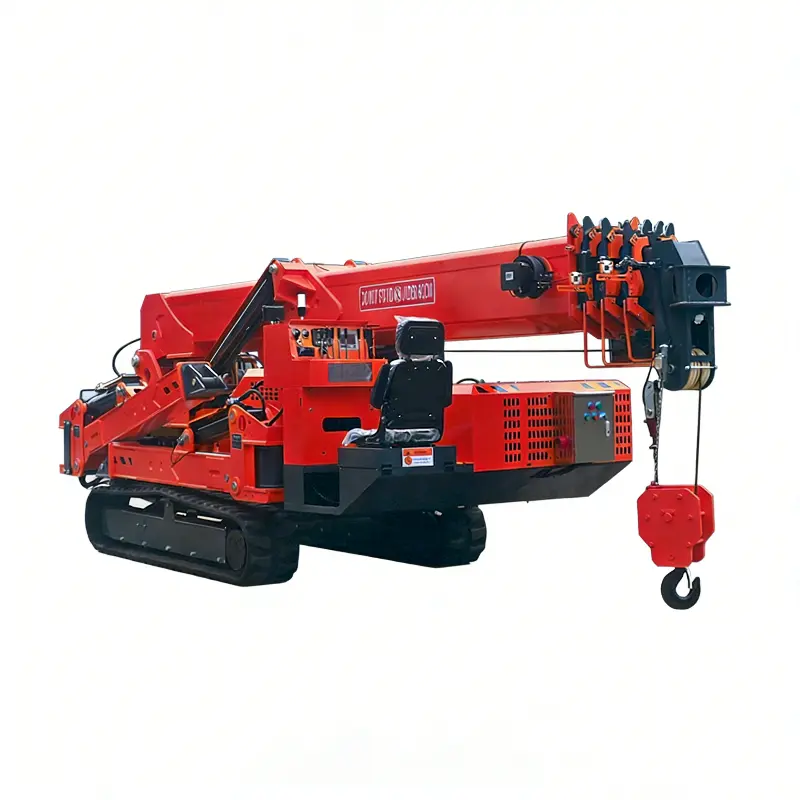

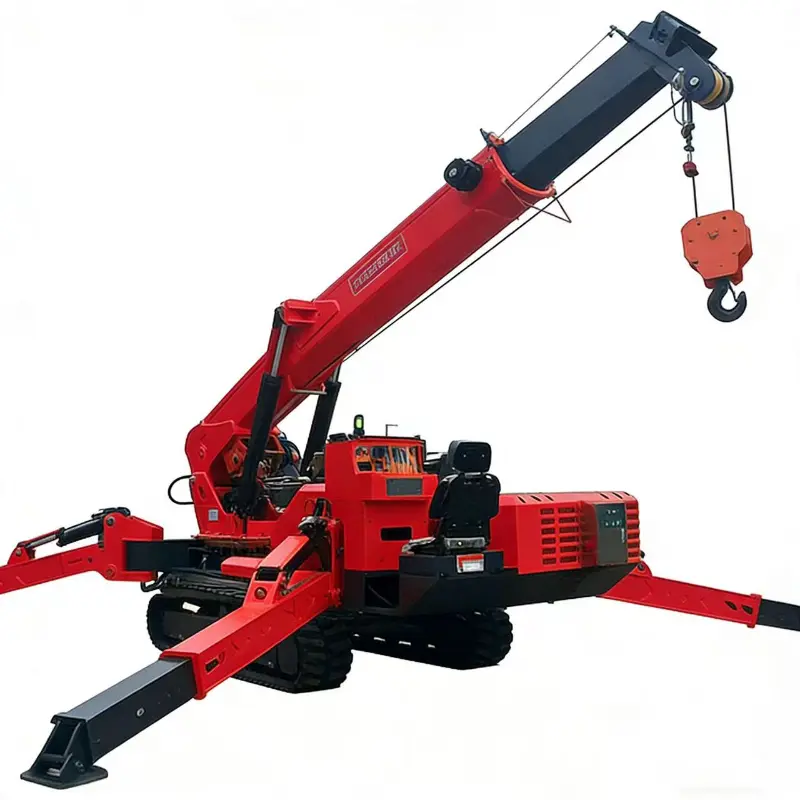

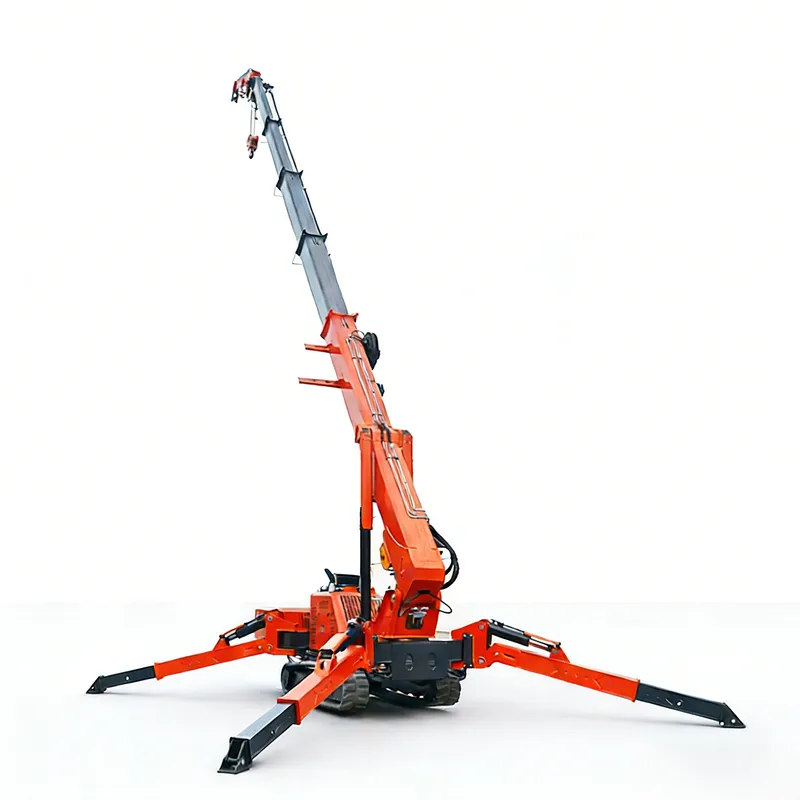

Spider cranes are compact, lightweight cranes with outriggers, designed to operate in narrow, confined, and hard-to-access spaces. Despite their small size, they offer impressive lifting capacity and excellent stability.
Product and technical features:
1、Rubber crawler chassis (a steel crawler chassis is also optional): No damage to the ground, adaptable to various terrains
2、Boom made of high-strength manganese steel: Enhanced lifting capacity
3、Compact body: Small space occupation, wide range of applications
4、Safety design: Prevents misoperation
5、Optional remote control device: Easy to operate
| Parameter Indicator | 1.2-ton | 1.5-ton | 2-ton | 3-ton | 4-ton | 5-ton | 8-ton | 10-ton | 12-ton | 16-ton |
| Self-weight | 1.3T | 1.7T | 1.8T | 2.7T | 6.7T | 6.7T | 8.7T | 10.5T | 12T | 16.5T |
| Maximum working radius | 5.35m | 6m | 6m | 10m | 13m | 15m | 18m | 18m | 19m | 23m |
| Maximum ground lift height | 6.3m | 6.5m | 6.5m | 10.8m | 15m | 17m | 21m | 21m | 21m | 25m |
| Overall dimensions(mm) | 2480*650*1500 | 2500*650*1500 | 2780*710*1620 | 3500*800*1850 | 4250*1000*1830 | 4700*1500*2250 | 6150*1600*2250 | 5900*1800*2300 | 6150*1860*2480 | 7350*2130*2680 |
| Standard configuration | Gasoline engine (dual power) | Gasoline + Motor (dual power) | Gasoline + Motor (dual power) | Diesel + Motor (dual power) | Diesel + Motor (dual power) | Diesel engine | Diesel engine | Diesel engine | Diesel engine | Diesel engine |
| Travel speed | 0-2.5km/h | |||||||||
| Climbing ability | 25° (36%) | |||||||||
| Engine | Gasoline/6L | Gasoline/8L | Gasoline/8L | Diesel/12L | Diesel/12L | Diesel/35L | Diesel/35L | Diesel/40L | Diesel/40L | Diesel/45L |
| Optional equipment | Moment controller/Remote controller/Basket/Hydraulic jib/Colors: Red, Yellow, Green, Black, White, Gray | |||||||||

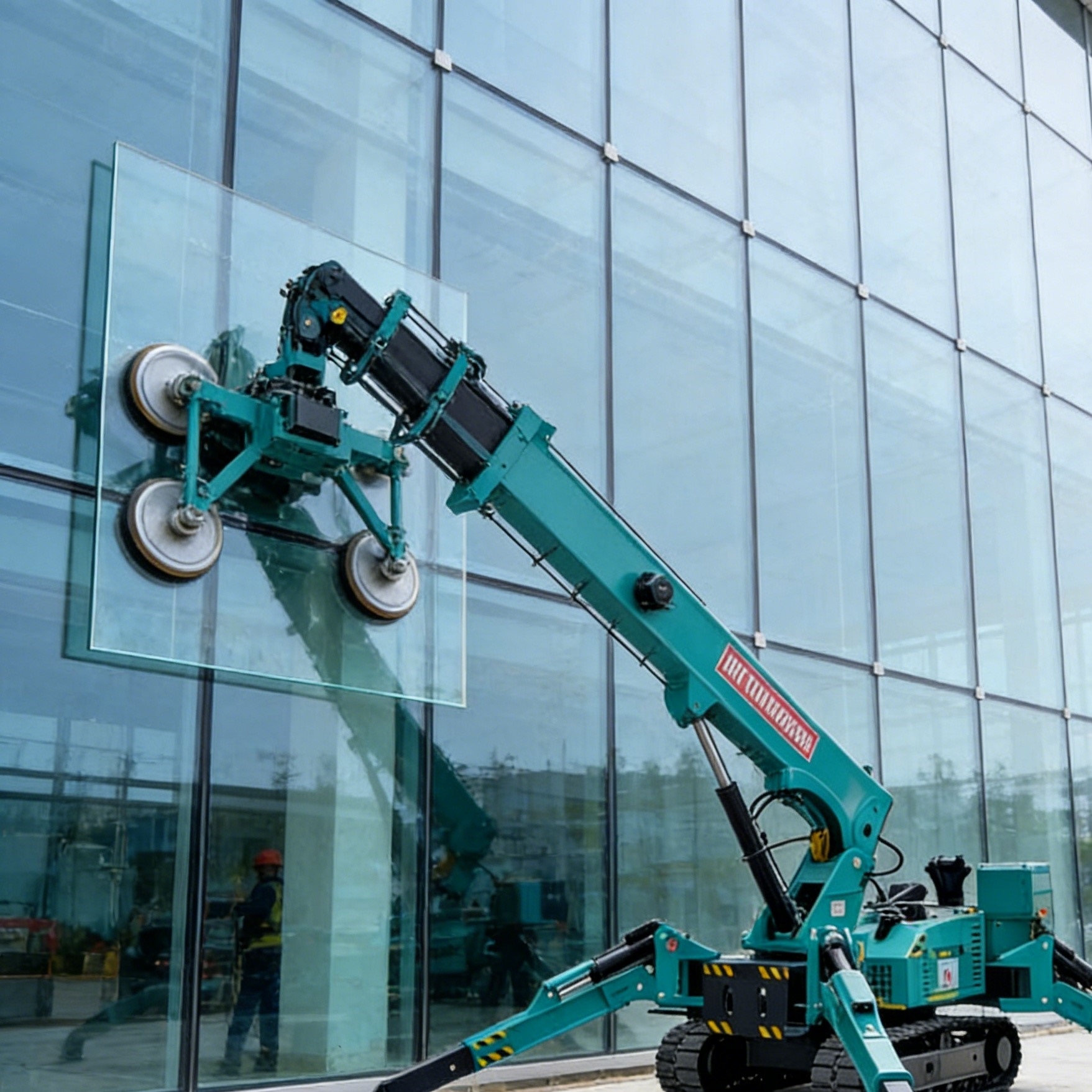

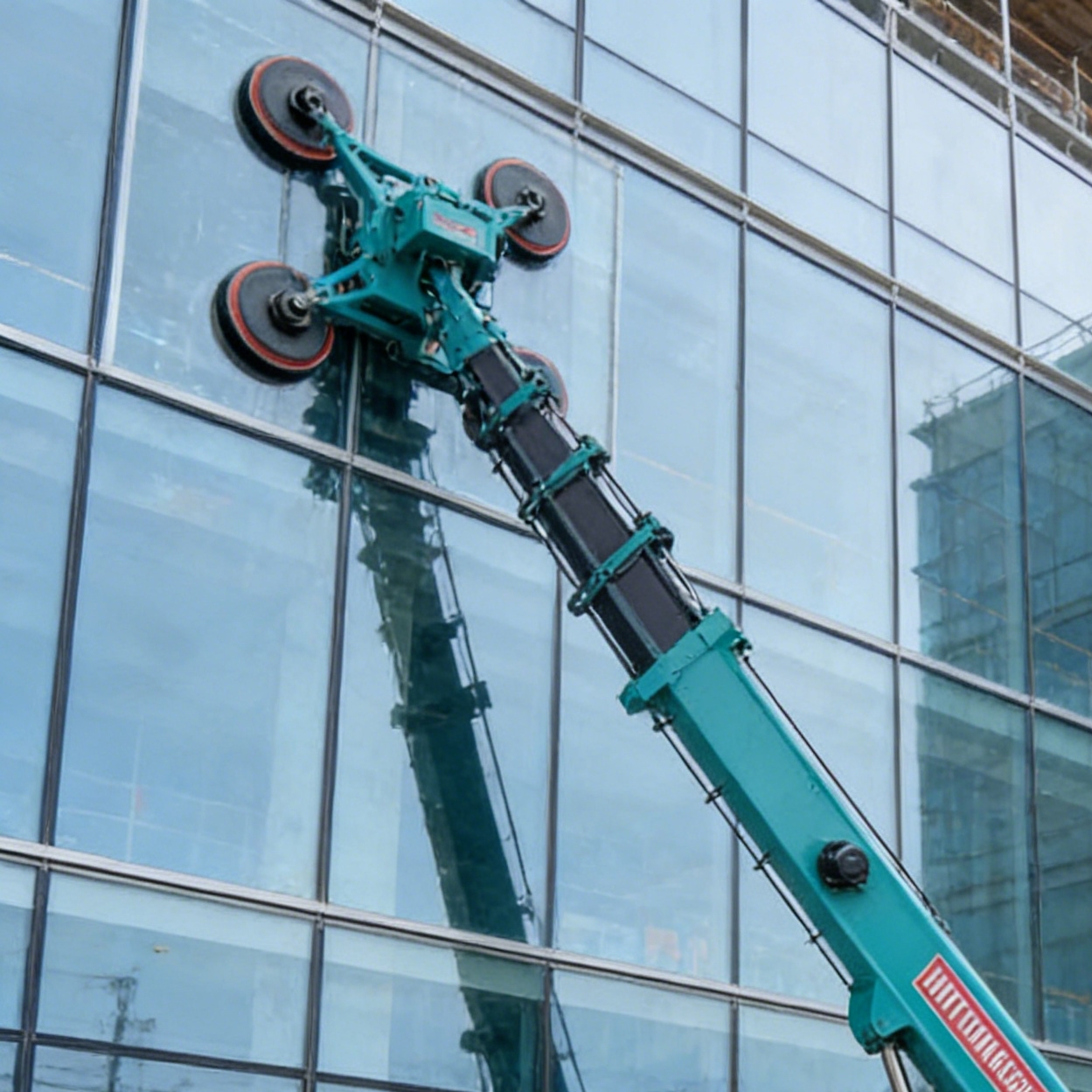

1. high-rise urban projects: Hoisting building materials in narrow balconies/corridors, precise operations such as curtain wall installation and steel structure connection.

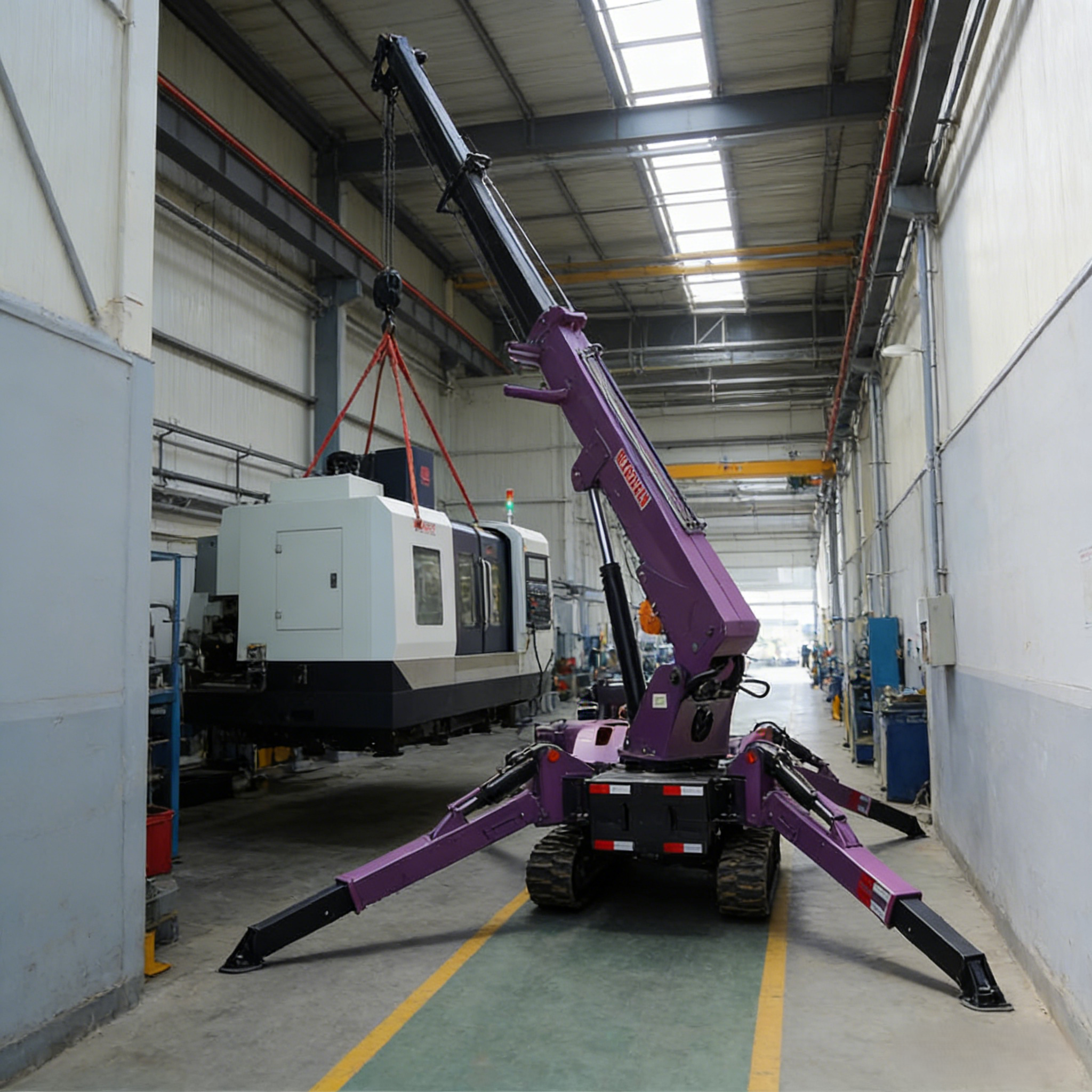

2.Factory equipment installation/maintenance: Hoisting heavy equipment such as machine tools and motors in workshops, suitable for dense and narrow spaces with equipment.

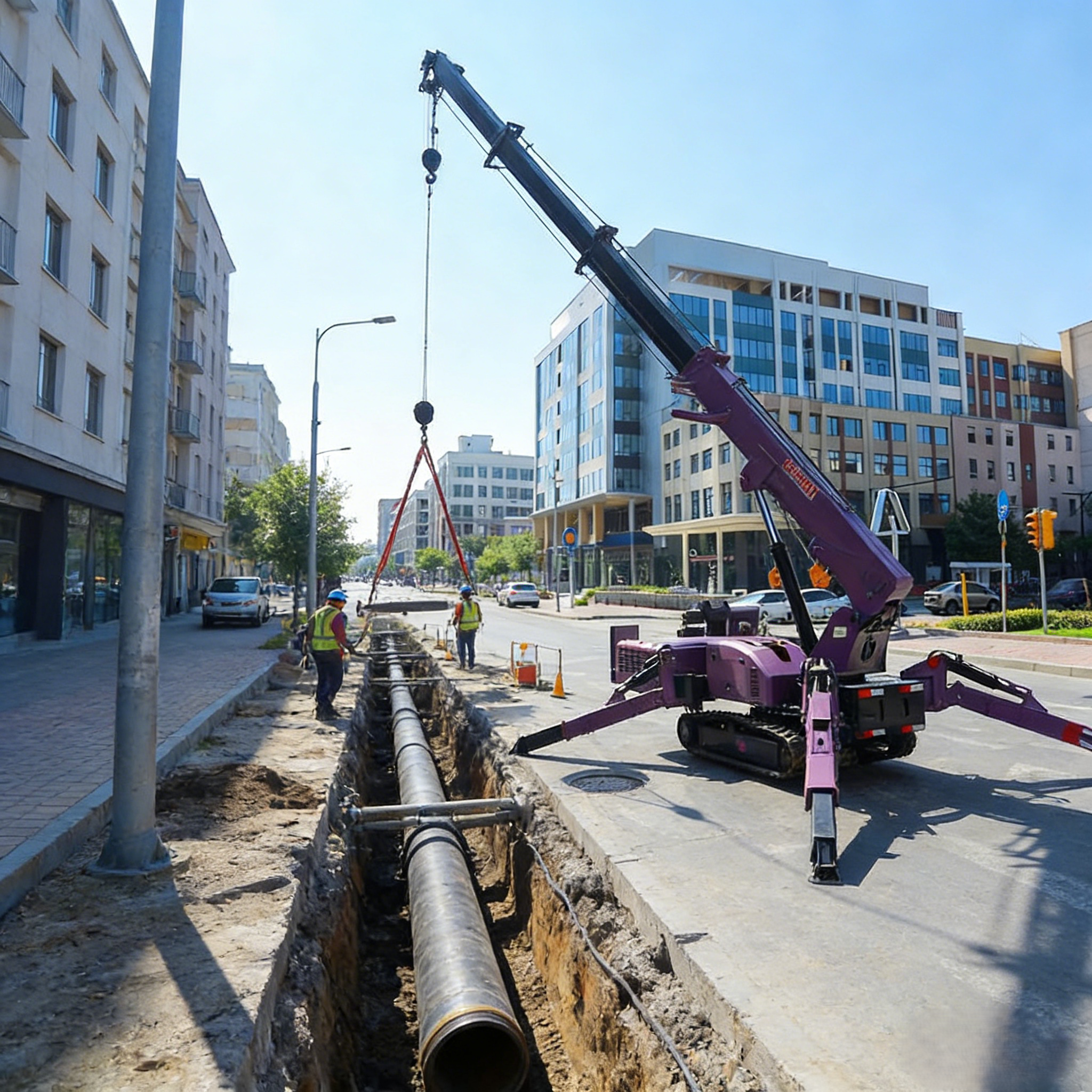

3.Urban pipeline construction: Installation of in-well equipment and pipeline laying for underground pipelines (gas, water supply, sewage), adapted to narrow working spaces alongside urban roads, without disrupting traffic flow.

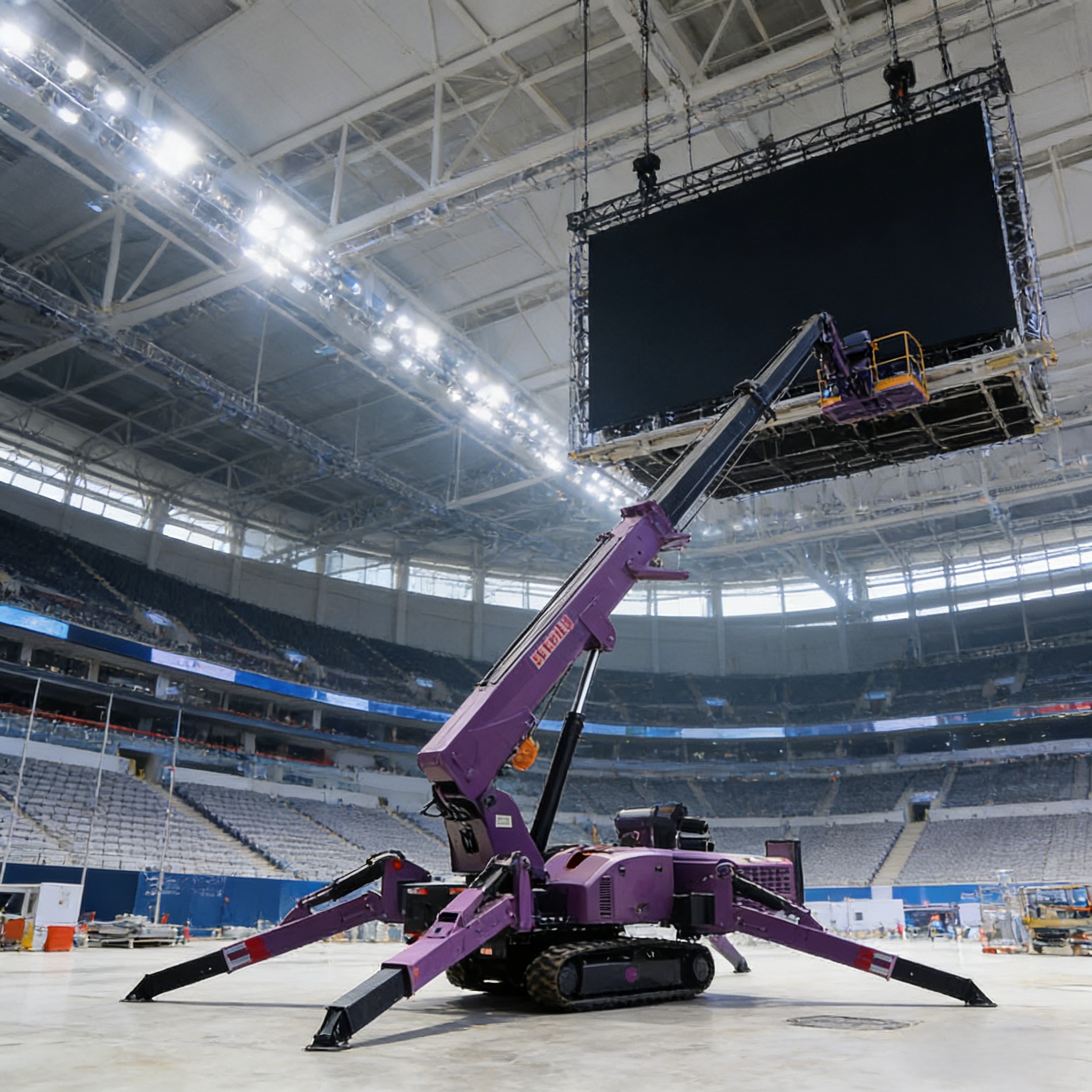

4.Film/Exhibition construction: Hoisting lighting, audio and scenery in studios and exhibition halls, with precise positioning to meet complex needs.

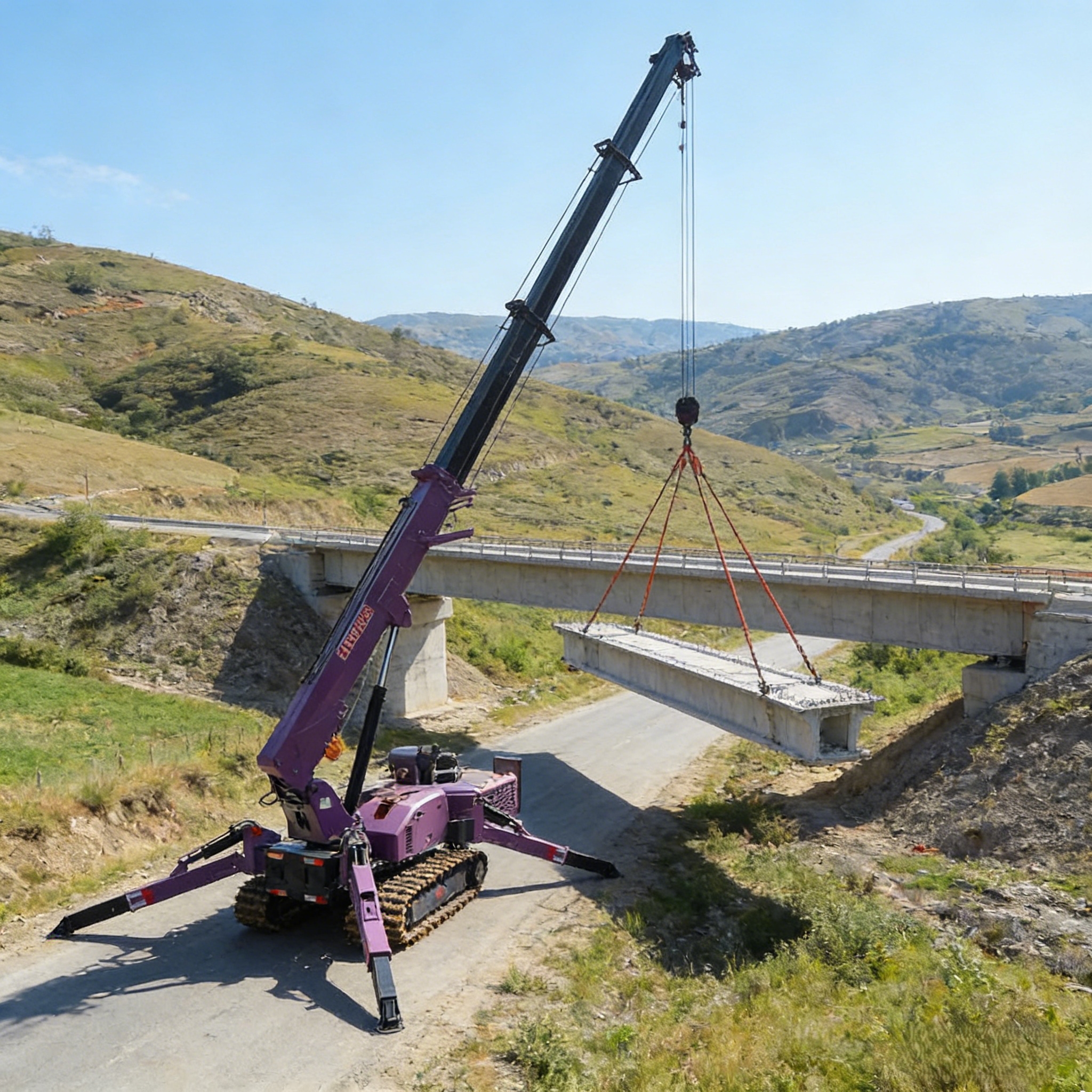

5.Outdoor complex terrain: For small-scale engineering construction in mountainous areas, hilly regions, and muddy sites (such as mountain base station construction, and lifting and installation of rural road and bridge components), the tracked design provides strong traction and eliminates the risk of getting stuck.
