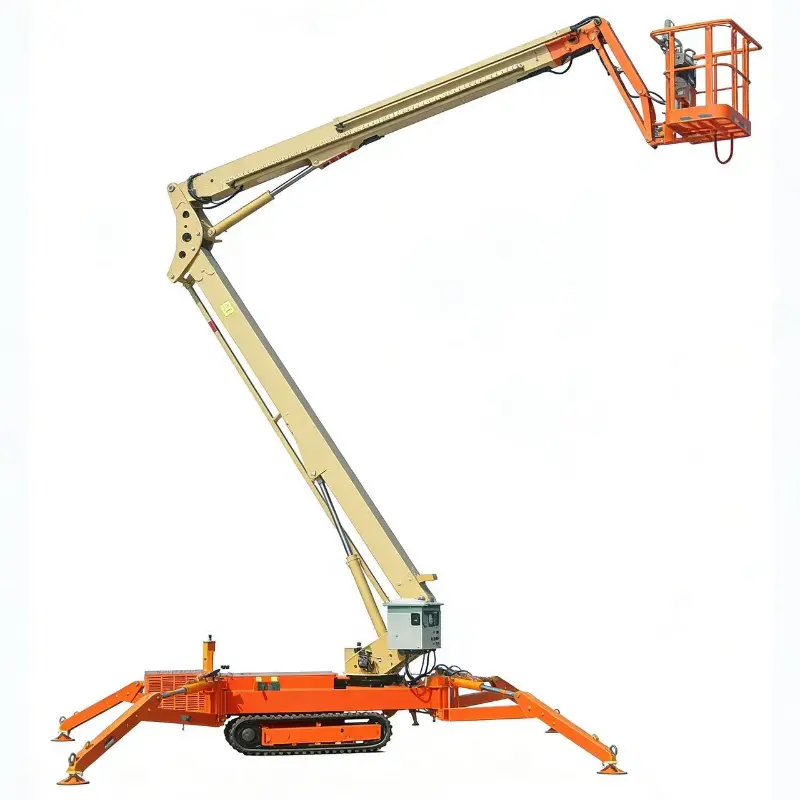

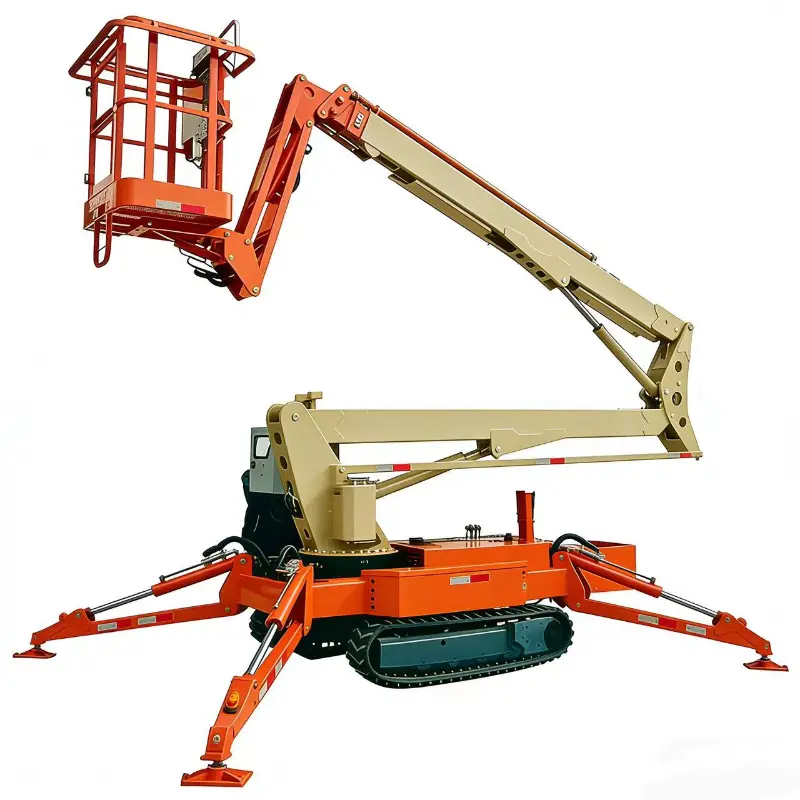

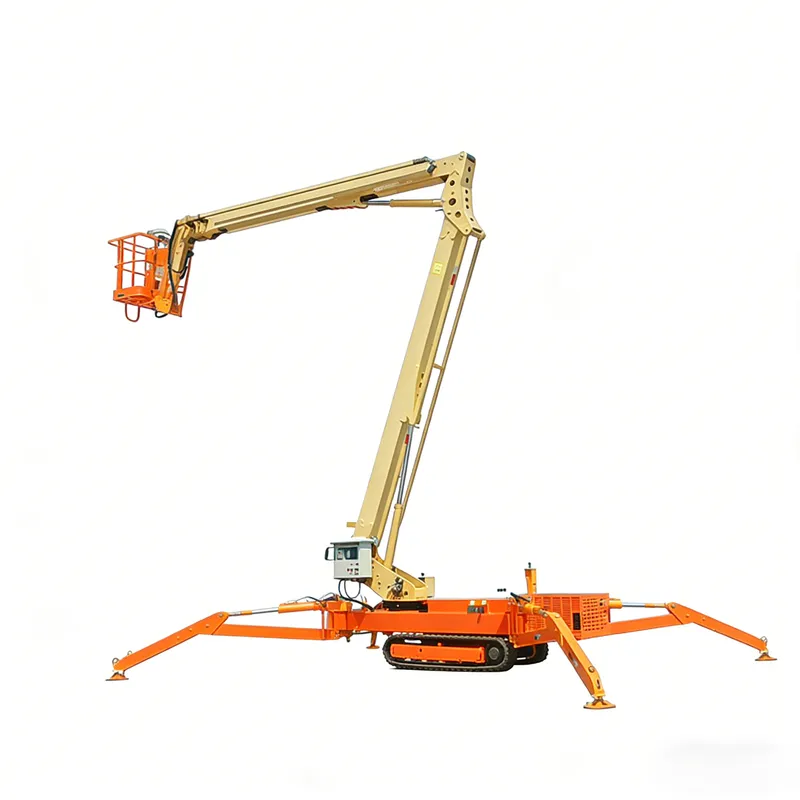

Tracked boom lifts use rubber or steel tracks to deliver excellent traction and low ground pressure, ensuring stable operation on soft or uneven terrain.
Product and technical features:
1.The machine is equipped with overload, over-limit, and tilt protection functions
2.Fault emergency lowering system
3.Touch LCD display control system
4.Emergency stop button; an action buzzer and horn are equipped during operation
| Technical parameters | ETBL-10 | ETBL-12 | ETBL-14 | ETBL-16 | ETBL-18 | ETBL-20 |
| Maximum Working Heigh | 12M | 14m | 16M | 18M | 20M | 22M |
| Maximum Platform Height | 10M | 12m | 14m | 16M | 18M | 20M |
| Load Capacity | 200kg | 200kg | 200kg | 200kg | 200kg | 200kg |
| Working Radius | 5.5M | 7.5M | 8.5M | 10.5M | 11M | 11M |
| Rotation Range | 359°/360° | 359°/360° | 359°/360° | 359°/360° | 359°/360° | 359°/360° |
| Platform Dimensions | 0.9×0.7×1.1M | 0.9×0.7×1.1M | 0.9×0.7×1.1M | 0.9×0.7×1.1M | 0.9×0.7×1.1M | 0.9×0.7×1.1M |
| Retracted Length | 4.7m | 4.7m | 5.65m | 5.7M | 6.1M | 6.7m |
| Retracted Width | 1.3m | 1.3m | 1.3m | 1.35m | 1.3M | 1.5m |
| Retracted Height | 2 m | 2.1m | 2.2 m | 2.2 m | 2.25m | 2.25m |
| Total Weight | 2400kg | 2500kg | 2800kg | 3000kg | 4200kg | 4500kg |
| drive system | Diesel/Gasoline/DC/AC | Diesel/Gasoline/DC/AC | Diesel/Gasoline/DC/AC | Diesel/Gasoline/DC/AC | Diesel/Gasoline/DC/AC | Diesel/Gasoline/DC/AC |
| Rotating basket | Optional | Optional | Optional | Optional | Optional | Optional |
| assisted walking | Optional | Optional | Optional | Optional | Optional | Optional |
| remote control | Optional | Optional | Optional | Optional | Optional | Optional |
| Color | Optional | Optional | Optional | Optional | Optional | Optional |

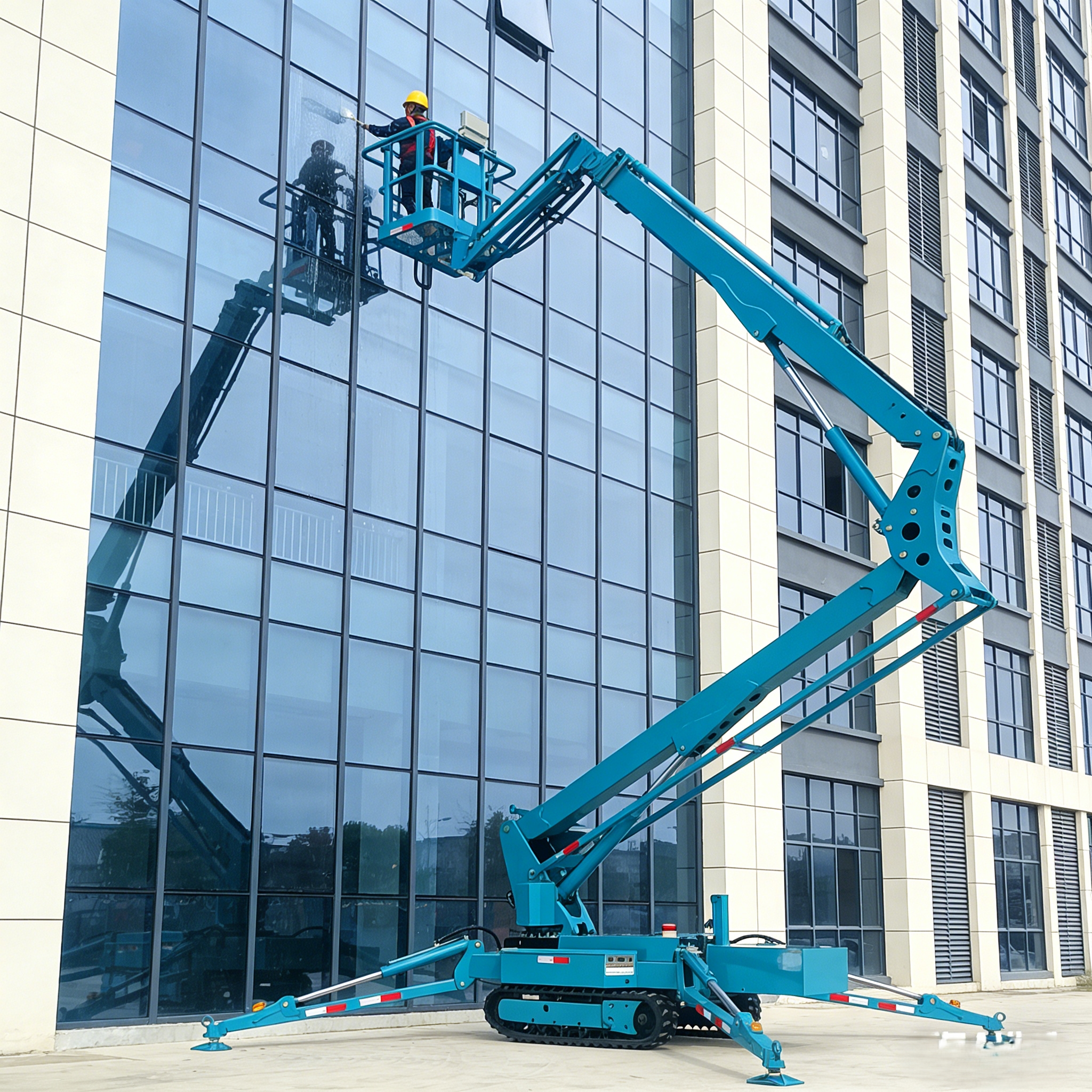

1.In construction and interior/exterior renovation and maintenance, it excels in high-rise facade work, curtain wall cleaning and repair, atrium installations in malls, office buildings, hotels, mixed-use developments, and sports venues, as well as ceiling, MEP piping, lighting fixture replacement, and signage installation during retrofits or commercial refurbishments. Typical tasks include high-level window washing, exterior painting/coating, facade sealing, interior wiring, and ceiling panel placement.

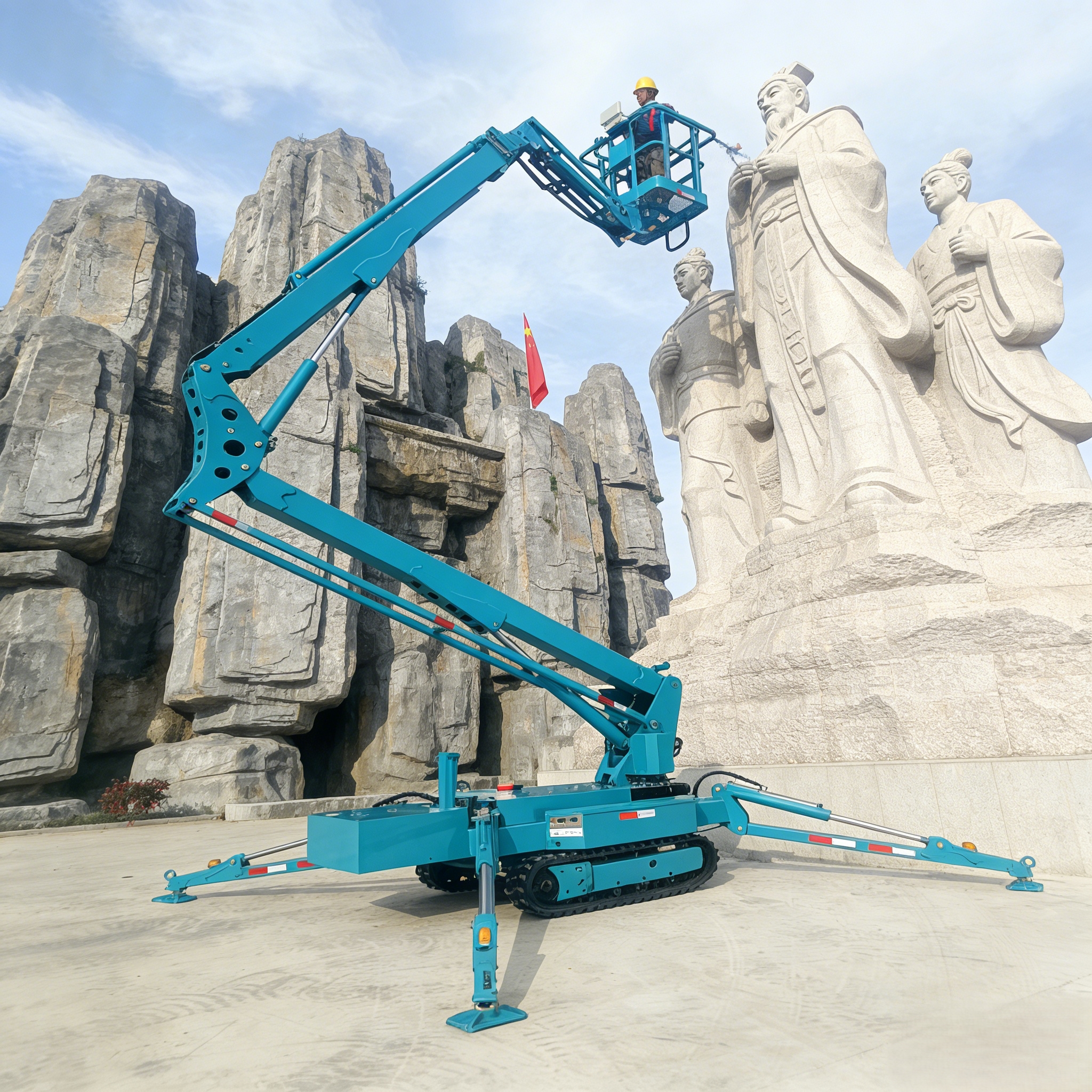

2.In landscaping, arboriculture, and grounds maintenance, it supports large tree pruning, transplanting, pest control, park/scenic area/cemetery/villa landscape lighting installation, water feature servicing, and rockery or sculpture perimeter work. Operators reach canopy tops or elevated features with ease.

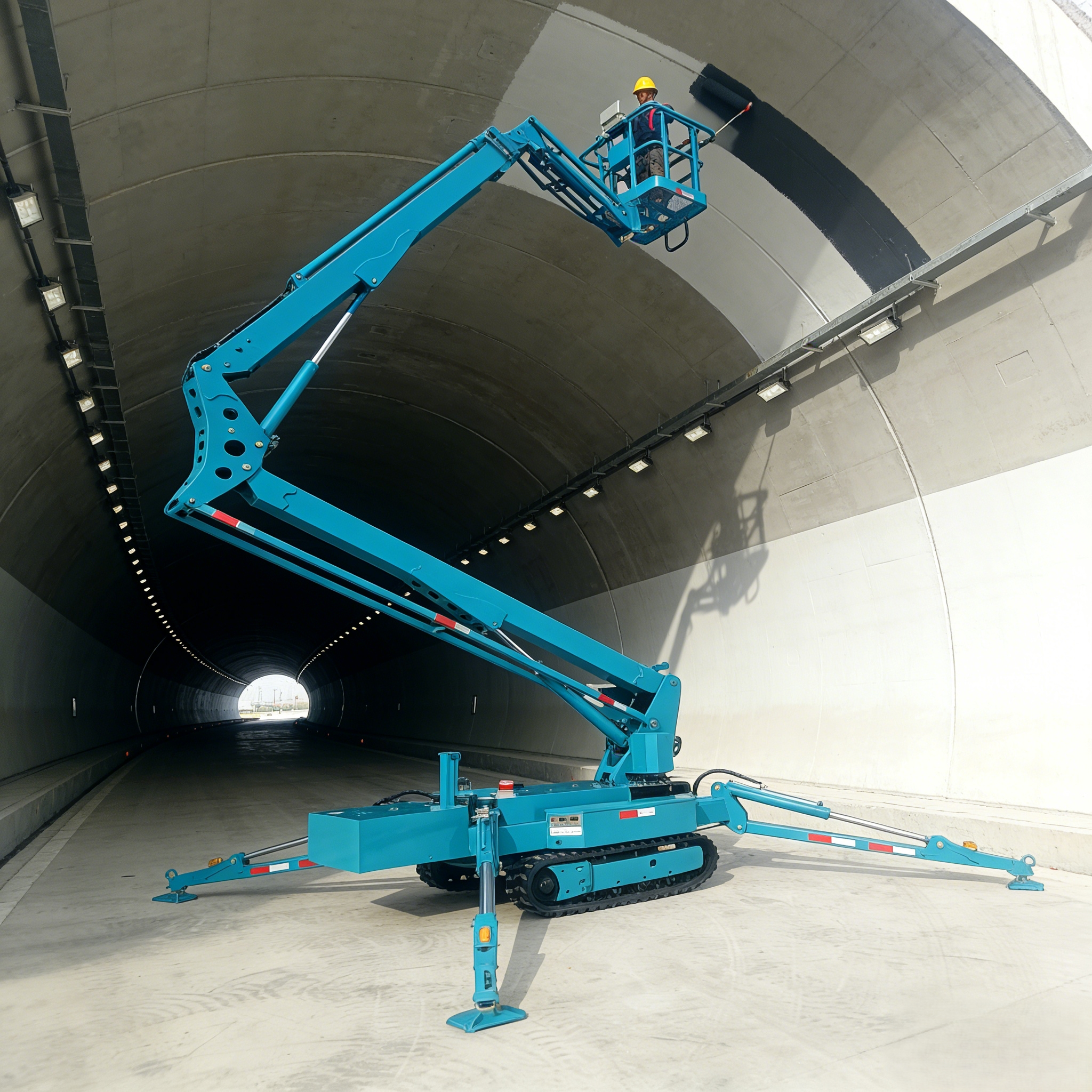

3.In municipal infrastructure and public facilities, it facilitates metro/high-speed rail stations, airport terminals, bridges/tunnels, utility corridors, and stadium/arena lighting, HVAC, and fire protection system inspection/installation. Common applications include overhead fixture replacement, structural underside inspections, tunnel coating/cabling, and elevated signage.

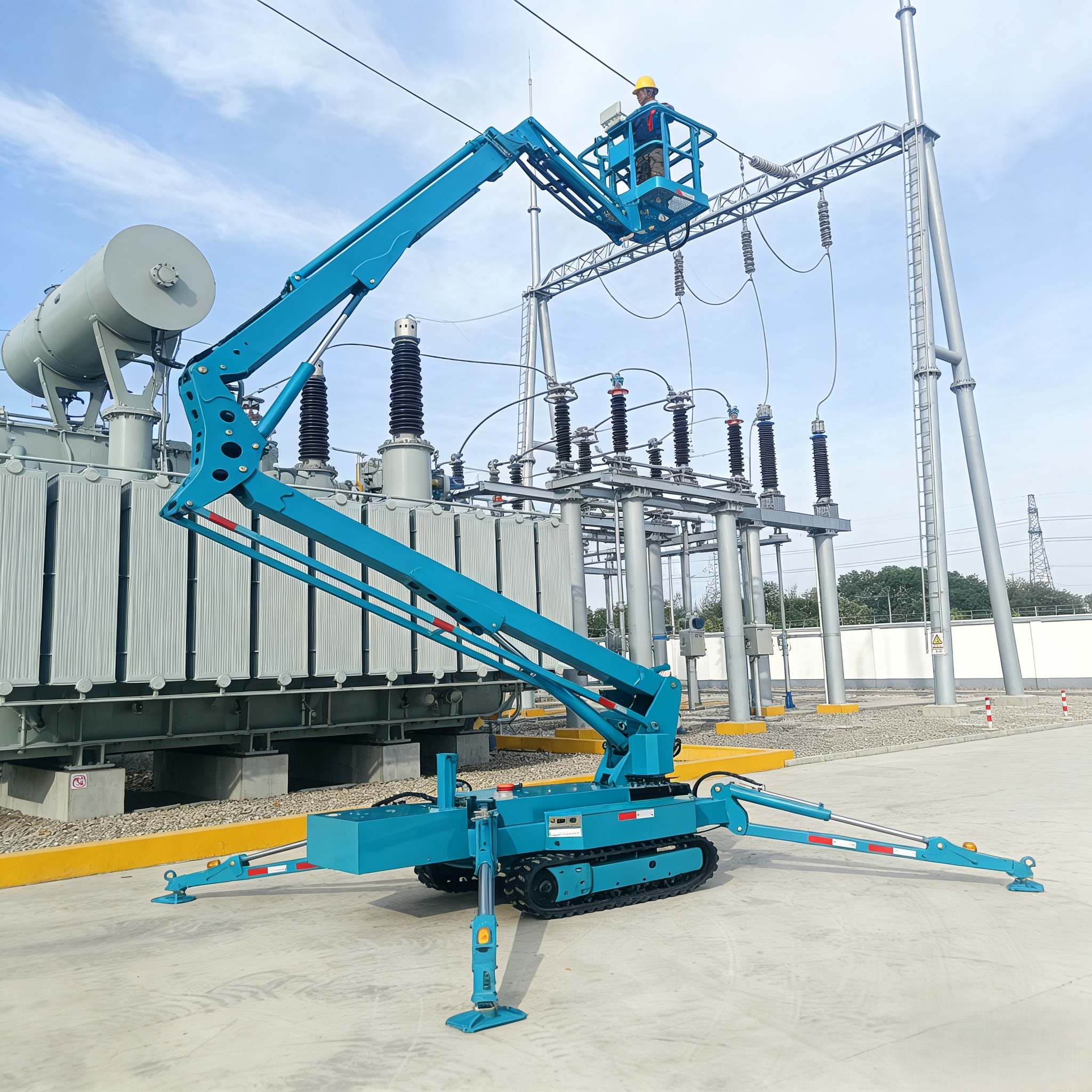

4.In power and energy sector maintenance, it is ideal for indoor/outdoor substation inspections, transmission line/pole work, wind/solar array support tasks, and power plant piping/busbar installation. Battery-electric variants are preferred in energized or enclosed areas.

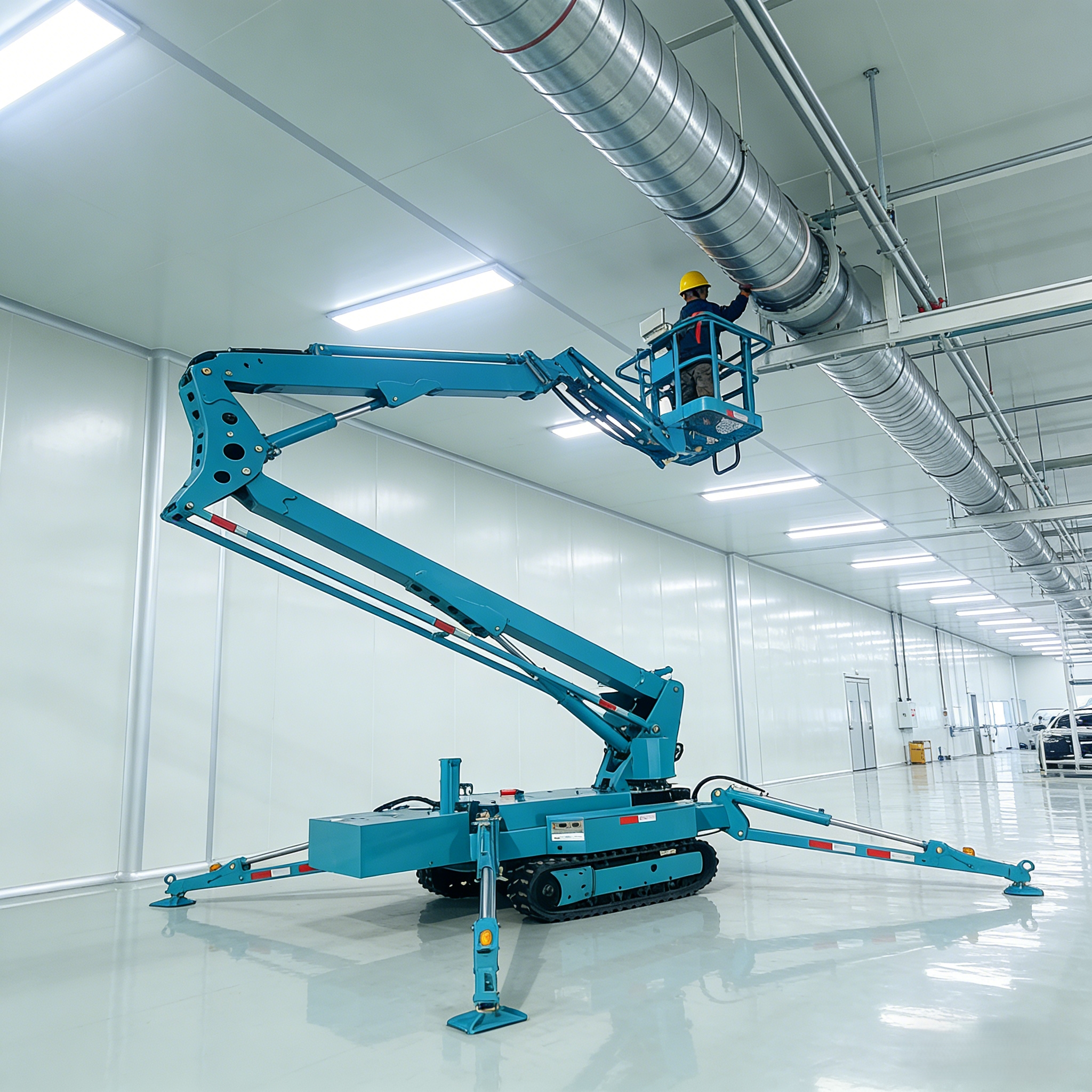

5.In industrial plant and facility maintenance, it supports overhead piping, ceiling, crane rail, and lighting system servicing in automotive, chemical, pharmaceutical cleanrooms, or equipment-dense areas.

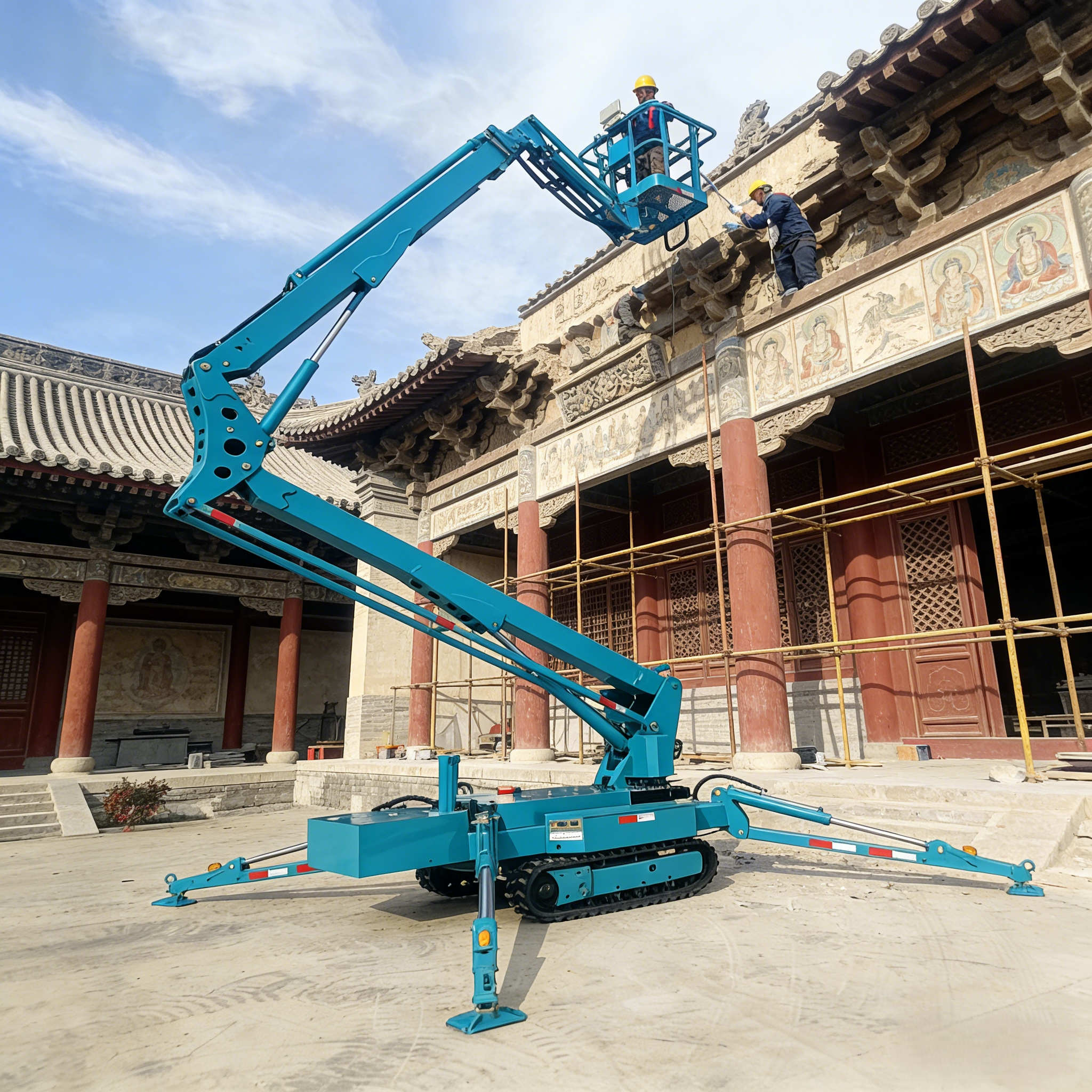

6.In heritage conservation, museums, science centers, and art venues, it aids historic building restoration, exhibit hall ceiling/lighting installation, large sculpture/artwork positioning, and artifact surface cleaning.

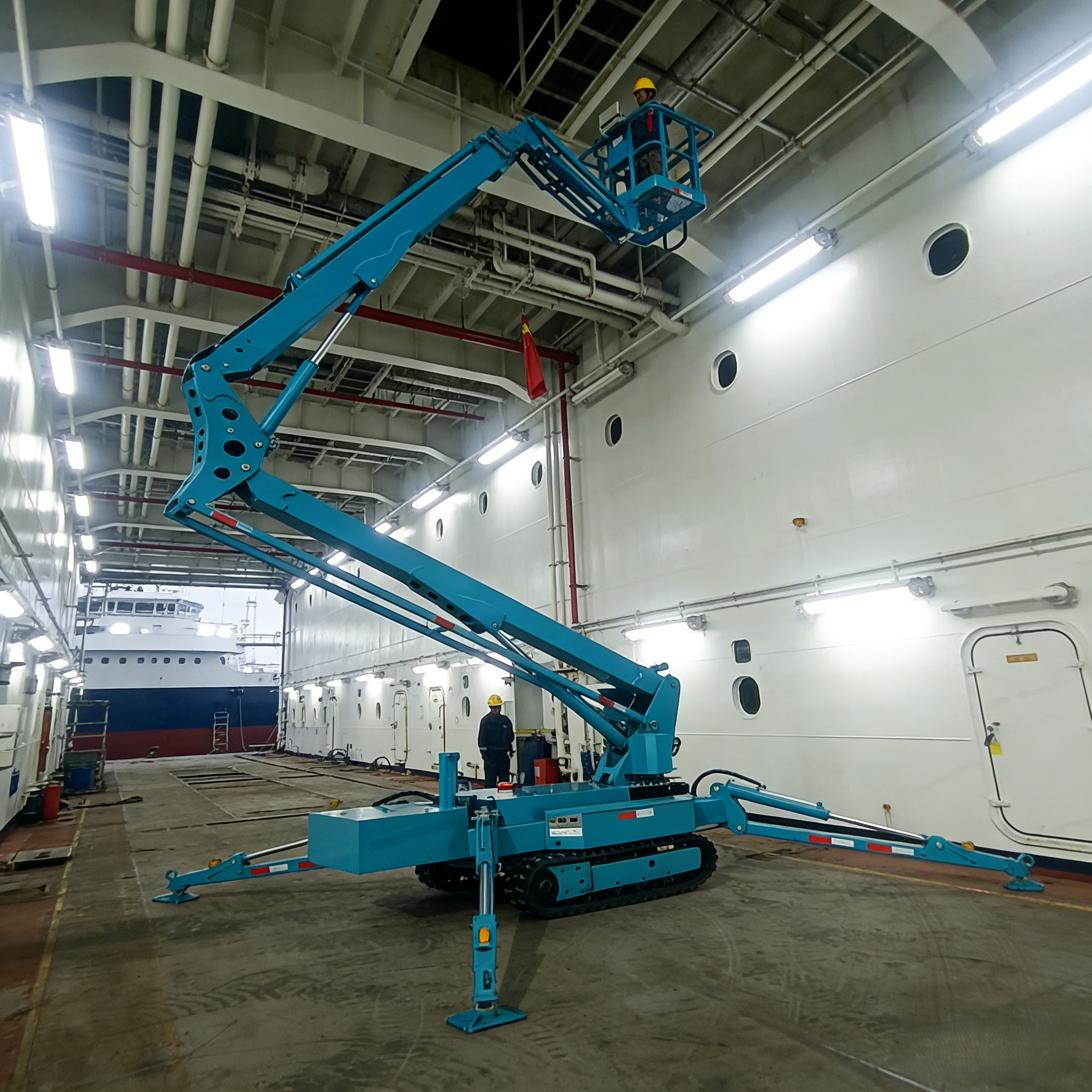

7.In other specialized sectors, it serves film/TV set rigging and lighting, shipyard/vessel interior maintenance, aerospace ground facility work, outdoor advertising/signage installation, and professional tree care services. Select models support add-on tools for spraying, welding, or light lifting.
